SECTION 1
GENERAL
LOCATION AND FUNCTION OF CONTROLS
[FRONT PANEL]
1234 5 678
9
!º
!¡
!™!£!¢!∞!§!¶
!•
!ª@º
@¡
@™
@£
@¢
@∞
@§
@¶
@•

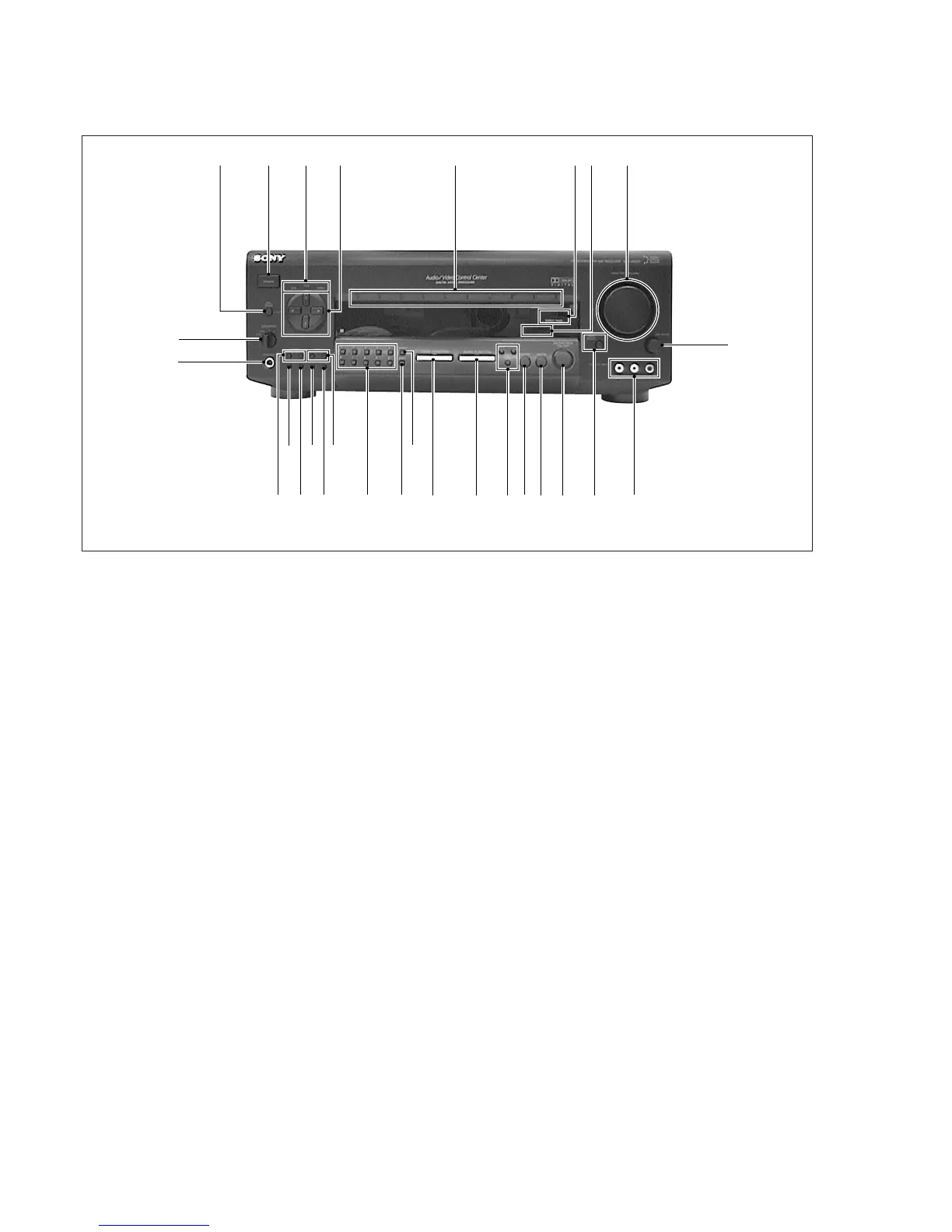

Photo : STR-DE915 (US)
1 DPC MODE button
2 POWER switch
3 SUR, TONE, INDEX indicators
4 Digital processing control buttons
5 Function indicators
6 DIRECT PASS indicator
7 DISCRETE indicator
8 MASTER VOLUME control
9 BALANCE control
!º VIDEO 3 INPUT jack
!¡ BASS BOOST button/indicator
!™ SOUND FIELD ON/OFF button
!£ MODE button
!¢ GENRE button
!∞ DIRECT PASS, SET UP, INPUT MODE buttons
!§ AUDIO FUNCTION buttons
!¶ VIDEO FUNCTION buttons
!• DIRECT button (STR-DE915)
!ª SHIFT button (STR-DE915)
@º Numeric buttons (STR-DE915)
@¡ PRESET TUNING +, – buttons (STR-DE915)
@™ MEMORY button (STR-DE915)
@£ DISPLAY button
@¢ FM/AM button (STR-DE915)
@¢ DIMMER button (TA-V909/VE910)
@∞ FM MODE button (STR-DE915)
@§ TUNING +, – buttons (STR-DE915)
@¶ PHONES jack
@• SPEAKERS switch
