Sony STR-DE915 - Rear Panel Connections; STR-DE915 Rear Panel Layout; TA-V909;VE910 Rear Panel Layout

— 5 —

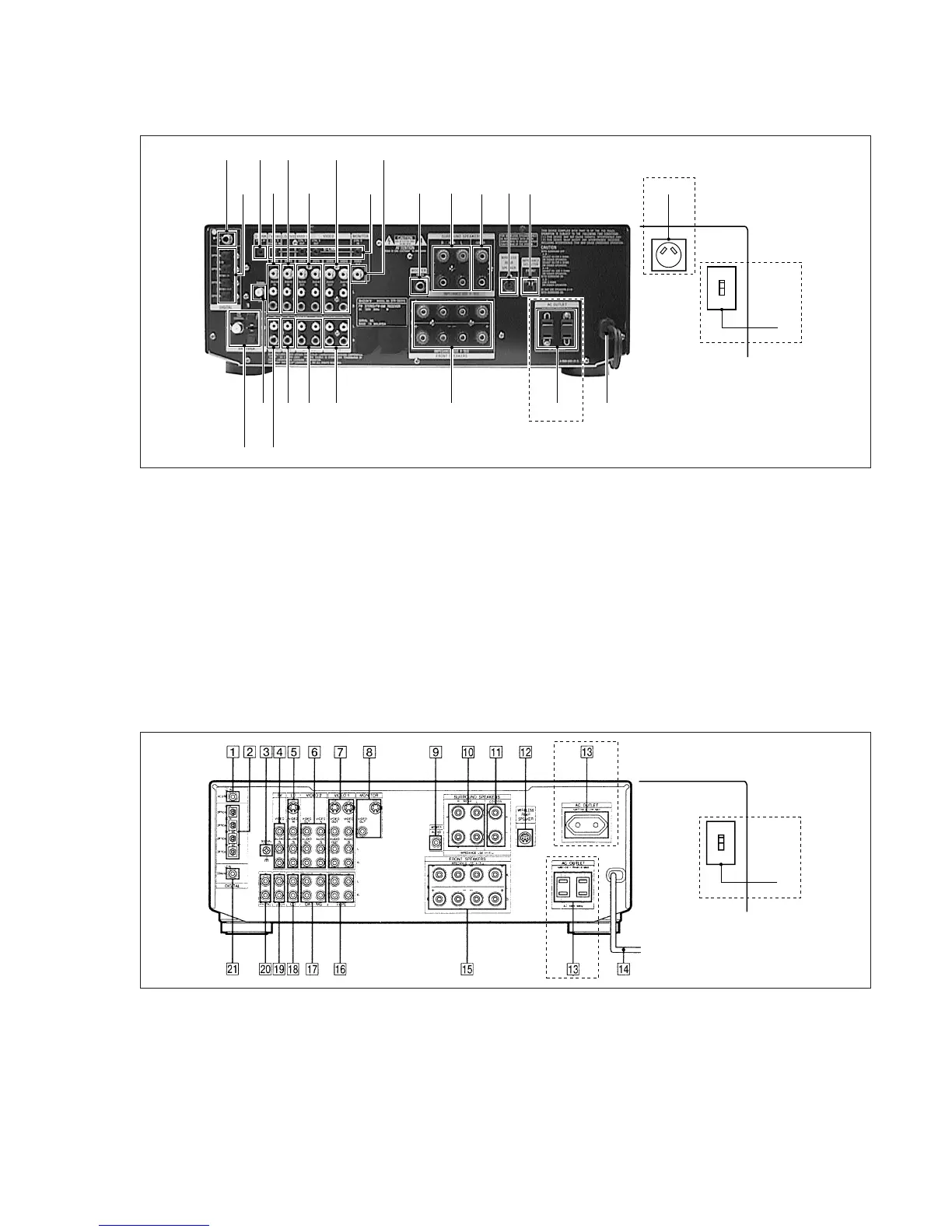

[REAR PANEL]
STR-DE915 MODEL
1
2
3
4
5
6
7
8
9
!º !¡ !™ !£ !¢
!∞
!§!¶!•!ª@º
@¡@£
@™
!§
Australian
Model
US, Canadian,
PX Model
PX Model
@¢
1 LD/DVD IN AC-3 RF
2 LD/DVD IN/CD/IN/DAT/MD IN/OUT OPTICAL
3 S-LINK CTRL A1 (US, Canadian model)
4 TV/DBS (US, Canadian model)
5 LD/DVS (US, Canadian model)
5 LD (PX, Australian model)
6 VIDEO 2 (US, Canadian model)
7 VIDEO 1
8 CTRL S (US, Canadian model)
9 MONITOR
!º WOOFER
!¡ SURROUND SPEAKERS (REAR)
!™ SURROUND SPEAKERS (CENTER)
!£ WIRELESS REAR SPEAKER
!¢ IMPEDANCE SELECTOR
!∞ AC power cord
!§ AC OUTLET (Outlet shape and position varies
according to destination)
!¶ FRONT SPEAKERS (A/B)
!• TAPE
!ª DAT/MD
@º CD
@¡ PHONO
@™ y SIGNALGND
@£ ANTENNA (AM/FM)
@¢ VOLTAGE SELECTOR (PX model)
TA-V909/VE910 MODEL
1 DVD/LD IN AC-3 RF
2 DVD/LD IN/CD IN/DAT/MD IN/OUT OPTICAL
3 y SIGNALGND
4 TV
5 LD/DVD
6 VIDEO 2
7 VIDEO 1
8 MONITOR
9 WOOFER
!º SURROUND SPEAKERS (REAR)
!¡ SURROUND SPEAKERS (CENTER)
!™ WIRELESS REAR SPEAKER
!£ AC OUTLET
!¢ AC power cord
!∞ FRONT SPEAKERS (A/B)
!§ TAPE
!¶ DAT/MD
!• CD
!ª TUNER
@º PHONO
@¡ DVD/LD IN COAXIAL
@™ VOLTAGE SELECTOR (E model)
Photo : STR-DE915 (US)
VE910
Model
V909
Model
E Model
@™
* : DVD (STR-DE915/TA-V909 Model)
