Sony STR-DE915 - Printed Wiring Boards - Amplifier;Power Supply; Amplifier and Power Supply Printed Wiring Boards

STR-DE915/TA-V909/VE910

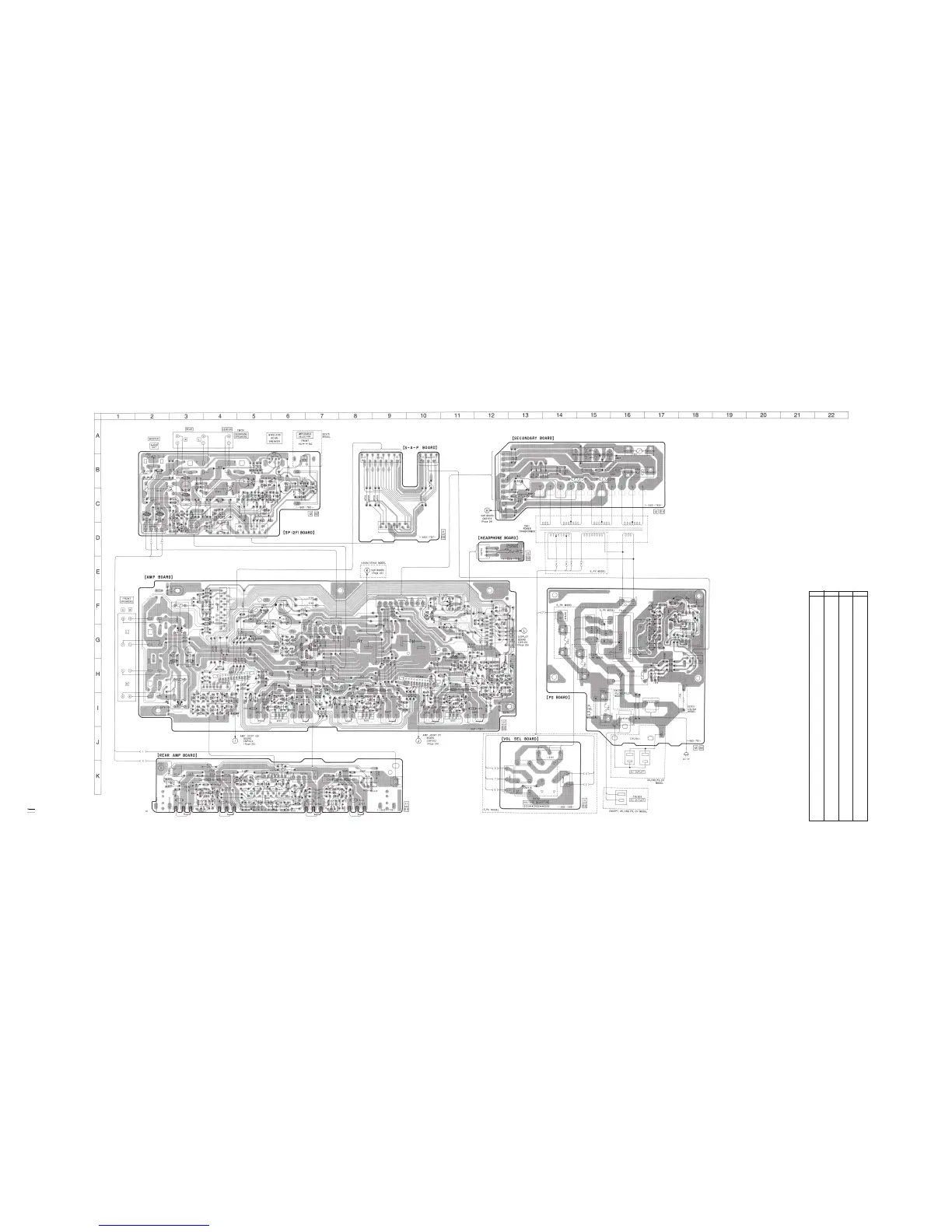

2-12. PRINTED WIRING BOARD — AMP, POWER SUPPLY SECTION —
— 43 — — 44 — — 45 — — 46 — — 47 —
Note :
• : parts extracted from the component side.
•
: pattern on the side which is seen.
• Abbreviation
CND : Canadian
CH : Chinese
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D501 I-5
D502 I-5
D503 I-6
D504 I-6
D505 I-4
D506 I-3
D507 G-12
D508 G-12
D512 G-13
D543 D-4
D545 F-3
D546 I-2
D547 H-13
D548 I-12
D549 H-12
D551 I-10
D552 I-10
D553 I-11
D554 I-11
D555 I-4
D556 I-3
D601 I-7
D602 I-7
D603 I-9
D604 I-9
D605 C-5
D606 C-6
D607 C-5
D608 F-10
D611 G-13
D647 G-11
D648 G-6
D649 B-3
D651 G-13
D701 K-3
D702 K-4
D703 K-4
D704 L-4
D705 D-3
D706 C-3
D707 C-6
D711 G-13
D716 G-13
D749 B-2
D751 K-7
D752 K-8
D753 L-8
D754 L-8
D801 B-15
D802 B-13
D803 B-13
D804 B-14
D805 B-14
D806 C-13
D807 H-12
D851 B-15
D901 G-17
D902 G-17
D903 G-17
D904 G-17
D905 G-17
D906 G-17
D907 H-17
IC701 L-5
IC801 F-5
IC803 G-6
IC901 G-18
Q504 I-6
Q505 I-6
Q506 I-5
Q507 I-6
Q508 I-7
Q509 I-4
Q510 I-3
Q511 I-3
Q544 C-4
Q546 F-4
Q547 I-13
Q548 H-13
Q549 H-12
Q554 I-11
Q555 I-11
Q556 I-10
Q557 I-11
Q558 I-12
Q559 I-4
Q560 I-3
Q561 I-3
Q596 F-4
Q604 I-8
Q605 I-8
Q606 I-8
Q607 I-9
Q608 I-9
Q609 B-6
Q610 F-10
Q610 C-6
Q611 C-5
Q612 G-6
Q613 G-6
Q614 H-11
Q615 G-6
Q616 G-6
Q617 H-11
Q618 H-11
Q645 B-5
Q701 K-5
Q703 K-5
Q704 K-4
Q705 L-3
Q706 L-3
Q707 L-4
Q708 K-2
Q709 C-3
Q710 C-3
Q745 C-3
Q748 C-7
Q754 K-7
Q755 L-7
Q756 L-7
Q757 L-8
Q758 K-8
Q801 H-12
Q901 H-17
Q902 G-18
