35
US
Getting Started
5: Connecting the antennas (aerials)

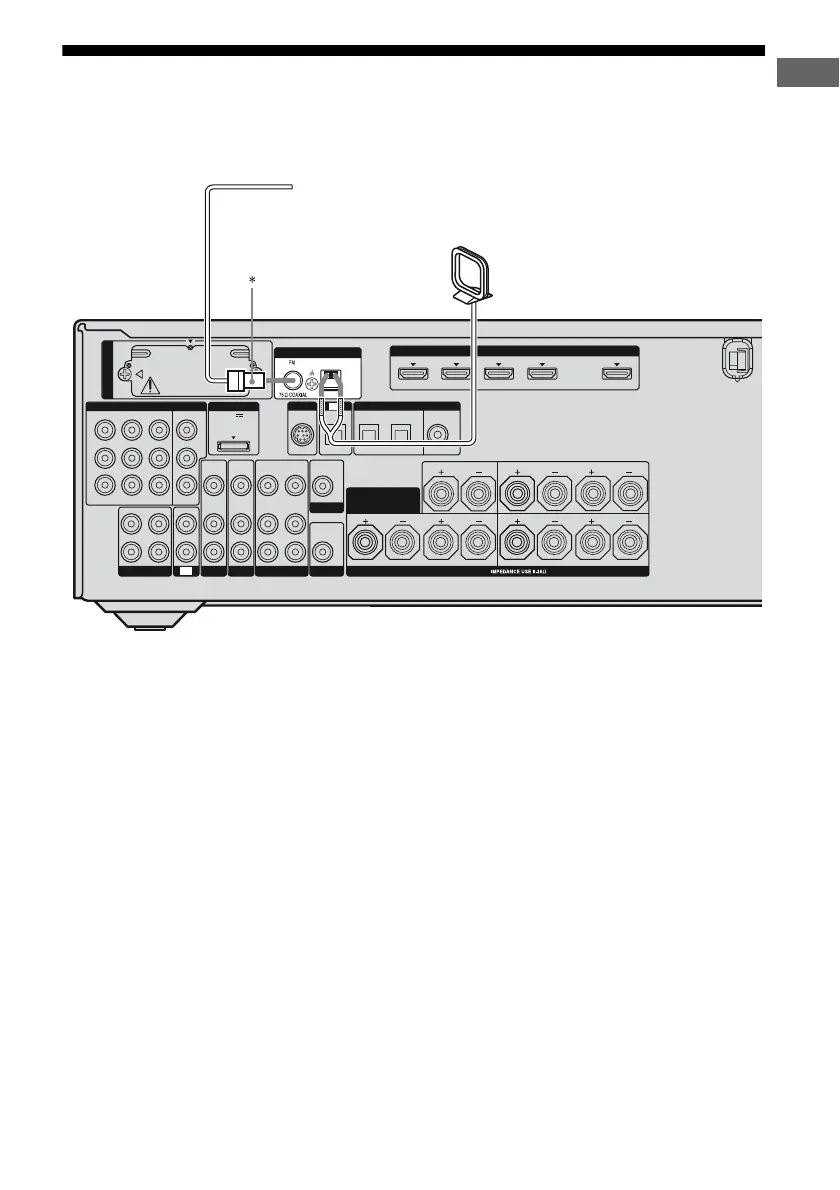

Connect the supplied AM loop antenna (aerial) and FM wire antenna (aerial).
Before connecting the antennas (aerials), be sure to disconnect the AC power cord (mains lead).
* The shape of the connector varies depending on the area code of this receiver.
Notes
• To prevent noise pickup, keep the AM loop antenna (aerial) away from the receiver and other components.
• Be sure to fully extend the FM wire antenna (aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
LR
VIDEO
OUT
MONITOR
L
R
DIGITAL
(ASSIGNABLE)
DC5V
0.7A MAX
HDMI
ANTENNA
DMPORT
IN 4
ASSIGNABLE (INPUT ONLY)
IN 3
IN 2
IN 3
IN 1
OUT
AM
Y
P
B
/
C
B
COMPONENT VIDEO
OUT
IN
P
R
/
C
R
IN 2
IN 1
MONITOR
OUT
SA-CD/CD/CD-R
VIDEO 1
IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
OPTICAL IN
AUDIO
IN
VIDEO
IN
SUBWOOFER
AUDIO
IN
VIDEO
IN
BD
LR
L
R
SPEAKERS
SAT IN BD IN
DVD IN
OPTICAL
CENTER
FRONT A
COAXIAL
ASSIGNABLE (INPUT ONLY)
SURROUND BACK/
FRONT B/
BI-AMP
TV
SIRIUS
LR
SURROUND
(for AUDIO)
EZW-T100
FM wire antenna (aerial) (supplied)
AM loop antenna (aerial) (supplied)
