Connections
3: Connecting the TV
You can watch the selected input image when you connect the HDMI TV OUT or MONITOR OUT
jack to a TV. You can operate this receiver using a GUI (Graphical User Interface).
Before connecting cords, be sure to disconnect the AC power cord (mains lead).

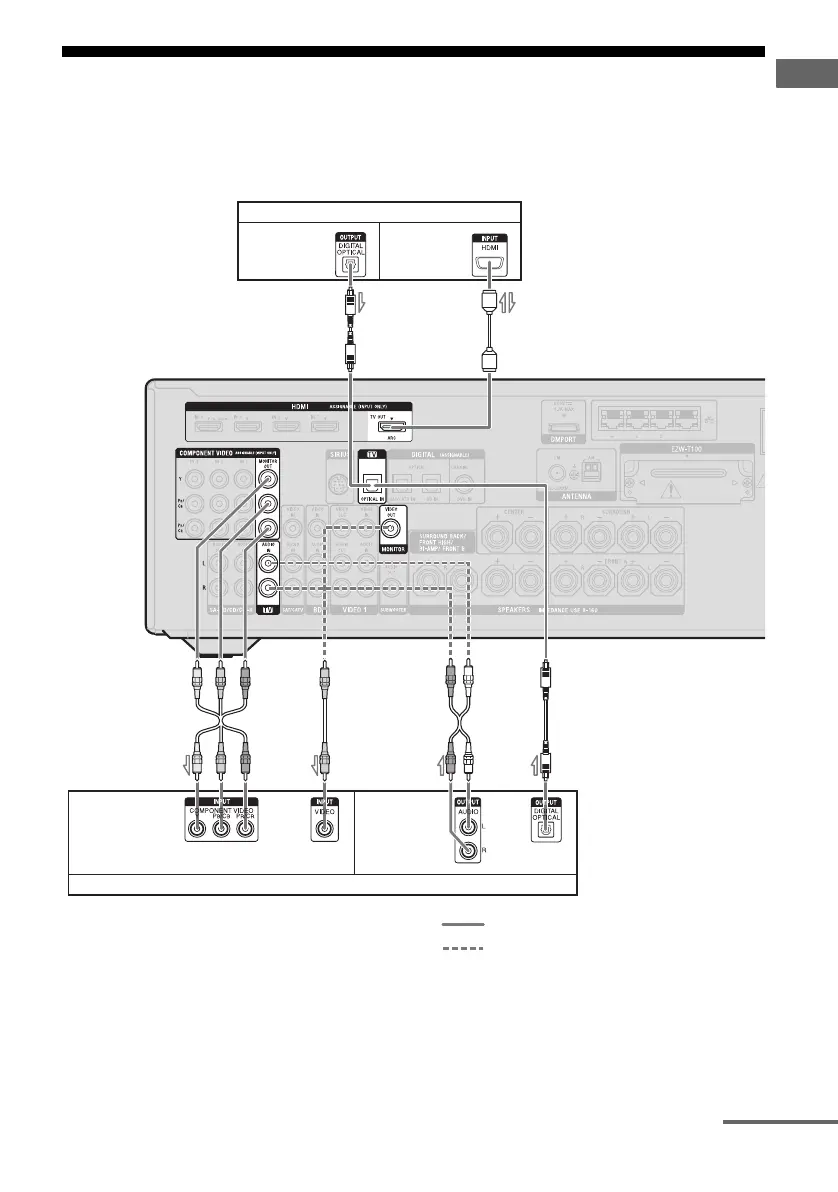

ARC
TV with an HDMI jack
B
Audio signals
A*
C
**
Audio/video
signals
DEA
Video signals Audio
signals
or or
TV without an HDMI jack
A Optical digital cord (not supplied)
B HDMI cable (not supplied)
Sony recommends that you use an HDMI-
authorized cable or Sony HDMI cable.
C Component video cord (not supplied)
D Video cord (not supplied)
E Audio cord (not supplied)
Recommended connection
Alternative connection
