Sony STR-DN2010 - Rear Panel

12
GB
D:\NORM'S JOB\SONY HA\SO0071\STR-DN2010\GB\GB03DES_STR-DN2010-CEL.fm masterpage: Left
STR-DN2010
4-182-049-11(1)

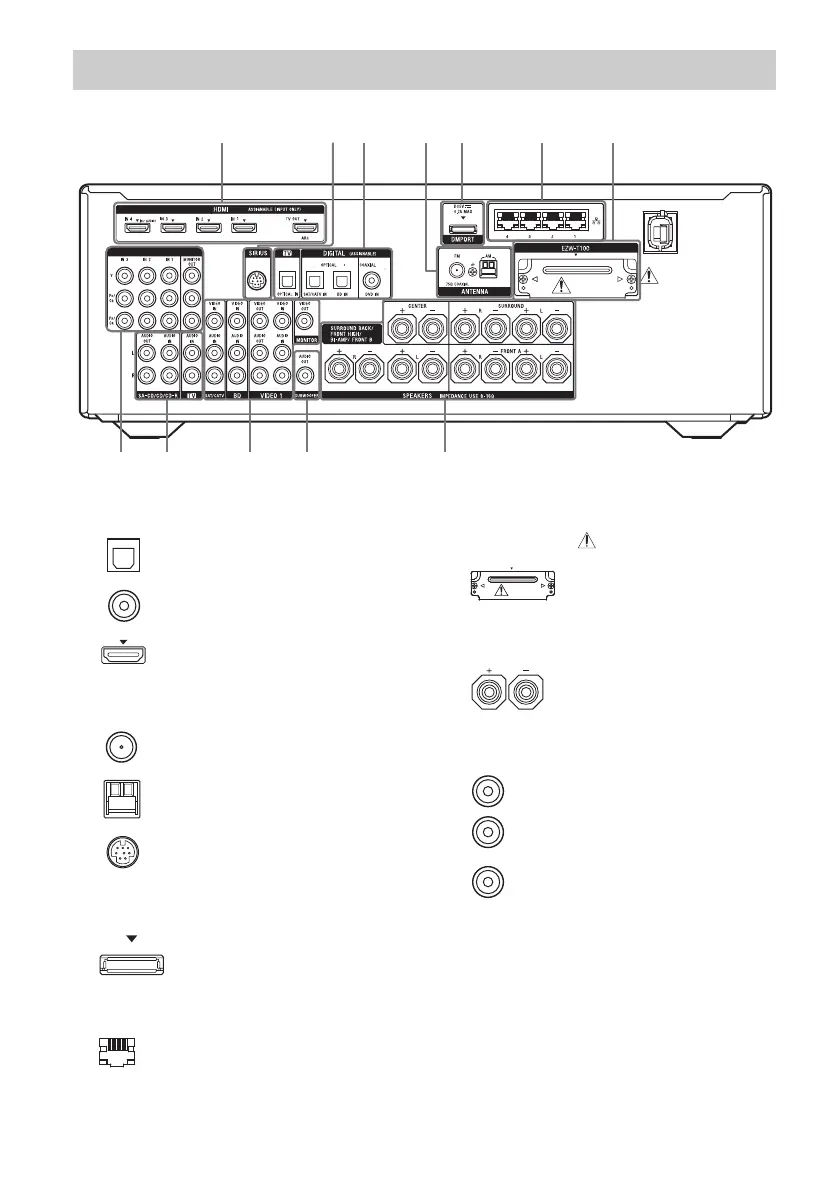

Rear panel
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
53 4
9 87 7 6
21 2 1
A DIGITAL INPUT/OUTPUT section
OPTICAL IN jacks (page 23, 29,
30, 31)
COAXIAL IN jack (page 29, 30,
31)
HDMI IN/OUT* jacks (page 23,
26)
B ANTENNA section
FM ANTENNA jack (page 35)
AM ANTENNA terminals
(page 35)
SIRIUS jack (USA model only)
(page 66)
C DMPORT section
DMPORT jack (page 34)
D NETWORK section
LAN ports (switching hubs)
(page 38)
E S-AIR section (page 36)
EZW-T100 slot
(with cover)
CAUTION
Please do not remove the slot
cover until you want to install
the wireless transmitter.
F SPEAKERS section (page 21)
G AUDIO INPUT/OUTPUT section
AUDIO IN/OUT jacks
(page 23, 34)
AUDIO OUT jack (page 21)
White (L)
Red (R)
Black
