Sony STR-KM7600 - Case; 2 Disassembly; Disassembly Flow

STR-KM7600
4
SECTION 2
DISASSEMBLY

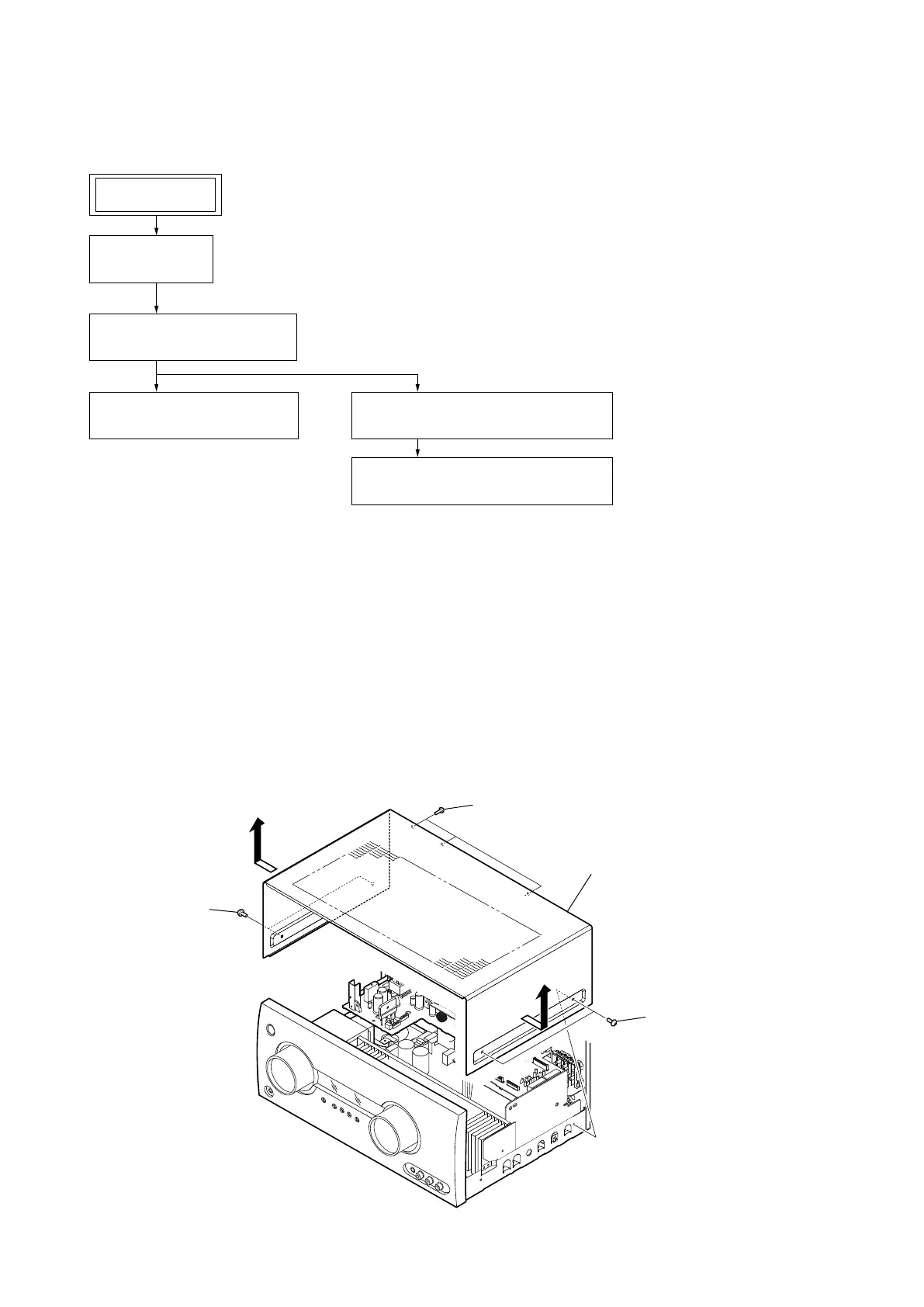

• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. CASE
2-2. CASE
(Page 4)
2-3. BACK PANEL BLOCK
(Page 5)
2-4. FRONT PANEL BLOCK
(Page 5)
2-5. MAIN BLOCK
(Page 6)
2-6. HEATSINK BLOCK, MAIN BOARD
(Page 6)
SET
1
three screws
(BVTP3
u
8)
4
case
2
two screws
(BVST4
u
8)
2
two screws
(BVST4
u
8)
3
3
