Sony STR-KM7600 - Back Panel Block; Front Panel Block

STR-KM7600
5

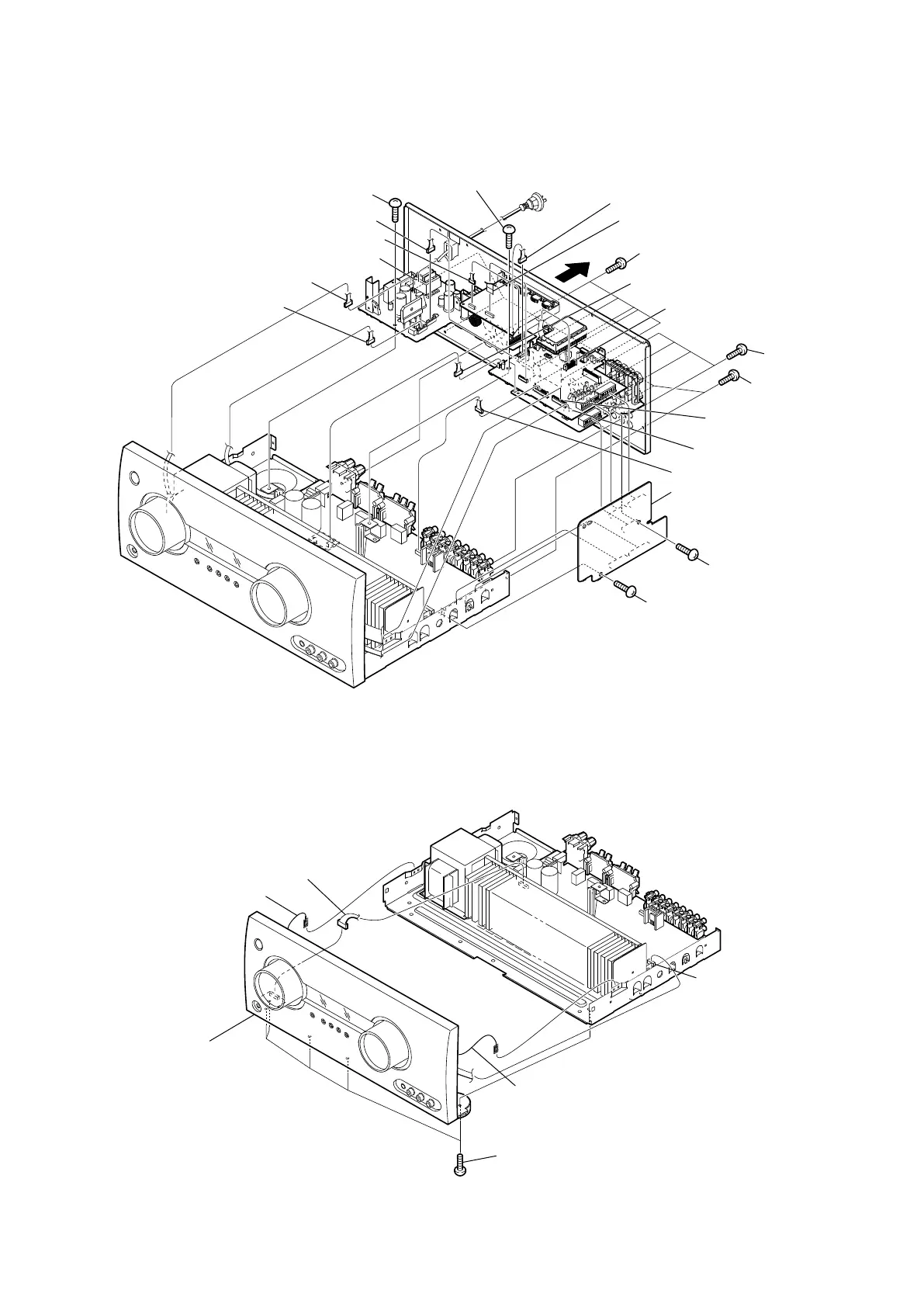

2-3. BACK PANEL BLOCK
2-4. FRONT PANEL BLOCK
ql
1 five screws
(+BVTP 3 u 8)
6 two screws
(+BVTP 3 u 8)
7 one screw
(+BVTP 3 u 8)
2 four screws
(+BVTP 3 u 8)
3 five screws
(+BVTP 3 u 8)
4 one screw
(+BVTP 3 u 8)
5 one screw
(+BVTP 3 u 8)
qa wire (flat type) (9 core)
(CN2204, CN2205)
qd wire (flat type) (21 core)
(CN2200)
ql CNP904 (4P)
qk CN905 (5P)
qj CNP923 (2P)
qh CNP922 (2P)
qg CN3510 (5P)
q; CN2102 (9P)
9 CN2103 (4P)
qs CN2100 (7P)
qf CNP201 (3P)
w; CONNECTION Board
8 wire (flat type) (17 core)
(CN3511)
1 CNP790 (4P)
2 CN558 (6P)
4
one lead
5
FIVE SCREWS
(+BVTP 3 x 8)
3
one lead
6
front panel section
