Sony STR-KM7600 - Back Panel Section

60
STR-KM7600

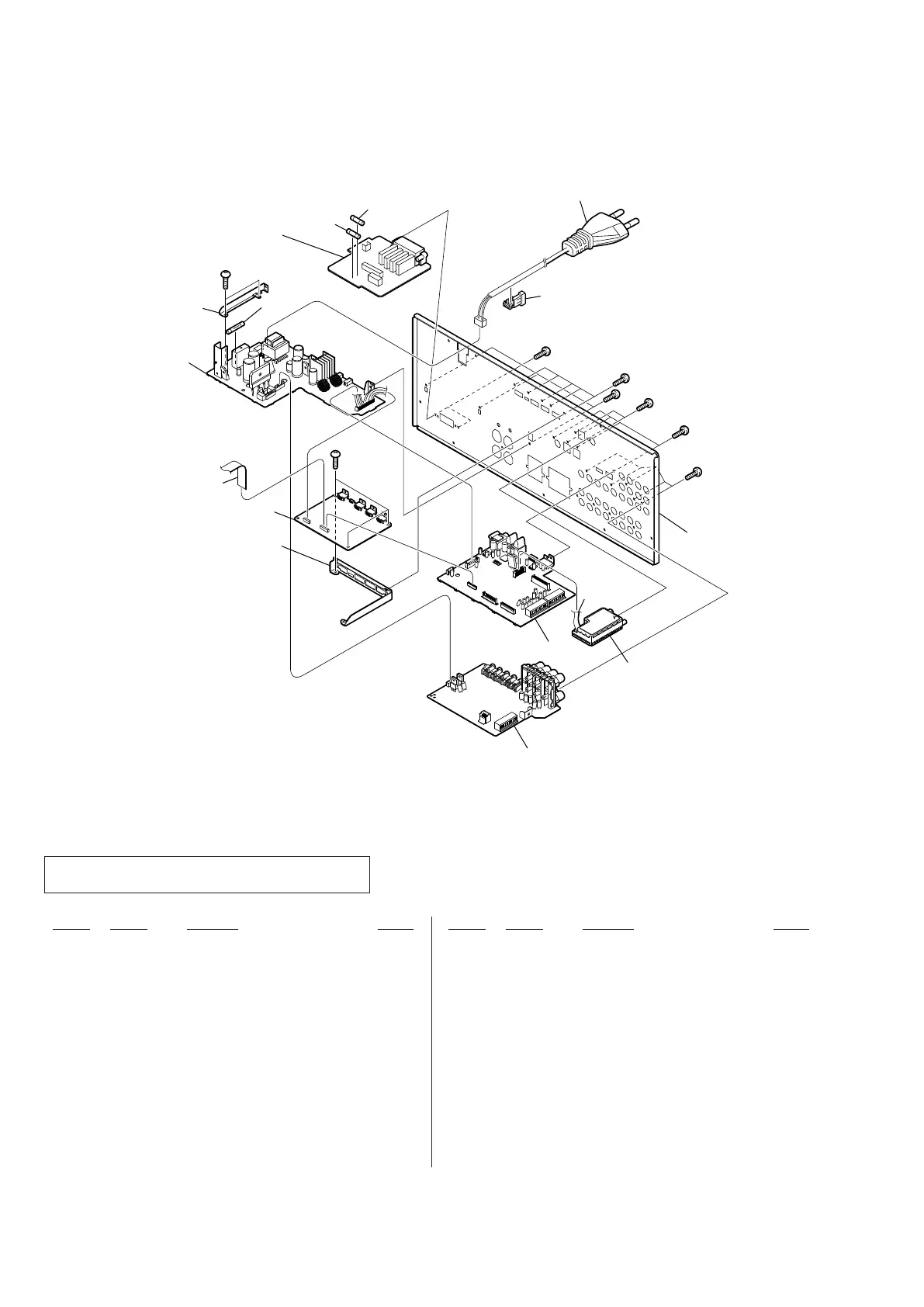

6-2. BACK PANEL SECTION
51 A-1660-444-A STANDBY DCDC BOARD, COMPLETE
(EXCEPT EA)
51 A-1660-445-A STANDBY DCDC BOARD, COMPLETE (EA)
52 A-1701-988-A VIDEO BOARD, COMPLETE
0
53 1-777-071-83 CORD, POWER (SAF)
0
53 1-833-566-21 POWER-SUPPLY CORD (AUS)
0
53 1-835-078-31 CORD, POWER (EA)
54 3-703-244-21 CORD BUSH (2014)
55 A-1701-082-A DIGITAL BOARD, COMPLETE (AUS)
55 A-1701-990-A DIGITAL BOARD, COMPLETE (SAF)
55 A-1728-607-A DIGITAL BOARD, COMPLETE (EA)
56 A-1786-295-A HDMI PC BOARD, COMPLETE
57 1-828-954-11 WIRE (FLAT TYPE) (9 CORE)
58 1-828-350-51 WIRE (FLAT TYPE) (17 CORE)
0
F910 1-532-506-33 FUSE (T6.3AL/250V) (EA)
0
F911 1-532-464-33 FUSE (T2.5AL/250V) (EA)
0
F920 1-532-465-33 FUSE (T3.15AL/250V) (EXCEPT EA)
TN1 1-693-749-21 TUNER (FM/AM)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
53
54
F920
F911
F910
52
55
57
56
58
51
TN1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
not supplied
(AC SELECT board)
(EA only)
not supplied
not supplied
