STR-KM7600
SECTION 6
EXPLODED VIEWS
1 4-127-215-01 KNOB, VOLUME
2 A-1701-986-A VIDEO 2 BOARD, COMPLETE
3 X-2549-241-1 FRONT PANEL ASSY
4 4-977-358-01 CUSHION
5 3-087-053-01 +BVTP2.6 (3CR)
6 2-580-630-01 SCREW, +BVST 4X8
7 3-285-693-51 CASE
8 1-828-633-51 WIRE (FLAT TYPE) (21 CORE)
9 A-1660-440-A DISPLAY BOARD, COMPLETE
RV101 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(INPUT SELECTOR)
RV102 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
AUS : Australian model
EA : Saudi Arabia model
SAF : South African model

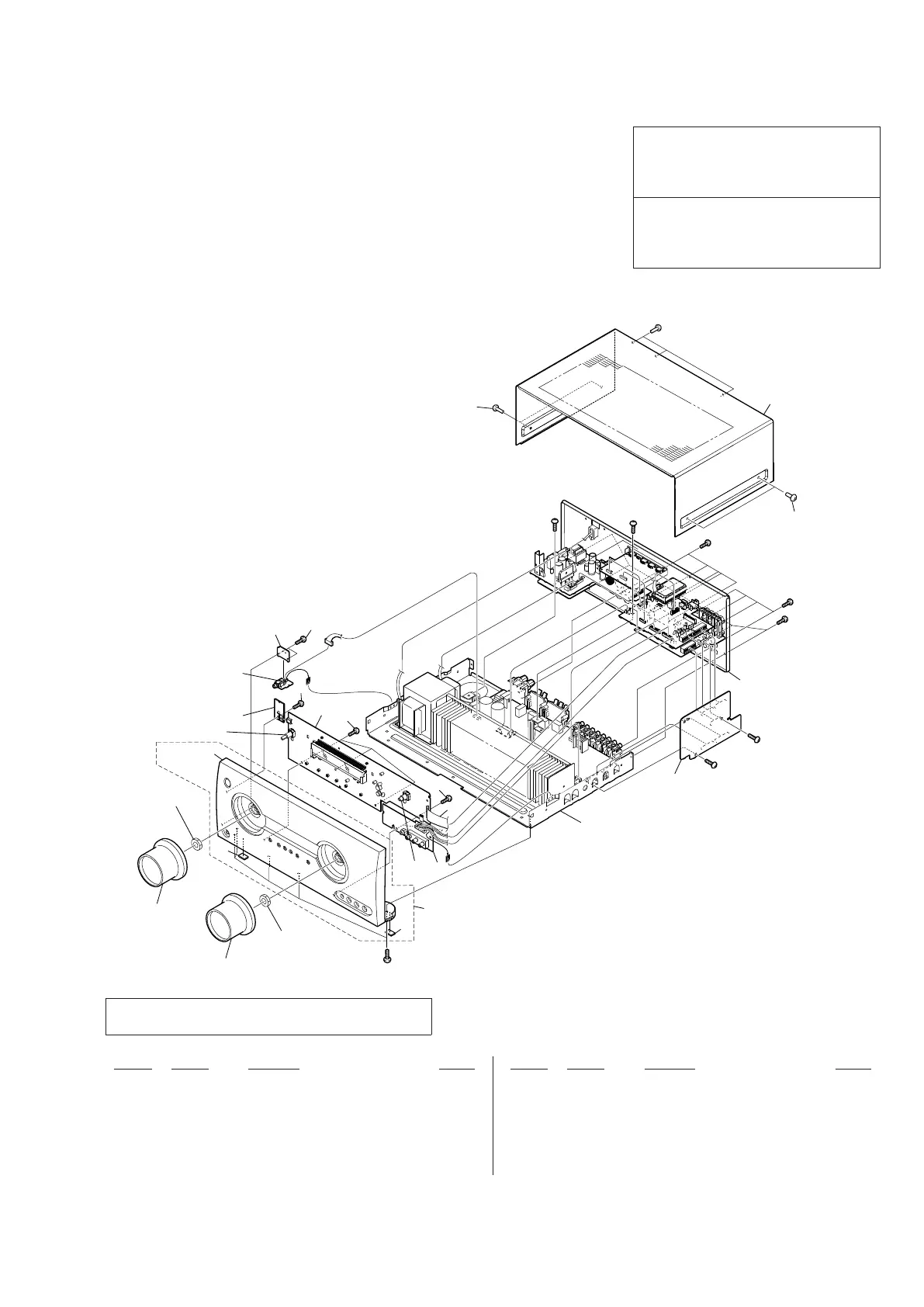

6-1. FRONT PANEL SECTION
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
#1
#1
#1
#1
#1
#1
#1
#1
#1
1
4
4
3
1
5
6
6
7
supplied with
RV102
supplied with
RV101
not supplied
not supplied
(HEADPHONE
board)
2
not supplied
(POWER KEY board)
not supplied
(HP SUPPORT board)
RV102
RV101
back panel section
not supplied
(CONNECTION board)
main section
5
9
5
5
8
