Sony STR-KM7600 - Main Section

61
STR-KM7600
101 4-249-675-01 +BV SUMITITE S 4X6 ROUND
102 3-831-441-11 CUSHION, SARANET
103 3-905-609-01 SCREW (TRANSISTOR)
104 A-1660-431-A MAIN BOARD, COMPLETE
105 4-977-358-01 CUSHION
106 9-913-401-64 SHEET, MICA
0
F403 1-532-506-33 FUSE (T6.3AL/250V)
0
F404 1-532-506-33 FUSE (T6.3AL/250V)
IC604 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC605 6-702-391-01 TRANSISTOR MP1620-OPY-MK
IC606 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC607 6-702-391-01 TRANSISTOR MP1620-OPY-MK
IC608 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC609 6-702-391-01 TRANSISTOR MP1620-OPY-MK
IC610 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC611 6-702-391-01 TRANSISTOR MP1620-OPY-MK
IC612 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC613 6-702-391-01 TRANSISTOR MP1620-OPY-MK
IC614 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC615 6-702-391-01 TRANSISTOR MP1620-OPY-MK
IC616 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC617 6-702-391-01 TRANSISTOR MP1620-OPY-MK
0
T901 1-445-652-11 POWER TRANSFORMER (MAIN) (EXCEPT EA)
0
T901 1-445-730-11 POWER TRANSFORMER (MAIN) (EA)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

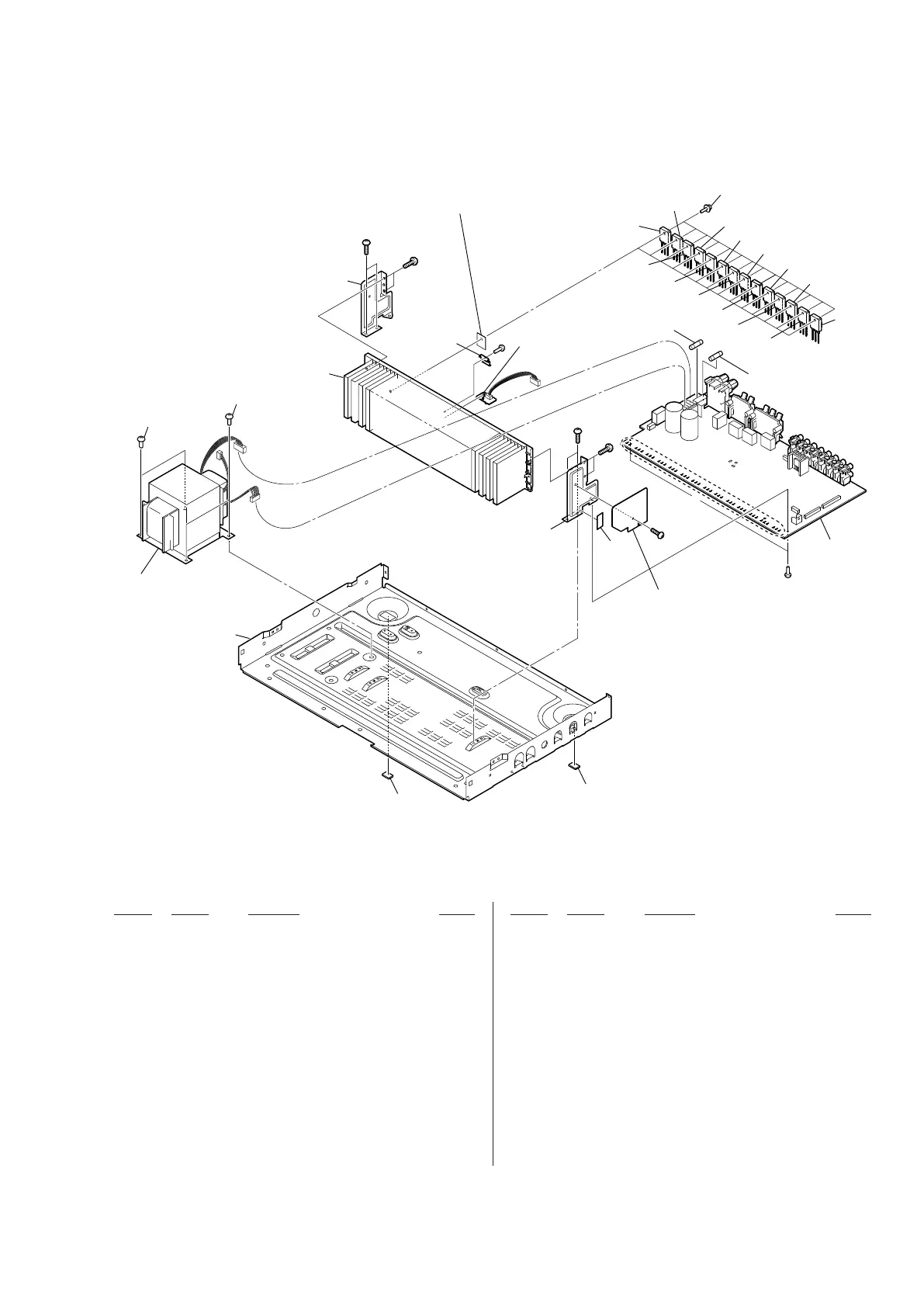

6-3. MAIN SECTION
not supplied
(THERMAL SENSOR
board)
#1
not supplied
105
105
104
102
101
101
103
106
#1
#1
#1
#1
#1
#1
T901
F404
F403
not supplied
not supplied
not supplied
IC610
IC606
IC611
IC607
IC616
IC617
IC614
IC615
IC613
IC612
IC609
IC605
IC608
IC604
not supplied
not supplied
(INSULATOR board)
