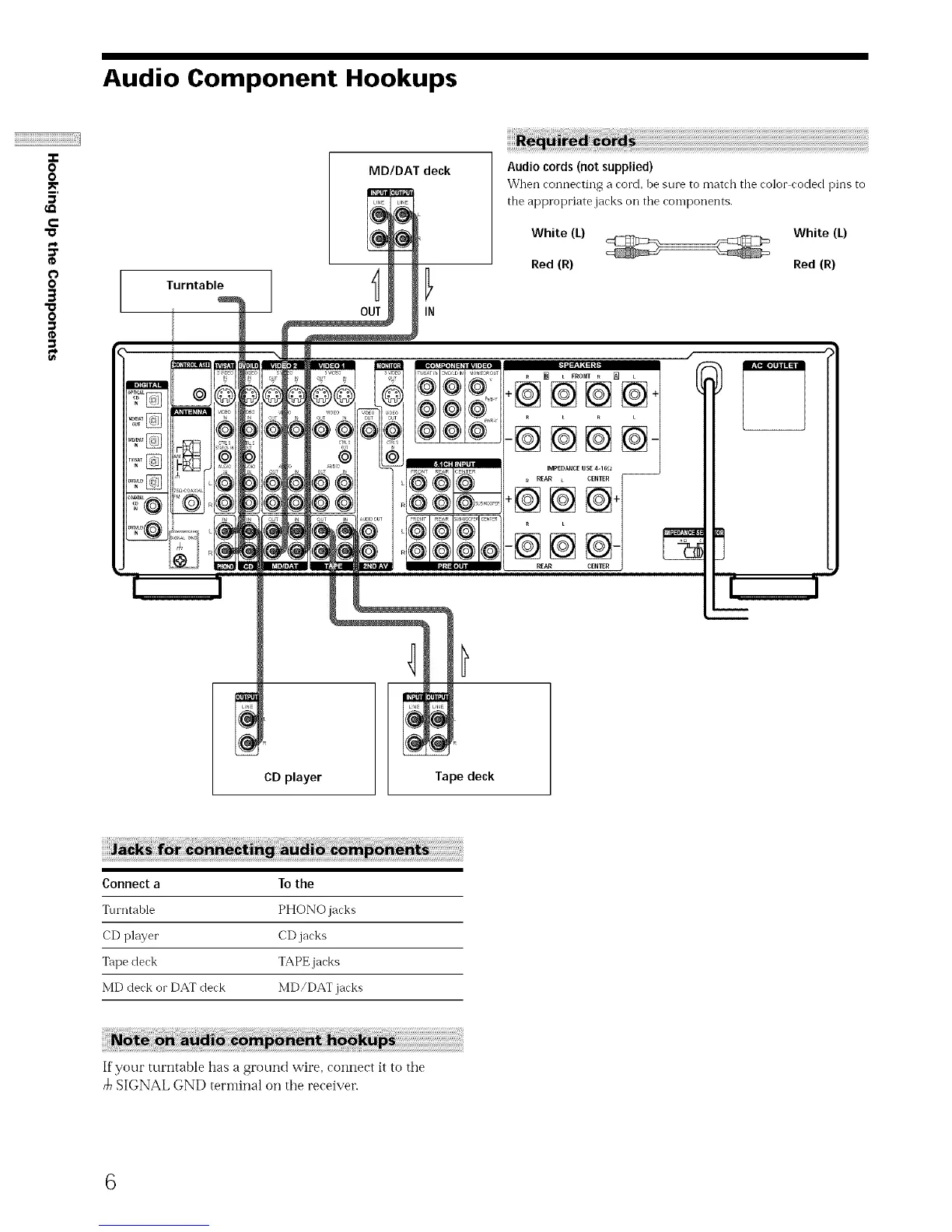

Audio Component Hookups
"T-
O
O
5'
c
"o
e_
¢
O
O
g
"o
0
Turntable
MDIDAT deck
OUT IN
Audio cords (not supplied)
_Vhen connecting a cord, be sure to match the color coded pins to
the appropriate jacks Oil tile components.
White (L) White (L)
Red (R) Red (R)
CD player
Tape deck
Connect a To the
Turntable PHONO jacks
CD player CD jacks
Tape deck TAPE jacks
MD deck or DAT deck MD/DAT jacks
If your turntable has a ground wire, connect it to the
SIGNAL GND terminal on the receiver.
