Sony STR-ZA5000ES - Installing 5.1.4-channel speaker system using top front and top rear speakers

[9] Preparation 1. Installing speakers
Installing 5.1.4-channel speaker system using top front
and top rear speakers
This speaker installation is configured by adding top front speakers and top rear speakers to
standard 5.1-channel speaker system placed on the listener-level.
Hint
TRL Top rear left speaker
TRR Top rear right speaker
FHL Front high left speaker
FHR Front high right speaker
RHL Rear high left speaker
RHR Rear high right speaker
FDL Front Dolby Atmos enabled left speaker
FDR Front Dolby Atmos enabled right speaker
SDL Surround Dolby Atmos enabled left speaker
SDR Surround Dolby Atmos enabled right speaker
SBDL Surround back Dolby Atmos enabled left speaker
SBDR Surround back Dolby Atmos enabled right speaker
Z2L Zone 2 left speaker
Z2R Zone 2 right speaker
Z3L Zone 3 left speaker
Z3R Zone 3 right speaker

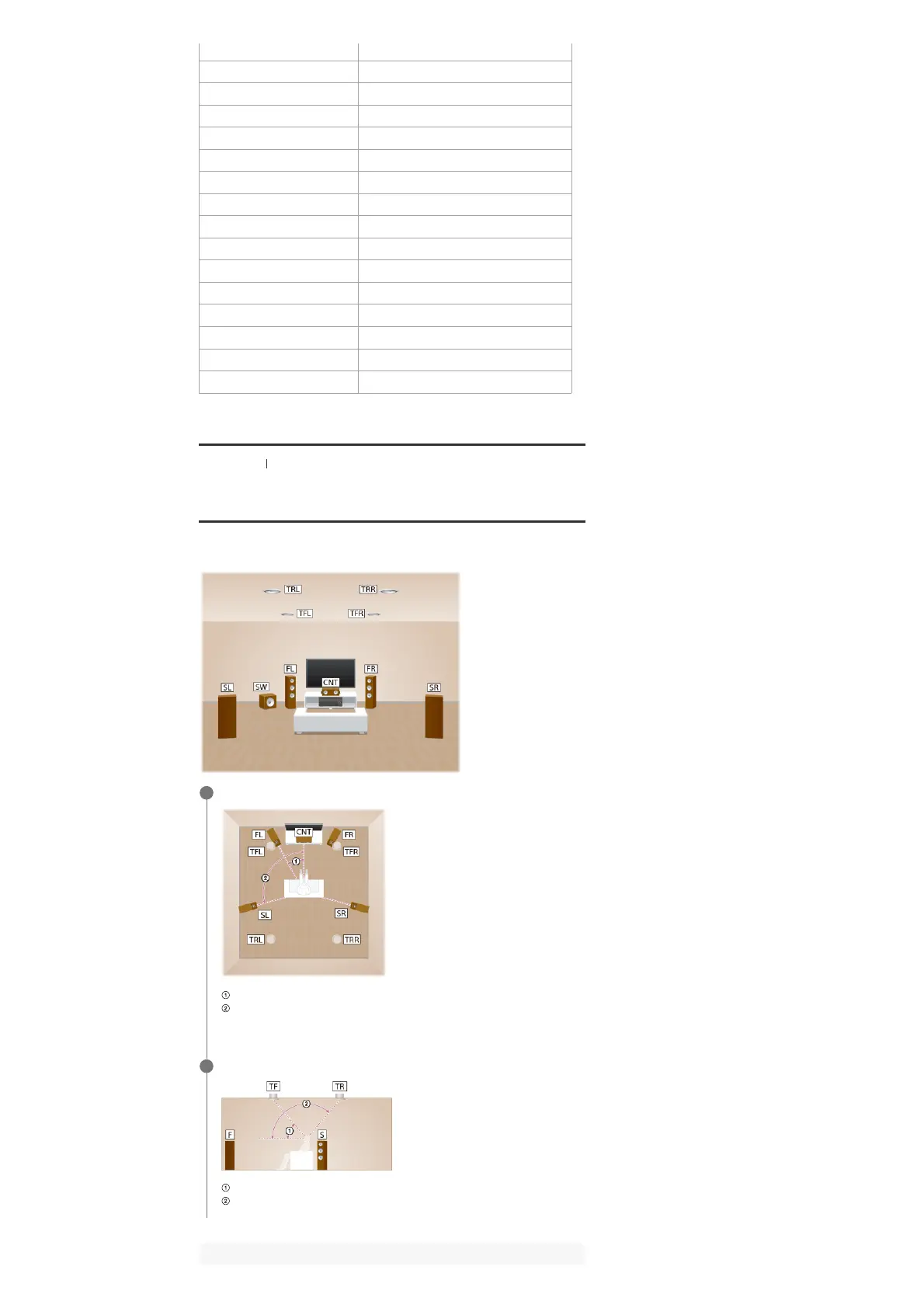

Place the speakers on the listener-level at the angles shown below.
30°
100° - 120°
1
Install the overhead (top) speakers at the angles shown below.
30° - 55°
125° - 150°
2
