[12] Preparation 1. Installing speakers
Installing 7.1.4-channel speaker system using an
additional stereo power amplifier
This speaker installation is configured by adding top front speakers and top rear speakers to
7.1-channel speaker system consisting of standard 5.1-channel speaker system and additional
surround back speakers placed on the listener-level. An additional stereo power amplifier is
used for the top rear speakers.
Hint
As the subwoofer does not emit highly directional signals, you can place it wherever you want.

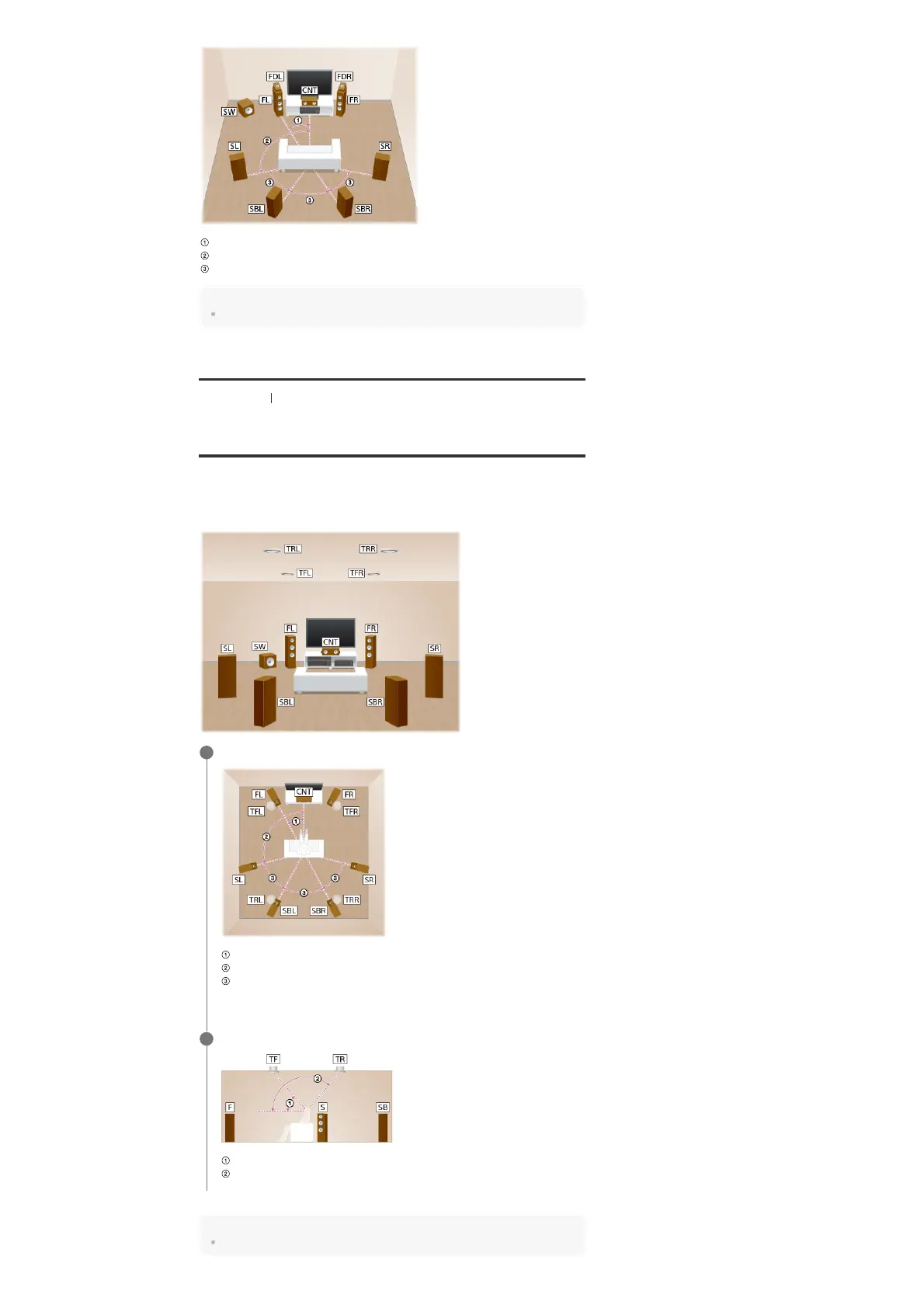

Place the speakers on the listener-level at the angles shown below.
30°
100° - 120°
Same angle
1
Install the overhead (top) speakers at the angles shown below.
30° - 55°
125° - 150°
2
To Next Page
