25
Connections
Chapter 2 Preparations
with the controller to the DC 5V/12V IN connector of
the controller.

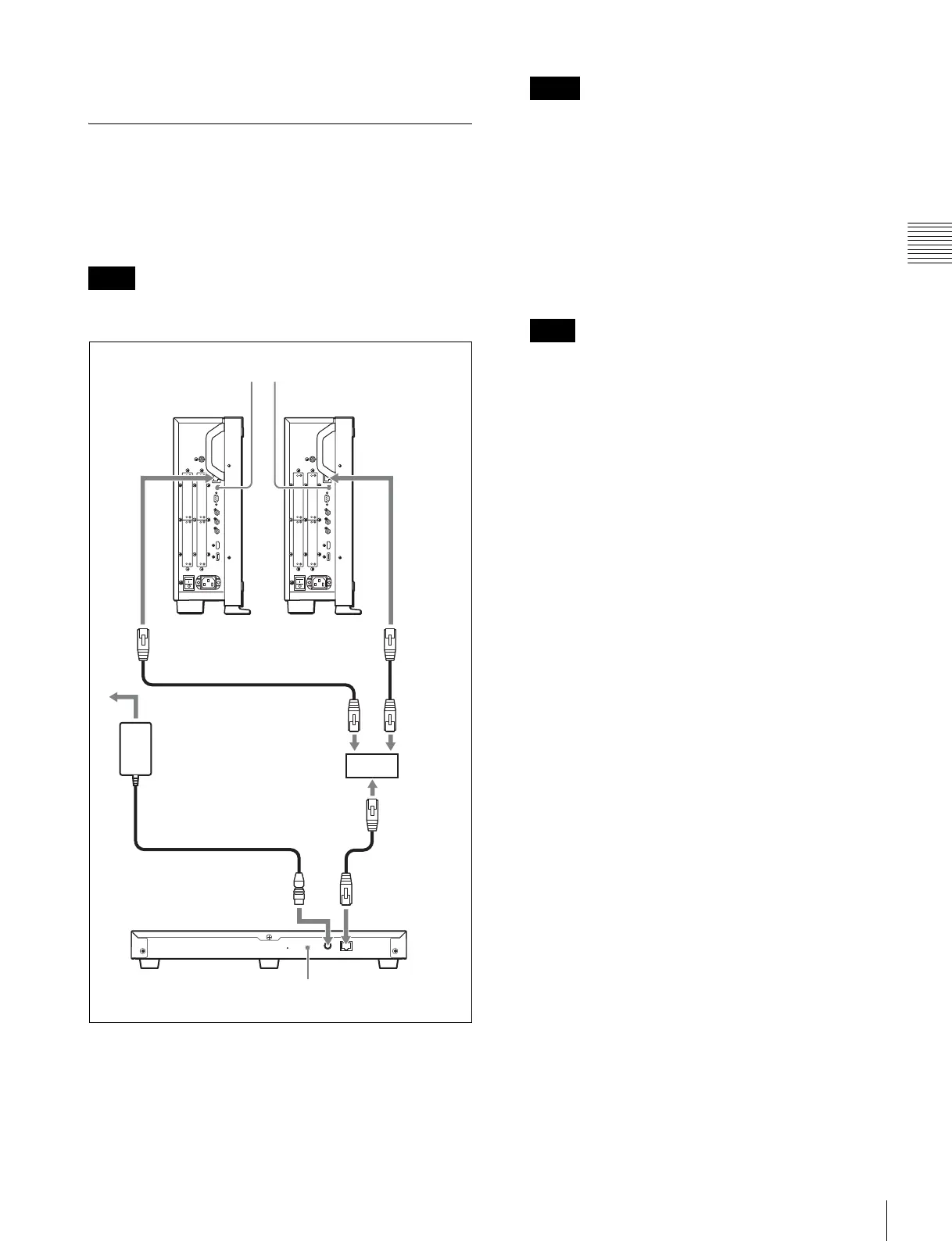

Connecting the Multiple Units with
the LAN
The controller controls up to 32 monitors. Up to four
controllers are connected to one monitor in single mode.
The controller cannot control monitors in another
subnetwork.
1
Turn off the MAIN POWER switch of the monitor
before connecting the units.
2
Connect to the network by using a 10BASE-T/
100BASE-TX cable (shielded-type, optional).
• When an optional LAN cable is connected, use a
shielded-type cable to prevent a malfunction due to
noises.
• We recommend to use an optional switching hub
with auto selection function (AUTO MDI/MDI-X)
of a straight/cross cable.
3
Connect the output cable on the AC adaptor supplied
with controller to the DC 5V/12V IN connector of the
controller.
When the multiple units are connected, set for the LAN
before setting the NETWORK switch to LAN (page
28).
4
Set the NETWORK switches of each monitor and the
controller to LAN.
Note
Controller
(BKM-16R)
Monitor
LAN (10/100)
connector
DC 5V/12V IN
connector
LAN (10/100)
connector
Switching hub
(recommended: with
AUTO MDI/MDI-X
function)
Monitor
LAN (10/100)
connector
AC adaptor (supplied
with the BKM-16R)
NETWORK switch
tSet to LAN.
NETWORK switch
tSet to LAN.
Notes
Note
