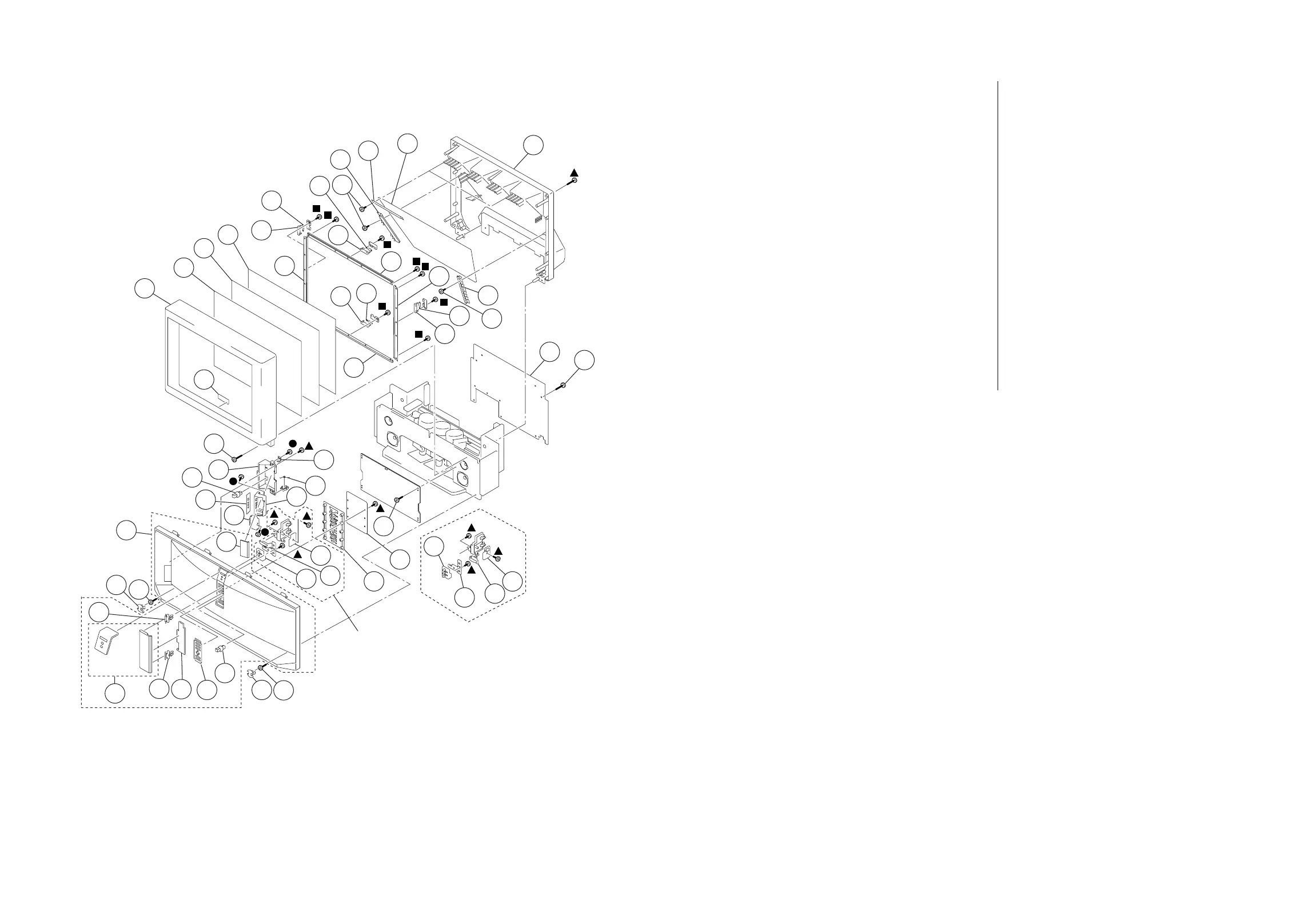

7-2. COVER (KP-HR532K90/HR532N90)
r : +BVTP 3X12 7-685-648-79
p : +BVTP 4X12 7-685-661-79
4 : +BVTP 4X16 7-685-663-91
REF. NO. PART NO. DESCRIPTION REMARK
–––––––– ––––––––– ––––––––––––– –––––––––
REF. NO. PART NO. DESCRIPTION REMARK
–––––––– ––––––––– ––––––––––––– –––––––––
51
52
53
54
56
88
56
88
57
55
57
64
67
68
72
63
91
62
83
63
86
71
84
73
69
74
75
89
82
81
63
76
77
85
79
80
86
76
63
87
70
58
59
61
56
88
60
63
56
88
55
69
82
90
70
63
HR532N90
HR532K90
51 X-4039-545-1 BEZNET (53) ASSY
52 4-055-639-11 SCREEN (53), CONTRAST
53 4-070-525-11 PLATE (L), DIFFUSION
54 4-070-602-11 PLATE (53F), DIFFUSION
55 * 4-070-330-02 HOLDER (S), SCREEN YC
56 * A-1391-179-A S BOARD, COMPLETE
57 * 4-070-328-12 HOLDER (L), SCREEN YC
58 * 4-076-705-01 HOLDER (SL), MIRROR
59 * 4-075-234-01 HOLDER (TOP), MIRROR
60 * 4-076-706-01 HOLDER (SR), MIRROR
61 4-070-344-01 MIRROR, REFLECTION
62 * 4-081-503-01 COVER, MIRROR
63 4-378-522-31 SCREW, TAPPING, HEXAGON HEAD
64 * 4-085-475-01 BOARD (53), REAR
67 * A-1377-062-A H2 BOARD, COMPLETE
68 4-082-284-01 BUTTON, MULTI
69 * A-1377-063-A H1 BOARD, COMPLETE (HR532K90)
* A-1377-066-A H1 BOARD, COMPLETE (HR532N90)
70 4-082-283-11 BUTTON, POWER (HR532N90)
4-082-283-21 BUTTON, POWER (HR532K90)
71 4-919-393-02 DAMPER
72 4-082-289-01 HOLDER, FRONT TERMINAL
73 4-082-288-02 BRACKET, H3
74 * A-1377-065-A H3 BOARD, COMPLETE
75 4-082-287-11 DOOR, FRONT TERMINAL
76 4-083-503-11 SCREW CAP, GRILLE
77 4-083-502-21 PANEL (ASSY), FRONT
79 4-082-282-01 COVER, CONTROL DOOR
80 4-082-291-02 LABEL, CONTROL
81 X-4039-542-1 GRILLE ASSY, SPEAKER
75,77,79,80,85,86,87
(HR532N90)
X-4039-546-1 GRILLE (53) ASSY, SPEAKER
75,77,79,80,85,86,87
(HR532K90)
82 4-082-286-01 GUIDE, LED
83 * A-1377-061-A H4 BOARD, COMPLETE
84 4-083-505-01 SPRING, DOOR
85 3-703-035-12 SHAFT, LID
86 4-042-192-02 CATCHER, PUSH
87 4-045-250-01 DAMPER
88 * 4-069-680-01 BRACKET (B), SENSOR
89 4-086-330-01 LABEL, FRONT TERMINAL
90 4-085-452-01 BUTTON, POWER (HR532K90)
91 4-378-522-01 SCREW, TAPPING, HEXAGON HEAD
