Installing and Connecting the Projection TV
27
Installing and Connecting the Projection TV

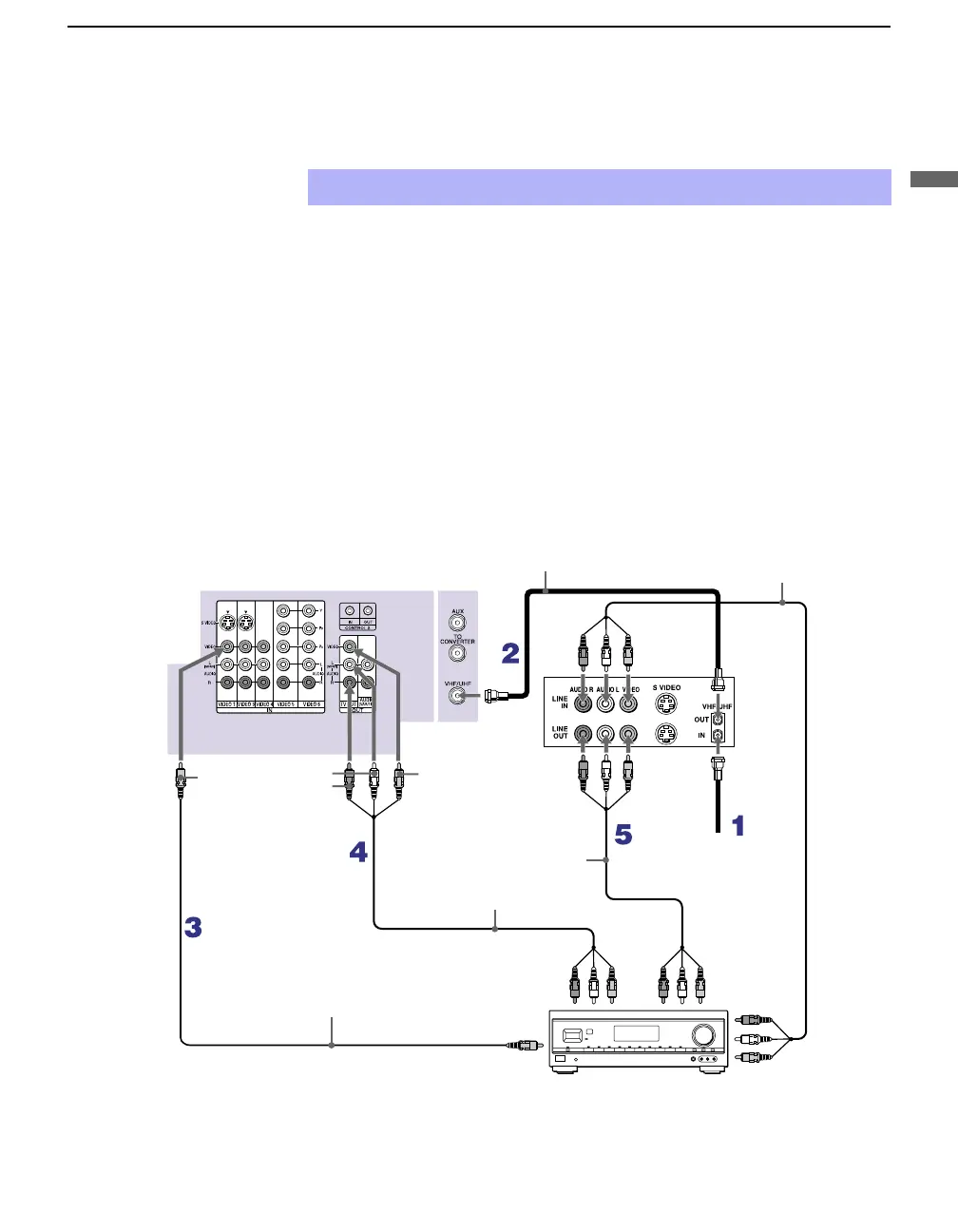

Connecting an AV Receiver
For greater control of all audio and video equipment, connect an AV receiver.
Disconnect all power sources before making any connections.
1
Connect the coaxial cable from the incoming cable connection or
antenna to IN on the VCR.
2
Using a coaxial cable, connect OUT on the VCR to VHF/UHF on the
projection TV.
3
Using a VIDEO cable, connect VIDEO of VIDEO 1 IN on the
projection TV to MONITOR OUT on the AV receiver.
4
Using an AUDIO/VIDEO cable, connect TV OUT on the projection TV
to AUDIO/VIDEO 2 IN on the AV receiver.
5
Using an AUDIO/VIDEO cable, connect the video equipment to the AV
receiver.
6
Select the Setup menu and set “Video Label” to “Receiver” to fix your
TV’s input to AV receiver (see “Video Label” on page 56).
✍
Change “Video Label” for the VIDEO 1 input to “Receiver” (see page 56).
Rear of projection TV
AUDIO-L
AUDIO-R
VMC-10HG (not supplied)
Cable/
Antenna
Coaxial cable (not supplied)
VMC-810S/820S
(not supplied)
VMC-810S/820S
(not supplied)
AUDIO/
VIDEO 1 IN
AUDIO/VIDEO 1 OUT
AV receiver
VMC-810S/820S (not supplied)
MONITOR
OUT
VIDEO
VIDEO
VCR
AUDIO/
VIDEO 2 IN
