– 9 –
KP-HR432K90/HR532K90/HR532N90/HW572K90
RM-Y909KRM-Y908RM-Y909K RM-Y909K

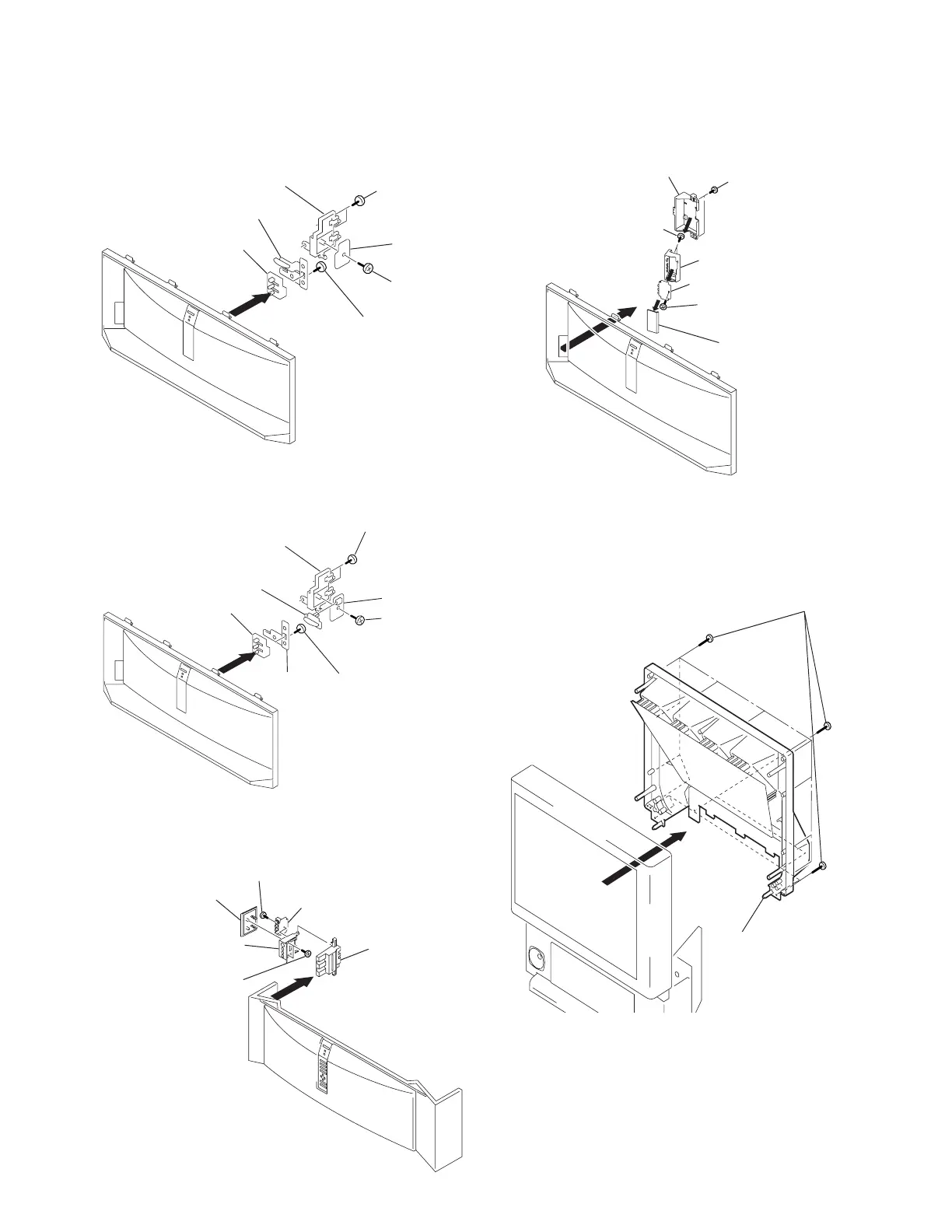

2-5. H1 BOARD REMOVAL (HR532N90)
1 Two screws
(+BVTP4x16)
3 Screw
(+BVTP4x16)
4 H1 board
6 Button, power
2 Bracket H1
5 Screw
(+BVTP4x16)
7 Guide, LED
2-9. MIRROR COVER REMOVAL
2 Mirror cover
1 Twenty three screws,
+BVTP4x16
2-8. H3 BOARD REMOVAL (EXCEPT HR432K90)
1 Screws
(+BVTP4x16)
2 Holder, front teminal
4 Bracket, H3
6 Screw
(+BVTP3x12)
3 Two screws
(+BVTP3x12)
5 Door, front terminal
7 H3 board
2-6. H1 BOARD REMOVAL (EXCEPT HR532N90)
1 Two screws
(+BVTP4x12
(HR432K90))
(+BVTP4x16
(Except HR432K90))
3 Screw
(+BVTP3x12
(HR432K90))
(+BVTP4x16
(Except HR432K90)
4 H1 board
5 Button, power
7 Button,
power
2 Bracket H1
6 Screw
(+BVTP4x12
(HR432K90))
(+BVTP4x16
(Except HR432K90)
8 Guide, LED
2-7. H3 BOARD REMOVAL (HR432K90)
2 Holder, side teminal
4 Bracket, H3
6 Screw
(+BVTP4x16)
3 Two screws
(+BVTP4x16)
5 Door, side terminal
7 H3 board
1
