KP-HR432K90/HR532K90/HR532N90/HW572K90
RM-Y909KRM-Y908RM-Y909K RM-Y909K
151 1-544-893-11 SPEAKER (10cm)
153 0 1-223-925-11 RESISTOR ASSY (HIGH VOLTAGE)
(FOCUS PACK)
154 * A-1299-633-A A BOARD, COMPLETE
155 8-598-475-01 TUNER, FSS BTF-WL411 (TU2)
156 8-598-430-50 TUNER, FSS BTF-FA401 (TU1)
157 * 1-557-056-31 CABLE, P-P
158 * 1-556-945-21 CABLE, P-P
159 1-771-787-11 SWITCH, RF ANTENNA
160 4-081-961-01 BOARD, TERMINAL
161 * A-1373-882-A U BOARD, COMPLETE
162 * A-1136-267-A B BOARD, COMPLETE
163 * A-1299-634-A AD BOARD, COMPLETE
164 * A-1348-132-A D BOARD, COMPLETE
REF. NO. PART NO. DESCRIPTION REMARK
–––––––– ––––––––– ––––––––––––– –––––––––
REF. NO. PART NO. DESCRIPTION REMARK
–––––––– ––––––––– ––––––––––––– –––––––––

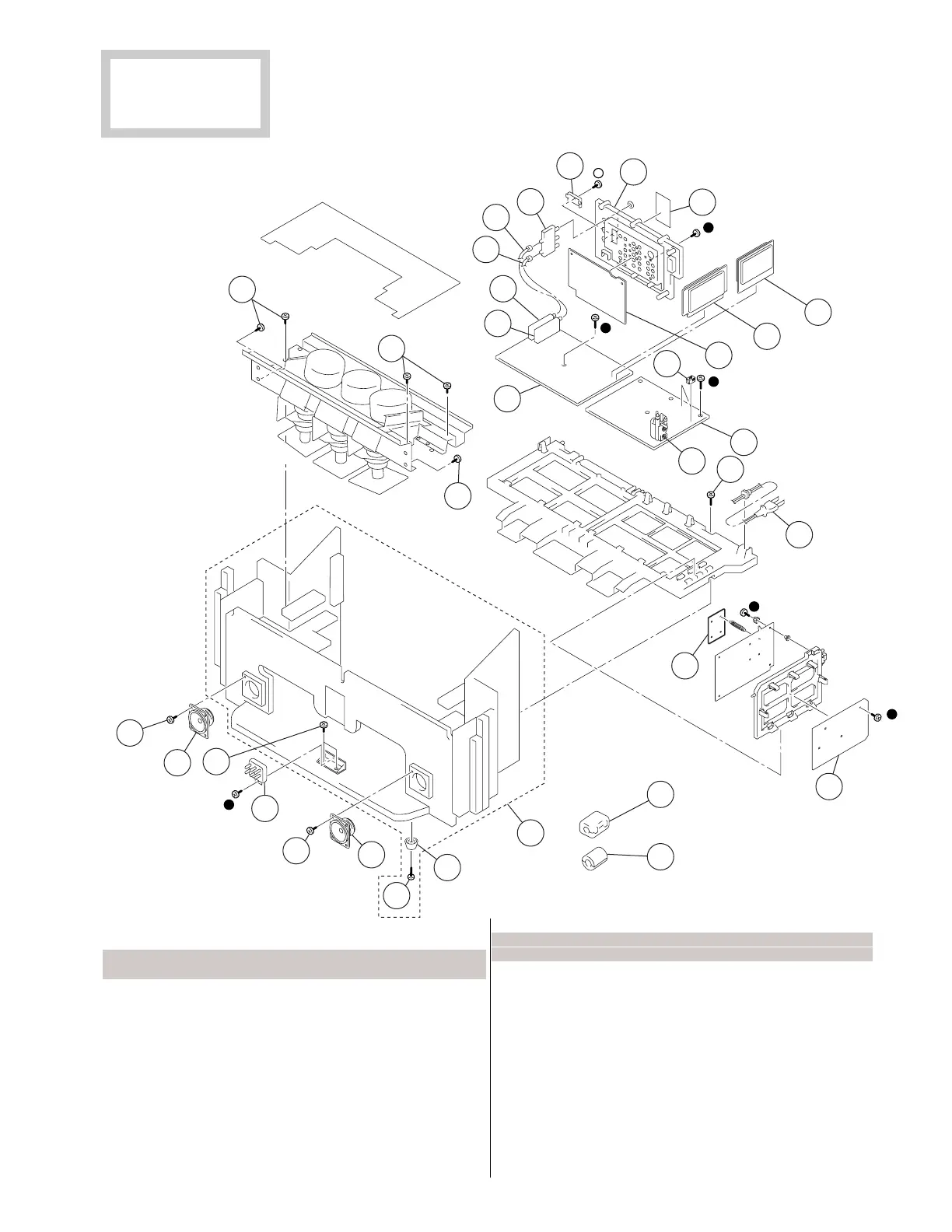

7-4. CHASSIS (KP-HR432K90)
r : +BVTP 3X12 7-685-648-79
® : +BVTP 4X16 7-685-663-79
168
168
180
151
153
180
180
151
174
170
169
154
161
162
163
165
166
164
179
175
157
156
155
158
159
160
172
171
168
176
167
178
168
165 0 1-453-285-21 FBT ASSY, NX-4006//X4P4 (T8005)
166 0 1-823-473-11 CORD, AC POWER (WITH FILTER)
167 * A-1316-596-A G BOARD, COMPLETE
168 4-378-522-31 SCREW,TAPPING,HEXAGON HEAD
169 1-500-021-11 CLAMP, SLEEVE FERRITE
170 1-543-653-11 CORE ASSY, BEAD(DIVISION TYPE)
171 4-069-675-01 CAP, TERMINAL BOARD
172 4-086-329-01 LABEL, TERMINAL
174 * X-4039-543-1 CABINET (43) ASSY, BOTTOM 176
175 3-710-578-01 COVER VOLUME 6 MOLD
176 4-076-577-01 FOOT
178 * A-1241-525-A F BOARD,COMPLETE
179 4-378-522-01 SCREW, TAPPING, HEXAGON HEAD
180 4-052-894-01 SCREW (4X20), HEAD TAPPING
The components identified by
shading and mark ! are criti-
cal for safety.
Replace only with part number
specified.
To Next Page
