Installing and Connecting the Projection TV
18

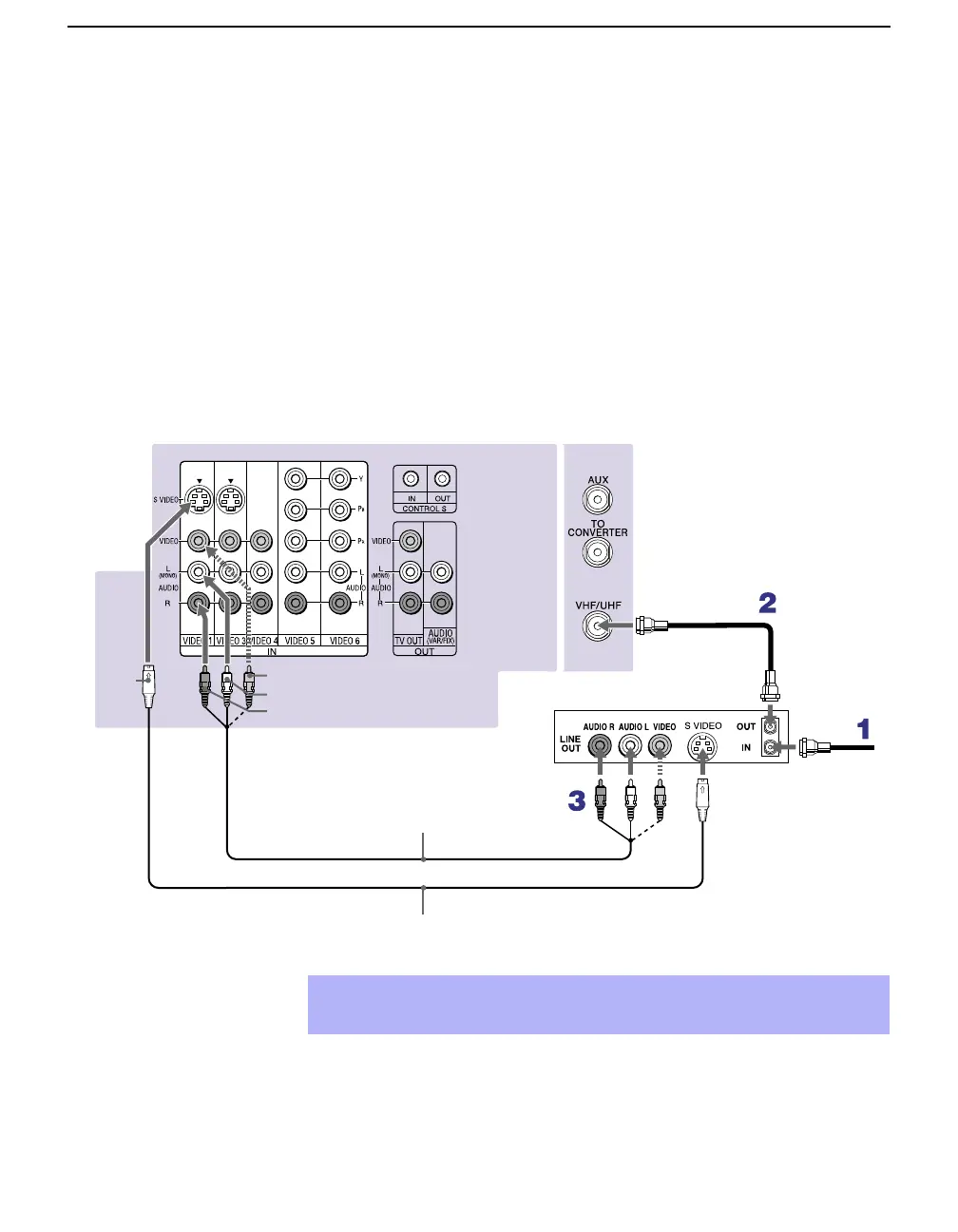

Connecting a VCR and Cable
Use this hookup if:
❑
You have cable TV that does not require a cable box.
Disconnect all power sources before making any connections.
1
Connect the cable TV cable to the VCR’s IN jack.
2
Using a coaxial cable, connect the VCR’s OUT jack to the projection
TV’s VHF/UHF jack.
3
Using AUDIO and S VIDEO cables, connect the VCR’s Audio and
S VIDEO OUT jacks to the projection TV’s AUDIO and S VIDEO IN
jacks.
Coaxial cable
Rear of Projection TV
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
Cable
VCR
VMC-810S/820S
(not supplied)
S VIDEO
YC-15V/30V (not supplied)
✍
If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
To Next Page
