– 14 –
KP-HR432K90/HR532K90/HR532N90/HW572K90
RM-Y909KRM-Y908RM-Y909K RM-Y909K

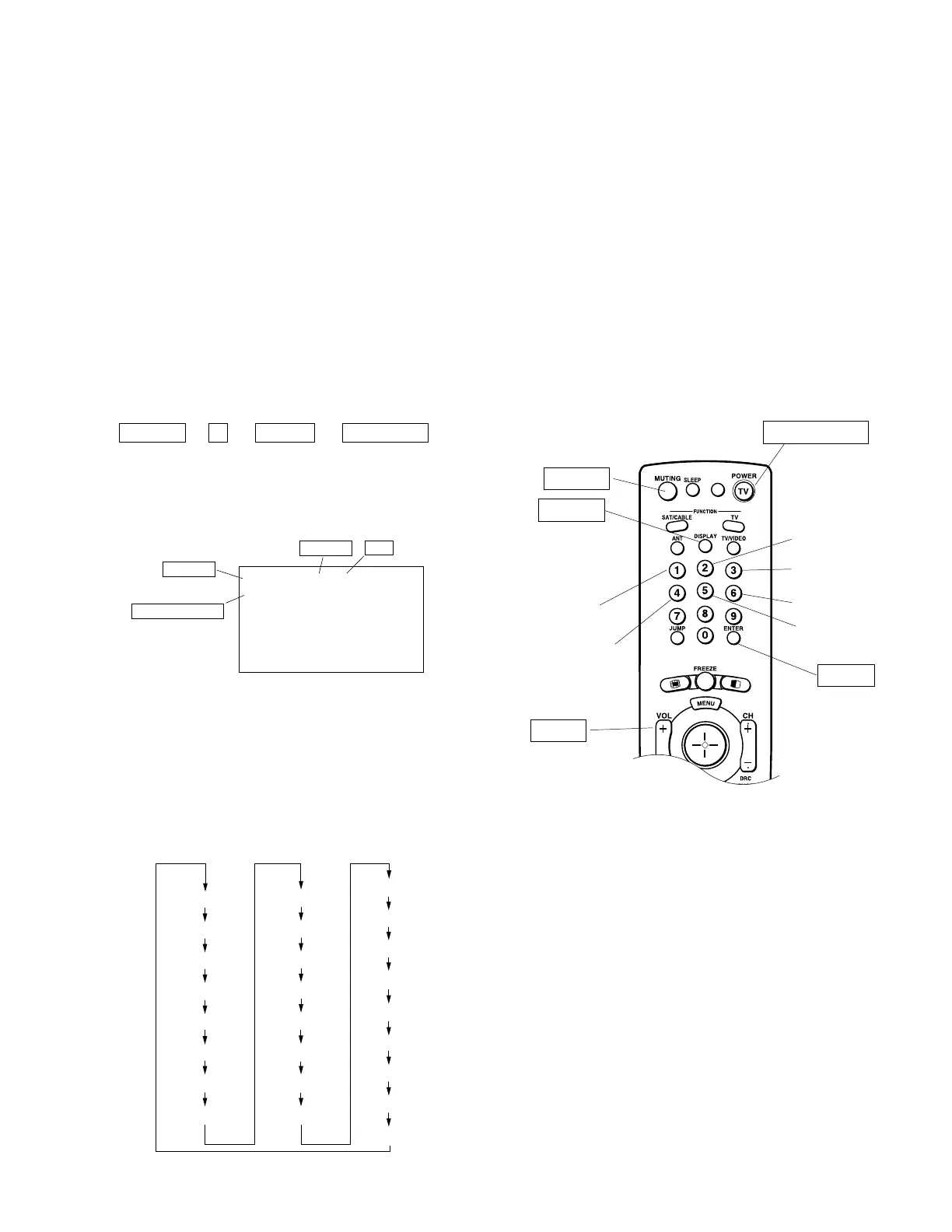

3-10.ELECTRICAL ADJUSTMENT BY REMOTE
COMMANDER
3. The SCREEN displays the item being adjusted.
4. Press 1 or 4 on the Remote Commander to select the
adjustment item.
5. Press 3 or 6 on the Remote Commander to change the data.
6. Press 2 or 5 on the Remote Commander to select the
category.
Every time you press 2(Category up), Service mode changes
in the order as shown below.
2. MEMORY WRITE CONFIRMATION METHOD
1. After adjustment, turn power off with the remote commander.
2. Turn power on and set to Service Mode.
3. Call the adjusted items again and confirm they were adjusted.
By using Remote Commander (RM-Y908/Y909K),all circuit
adjustments can be made.
NOTE : Test Equipment Required.
1. Pattern Generator (with component outputs)
2. Frequency counter
3. Digital multimeter
4. Audio oscillator
1. METHOD OF SETTING THE SERVICE ADJUSTMENT MODE
SERVICE MODE PROCEDURE
1. Standby mode. (Power off)
2. DISPLAY n 5 n VOL (+) n TV POWER
on the Remote Commander.
(Press each button within a second.)
SERVICE MODE ADJUSTMENT
3. ADJUSTING BUTTONS AND INDICATOR
3D-COMB
2103-1
2103-2
2150P-1
2150P-2
2150P-3
2150D-1
2150D-2
2150D-3
2151
AP
TRUS
OP
ID
DLBY
MID2
ID-1
2150P-4
MID1
CCD
PJE
SNNR
OSD
MID3
MID5
7. If you want to recover the latest values press - then [ENTER] to
read the memory.
8. Press [MUTING] then [ENTER] to write into memory.
9. Turn power off.
Note: Press 8 then [ENTER] on the Remote Commander to initialize
or turn set off and on to exit.
RM-Y908/Y909K
Note : When the PJE mode is activated, which displays an inter-
nally generated signal, several buttons on the remote
commander will have different functions than listed above.
Therefore, when in the PJE mode, refer to page 28 for
button functions.
MUTING
DISPLAY
Adjustment item up
ENTER
Data
WSL : XXX
0 0
3D-COMB
NRMD
F / A FLAG : XXXXXXXX
CBA FLAG : XXXXXXXX
SERVICE
TV
Item NO.
Adjustment Item
Category
Adjustment item down
VOL (+)
TV POWER ON
Category up
Data up
Data down
Category down
To Next Page
