– 11 –
KP-HR432K90/HR532K90/HR532N90/HW572K90
RM-Y909KRM-Y908RM-Y909K RM-Y909K

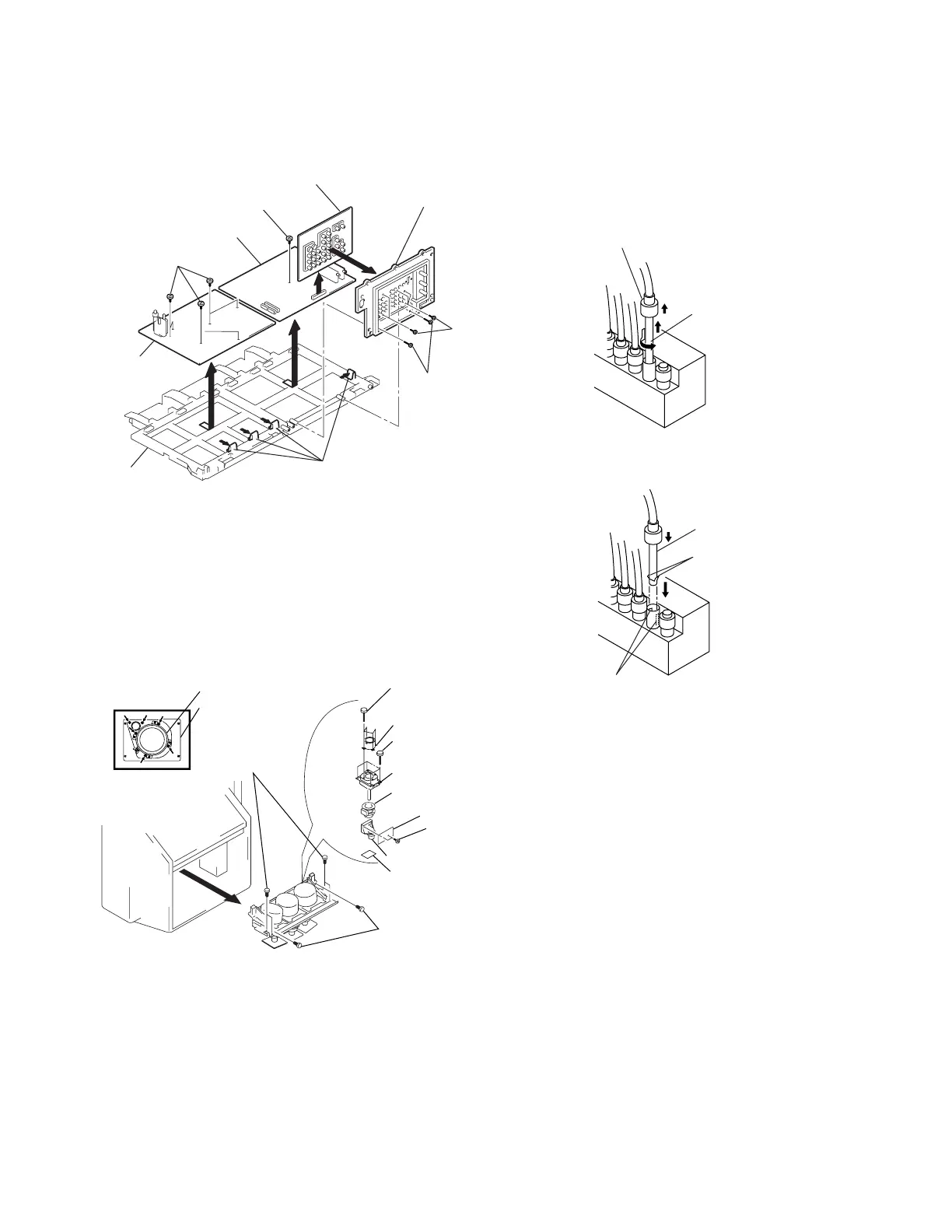

2-16. HIGH-VOLTAGE CABLE INSTALLATION
AND REMOVAL
(1) Removal
1 Rubber cap
2 HV cable
turn 90°
1 HV cable
Gutter
Hook
(2) Installation
2-14. A BOARD, D BOARD AND U BOARD REMOVAL
6 D board
6 A board
2 Terminal board
5 Claws
Main bracket
3 U board
1 Two screws,
tapping, hexagon head
4 Screws
(+BVTP3x12)
4 Six screws
(+BVTP3x12)
1 Five screws
(+BVTP3x12)
8 Two screws
(+BVTP3x12)
!â„¢ Four screws
(+BVTP 4x16)
!£ Picture tube
Picture tube
0 Deflection yoke
3
7 Neck assy
6 CR board
9 V board
5 Lens
Lens
4 Four screws,
(+BVTP 4x16)
1 Two screws,
(4x20) , head tapping,
2 Four screws,
(4x20) , head
tapping,
2-15. PICTURE TUBE REMOVAL
CAUTION: Removing the arrow-marked
screws is strictly prohibited.
If removed, it may cause liquid spill.
To Next Page
