KV-25M2/25T2
V SIZE
V LIN
S CORRECTION
V CENTRE
H CENTRE
H SIZE
PIN AMP
PIN PHASE
CORNER PIN
V ANGLE

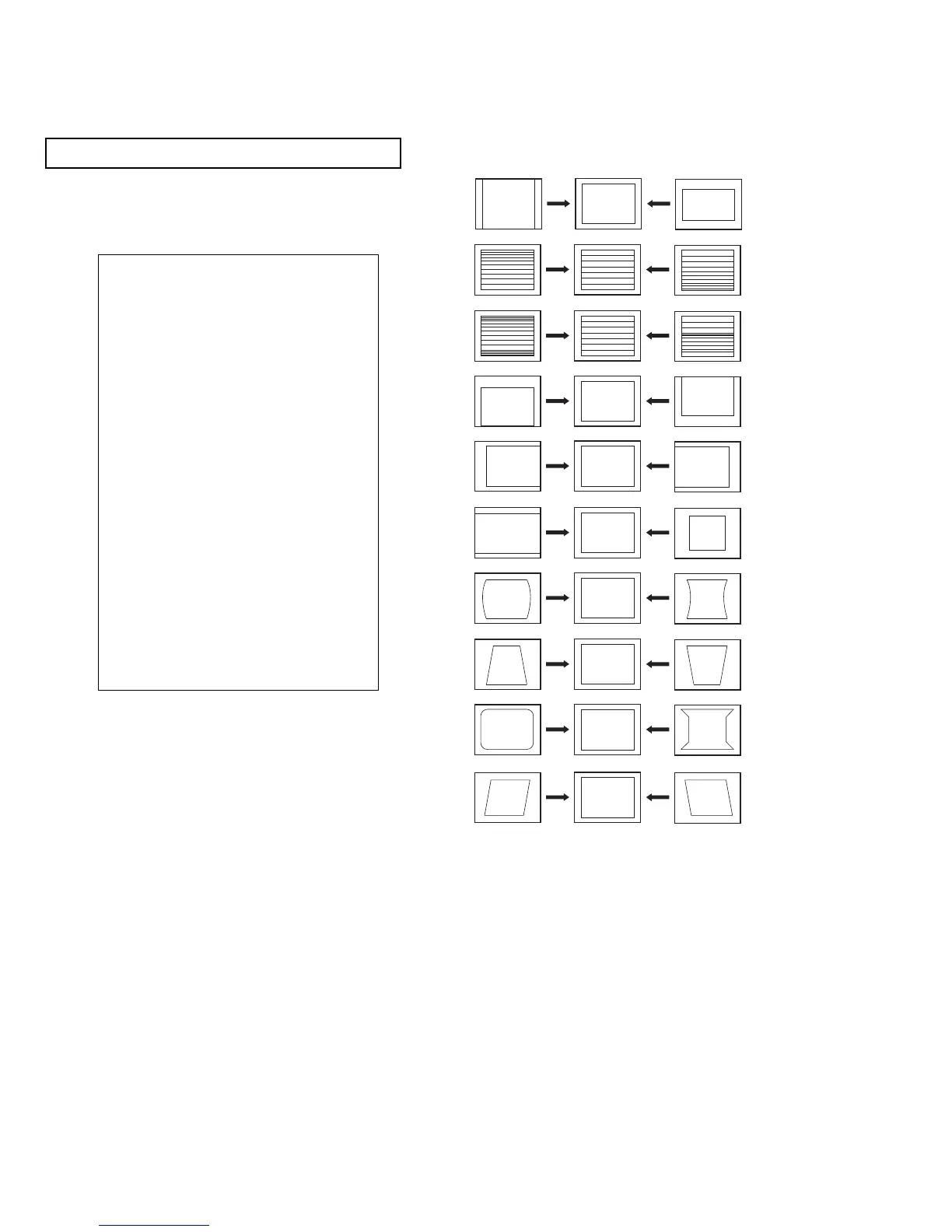

DEFLECTION SYSTEM ADJUSTMENT
1. Enter into the ‘Geometry’ service menu.
2. Select and adjust each item in order to obtain the optimum
image.
GEOMETRY
V centre Adj
V size Adj
V Lin Adj
S Corr Adj
H Cent Adj
H Size Adj
Pin Amp Adj
Corner Pin Adj
Pin Phase Adj
V Bow Adj
V Angle Adj
Upper V Lin Adj
Lower V Lin Adj
Left HBLK 07
Right HBLK 07
CD Mode (AV) 01
