KV-27FV310/29FV310/32FV310/36FV310
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
The component parts of an assembly are indicated by the
reference numbers in the far right column of the parts list
and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.

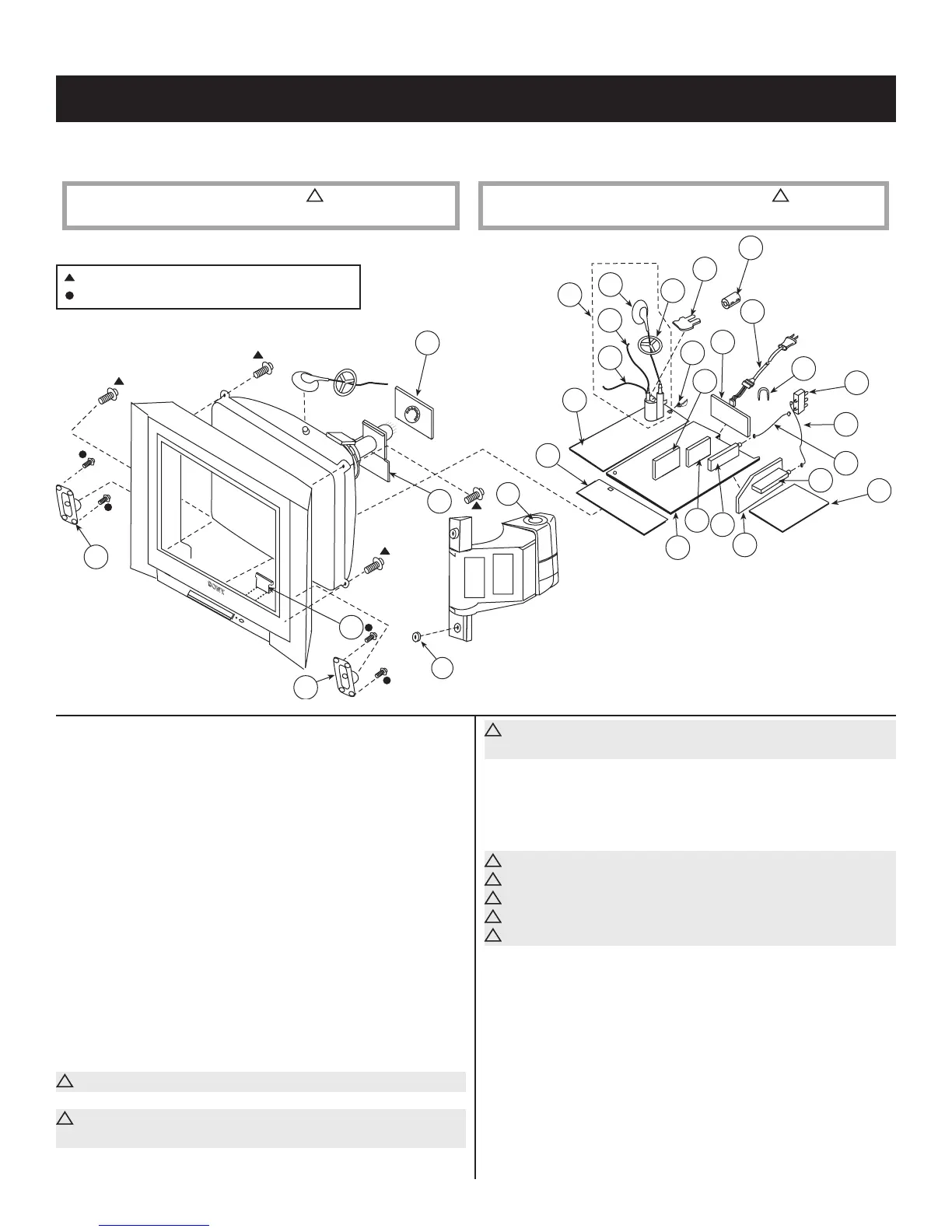

6-1. CHASSIS (KV-27FV310/29FV310 ONLY)
SECTION 6: EXPLODED VIEWS
1 1-825-417-11 LOUDSPEAKER
* 2 A-1400-251-A HR (COM) BOARD, MOUNTED
* 3 4-374-745-41 CUSHION (A)
4 1-825-416-11 SUB WOOFER SPEAKER (10CM)
* 5 A-1404-848-A V (VAR) BOARD, MOUNTED
* 6 A-1302-089-A A BOARD, COMPLETE
(ALL EXCEPT KV-29FV310 LATIN SOUTH)
* 6 A-1302-166-A A BOARD, COMPLETE
(KV-29FV310 LATIN SOUTH ONLY)
* 7 A-1400-450-A BC BOARD, MOUNTED
8 8-598-593-50 TUNER FSS BTF-WA421
* 9 A-1404-846-A P (VAR) BOARD, MOUNTED
* 10 A-1404-844-A GK (VAR) BOARD, MOUNTED
(ALL EXCEPT KV-29FV310 LATIN SOUTH)
* 10 A-1405-113-A GK (VAR) BOARD, MOUNTED
(KV-29FV310 LATIN SOUTH ONLY)
11 8-598-594-30 TUNER FSS BTF-FA421
* 12 1-555-110-00 CABLE, P-P
* 13 1-558-539-21 CABLE, P-P
!
14 1-771-787-13 SWITCH, RF ANTENNA
* 15 4-076-951-01 HINGE, PWB
!
16 1-827-159-11 POWER CORD WITH CONNECTOR
(ALL EXCEPT KV-29FV310 LATIN SOUTH)
!
16 1-769-796-31 CORD, POWER (WITH CONNECTOR)
(KV-29FV310 LATIN SOUTH ONLY)
* 17 4-087-877-11 BRACKET, TERMINAL
* 18 A-1404-854-A Y BOARD, MOUNTED
19 4-064-646-01 CLIP, CHASSIS
20 1-500-586-11 FILTER, CLAMP (FERRITE CORE)
* 21 4-094-669-01 BRACKET, FBT
!
22 4-084-918-01 HOLDER, HV CABLE
!
23 1-453-387-21 FBT ASSY/NX-6020//M3J4 (24-26)
!
24 1-251-374-14 CAP ASSY, HIGH-VOLTAGE
!
25 1-900-805-19 WIRE ASSY, FOCUS HV
!
26 1-900-805-22 CONNECTOR ASSY, G2 HV
The high voltage leads associated with the FBT on the following D boards
are not included and must be ordered separately (SEE 24-26)
* 27 A-1404-852-A D (VAR) BOARD, MOUNTED
(ALL EXCEPT KV-29FV310 LATIN SOUTH)
* 27 A-1405-114-A D (VAR) BOARD, MOUNTED
(KV-29FV310 LATIN SOUTH ONLY)
* 28 A-1404-855-A HU (VAR) BOARD, MOUNTED
* 29 A-1404-850-A C (VAR) BOARD, MOUNTED
REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
1
1
29
5
2
10
12
9
14
20
21
15
13
11
7
8
6
24
23
25
26
28
18
27
16
17
22
3
4
19
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
4-388-477-01 SCREW(3X16),TAPPING,+BV WASHER
