Sony Trinitron KV-27FV310 - Chassis (KV-32 FV310 ONLY)

— 59 —
KV-27FV310/29FV310/32FV310/36FV310
REF. NO. PART NO. DESCRIPTION
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION

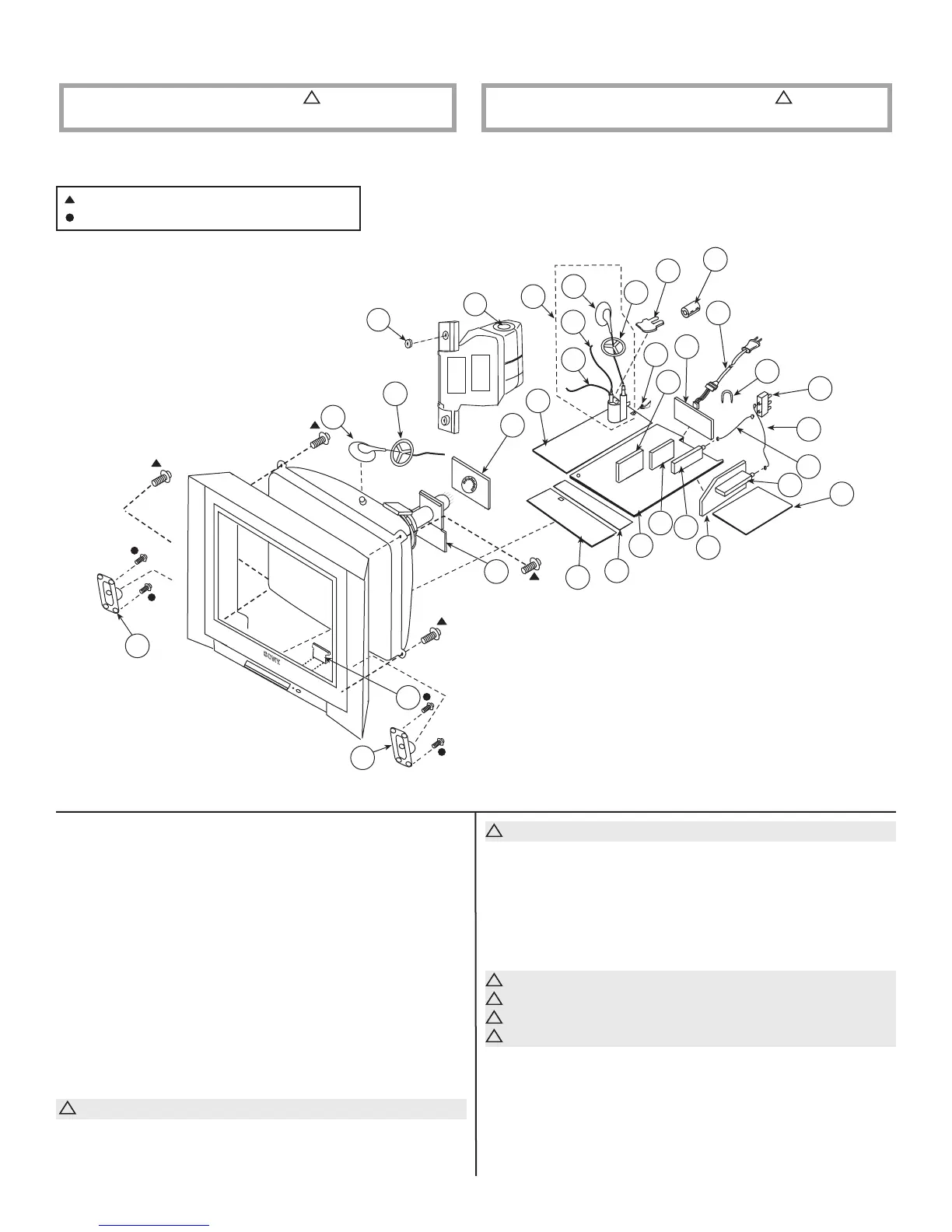

6-3. CHASSIS (KV-32FV310 ONLY)
1 1-825-417-11 LOUDSPEAKER
* 2 A-1400-251-A HR (COM) BOARD, MOUNTED
* 3 A-1404-895-A V (VAR) BOARD, MOUNTED
* 4 A-1404-855-A HU (VAR) BOARD, MOUNTED
* 5 A-1404-896-A HD BOARD, MOUNTED
* 6 A-1302-106-A A BOARD, COMPLETE
* 7 A-1400-450-A BC BOARD, MOUNTED
8 8-598-593-50 TUNER FSS BTF-WA421
* 9 A-1404-846-A P (VAR) BOARD, MOUNTED
* 10 A-1404-844-A GK (VAR) BOARD, MOUNTED
11 8-598-594-30 TUNER FSS BTF-FA421
* 12 1-555-110-00 CABLE, P-P
* 13 1-558-539-21 CABLE, P-P
!
14 1-771-787-13 SWITCH, RF ANTENNA
* 15 4-076-951-01 HINGE, PWB
!
16 1-827-159-11 POWER CORD WITH CONNECTOR
* 17 4-087-877-11 BRACKET, TERMINAL
* 18 A-1404-854-A Y BOARD, MOUNTED
19 4-064-646-01 CLIP, CHASSIS
20 1-500-586-11 FILTER, CLAMP (FERRITE CORE)
* 21 4-094-669-01 BRACKET, FBT
22 4-084-918-01 HOLDER, HV CABLE
!
23 1-453-387-21 FBT ASSY NX-6020//M3J4 (24-26)
!
24 1-251-715-22 CAP ASSY, HIGH-VOLTAGE
!
25 1-900-805-19 WIRE ASSY, FOCUS HV
!
26 1-900-805-22 CONNECTOR ASSY, G2 HV
* 27 A-1404-897-A D (VAR) BOARD, MOUNTED
The high voltage leads associated with the FBT on the D board are not
included and must be ordered separately (SEE 24-26)
* 28 A-1405-169-A C (VAR) BOARD, MOUNTED
29 4-374-745-41 CUSHION (A)
30 1-825-416-11 SUB WOOFER SPEAKER (10CM)
1
30
29
16
17
9
14
15
13
7
8
6
20
5
4
21
24
23
25
26
22
19
18
27
28
3
24
22
2
1
10
12
11
[ASSEMBLY INCLUDES]
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
4-388-477-01 SCREW(3X16),TAPPING,+BV WASHER
