Sony Trinitron KV-27FV310 - Picture Tube (KV-27 FV310;29 FV310 ONLY)

— 58 —
KV-27FV310/29FV310/32FV310/36FV310
REF. NO. PART NO. DESCRIPTION
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION

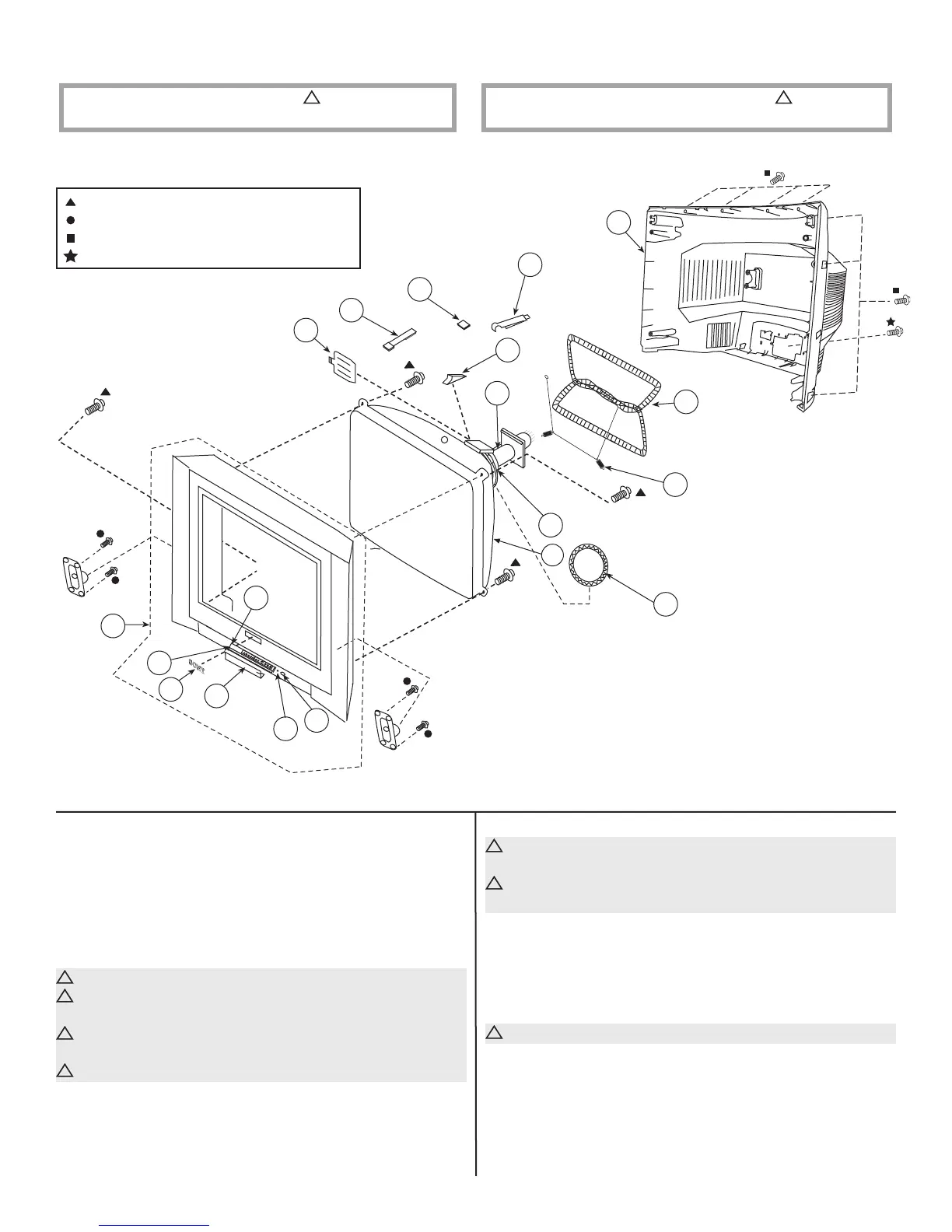

6-2. PICTURE TUBE (KV-27FV310/29FV310 ONLY)
30 X-4041-487-1 BEZNET ASSY (31-36)
31 4-087-374-01 SPRING, DOOR
32 4-046-160-11 EMBLEM, SONY (NO.9)
33 4-087-375-11 DOOR, CONTROL
34 4-087-156-01 GUIDE, LIGHT
35 4-087-150-01 BUTTON, POWER
36 4-036-880-21 DAMPER
!
37 1-452-896-11 COIL, NA ROTATION (RT200)
!
38 8-735-082-05 CRT 29RSN(SDP) M68LNH050X
(ALL EXCEPT KV-29FV310 LATIN SOUTH)
!
38 8-735-083-05 CRT 29RSN(SDP)(SOUTH) M68LNH050X
(KV-29FV310 LATIN SOUTH ONLY)
!
39 8-451-494-41 DY Y29RSA-V
40 4-036-329-01 SPRING (B), TENSION
!
41 1-419-156-21 COIL, DEGAUSSING
(ALL EXCEPT KV-29FV310 LATIN SOUTH)
!
41 1-419-523-21 COIL, DEGAUSSING
(KV-29FV310 LATIN SOUTH ONLY)
* 42 4-062-970-12 CLIP (29RSN), DGC
43 1-452-885-11 MAGNET, LANDING
44 4-083-414-01 PIECE A(110), CONV CORRECT
45 4-081-170-01 PLATE, TLH CORRECTION
46 4-053-005-01 SPACER, DY
!
47 8-453-011-11 NECK ASSEMBLY NA299-M
49 4-087-777-02 COVER, REAR
48
41
38
44
43
39
45
37
40
47
46
32
31
33
30
34
35
36
42
[ASSEMBLY INCLUDES]
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
4-388-477-01 SCREW(3X16),TAPPING,+BV WASHER
7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3
7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
