— 60 —
KV-27FV310/29FV310/32FV310/36FV310
REF. NO. PART NO. DESCRIPTION
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION

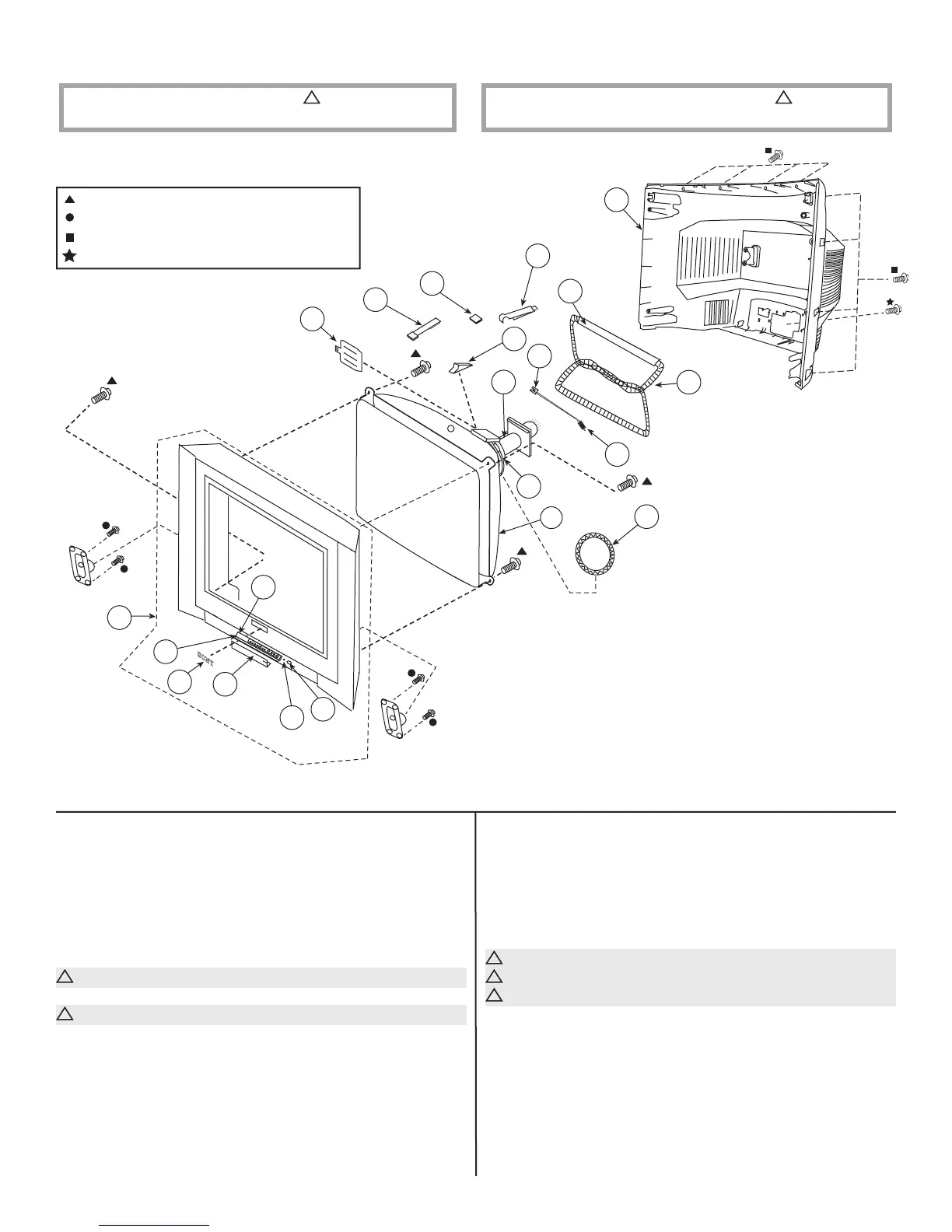

6-4. PICTURE TUBE (KV-32FV310 ONLY)
40 X-4041-404-1 BEZNET ASSY (41-46)
41 4-087-374-01 SPRING, DOOR
42 4-046-160-11 EMBLEM, SONY (NO.9)
43 4-087-375-11 DOOR, CONTROL
44 4-087-156-01 GUIDE, LIGHT
45 4-087-150-01 BUTTON, POWER
46 4-036-880-21 DAMPER
!
47 1-452-896-11 COIL, NA ROTATION (RT200)
48 4-082-641-01 SPRING, 45MM
!
49 1-428-988-11 DEGAUSSING COIL (32 120V)
* 50 4-074-576-01 CUSHION, DGC
51 4-065-895-11 HOLDER, DGC
52 1-452-885-11 MAGNET, LANDING
53 4-083-414-01 PIECE A(110), CONV CORRECT
54 4-081-170-01 PLATE, TLH CORRECTION
55 4-053-005-01 SPACER, DY
56 4-082-640-01 HOOK, GROUND WIRE
!
57 8-453-007-41 NECK ASSEMBLY NA324-M4
!
58 8-451-499-41 DY Y34RSA-V
!
59 8-735-066-05 CRT 34RSN(SDP) A80LPD50X
60 4-087-878-01 COVER, REAR
60
49
48
50
56
59
53
52
58
54
47
57
55
51
46
42
41
43
40
44
45
[ASSEMBLY INCLUDES]
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
4-388-477-01 SCREW(3X16),TAPPING,+BV WASHER
7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3
7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
