KV-27FV310/29FV310/32FV310/36FV310
V. LINEARITY (VLIN), V. CORRECTION
(SCOR), PIN AMP (PAMP), AND
HORIZONTAL TRAPEZOID (HTRP)
ADJUSTMENTS
1. Input a crosshatch signal.
2. Activate the Service Adjustment Mode.
3. Select VLIN, SCOR, PAMP, and HTRP with
1
and
4
.
4. Adjust with
3
and
6
for the best horizontal size.
5. Press
MUTING
then
ENTER
to save into the memory.

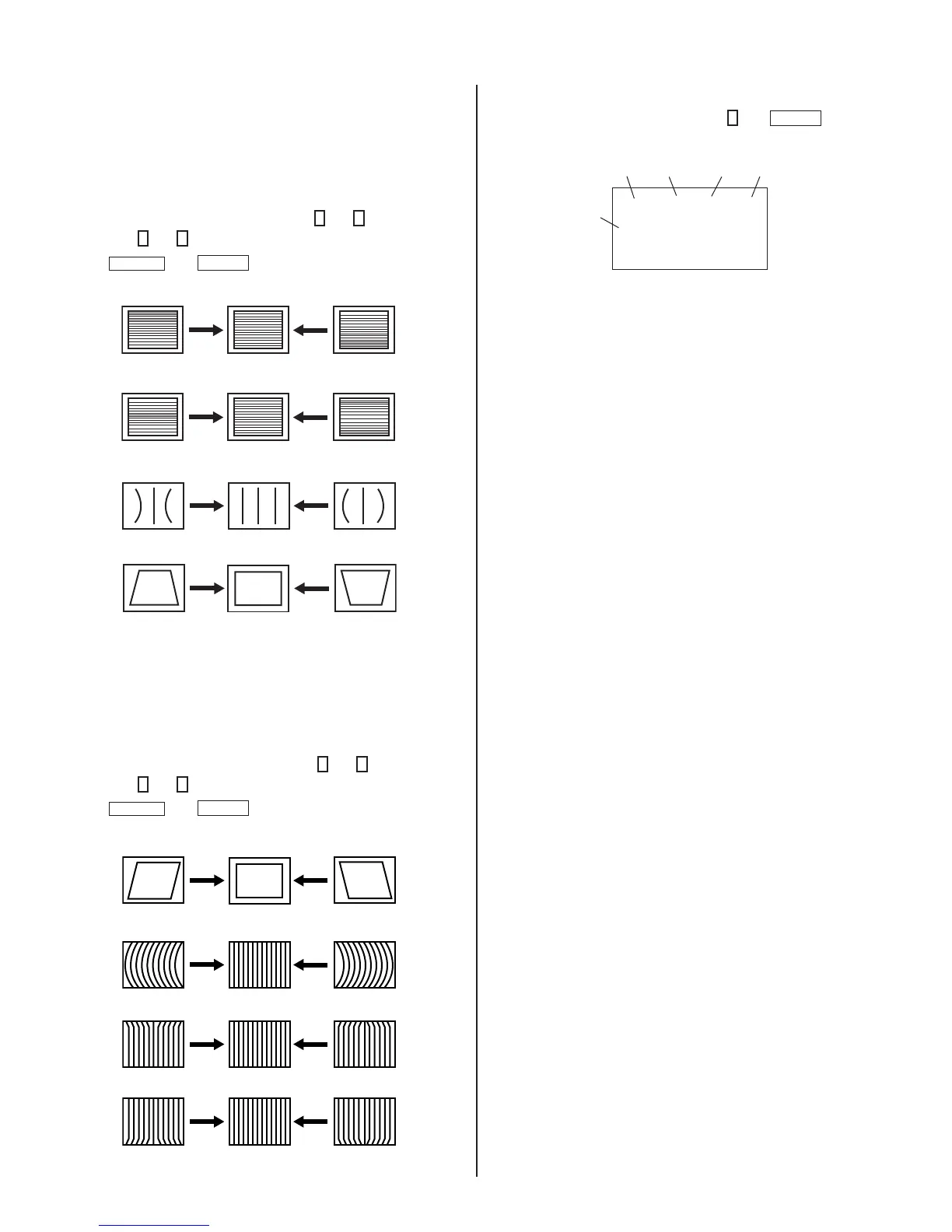

V LINEARITY (VLIN)
V CORRECTION (SCOR)
PIN AMP (PAMP)
HORIZONTAL TRAPEZOID (HTRP)
V. ANGLE (VANG), V. BOW (VBOW), UPPER
PIN (UPIN) AND LOW PIN (LPIN)
ADJUSTMENTS
1. Input a crosshatch signal.
2. Activate the Service Adjustment Mode.
3. Select VANG, VBOW, UPIN, and LPIN with
1
and
4
.
4. Adjust with
3
and
6
for the best picture.
5. Press
MUTING
then
ENTER
to save into the memory.
V ANGLE (VANG)
V BOW (VBOW)
UPPER PIN (UPIN)
LOW PIN (LPIN)
SERVICE ADJUSTMENT MODE MEMORY
1. After completing all adjustments, press
0
then
ENTER
.
Read From Memory
service defl vbow
ntsc
vchp
Category
Display
Item
Mode
Item
Data
Signal
Type
00000000 00000000
7
To Next Page
