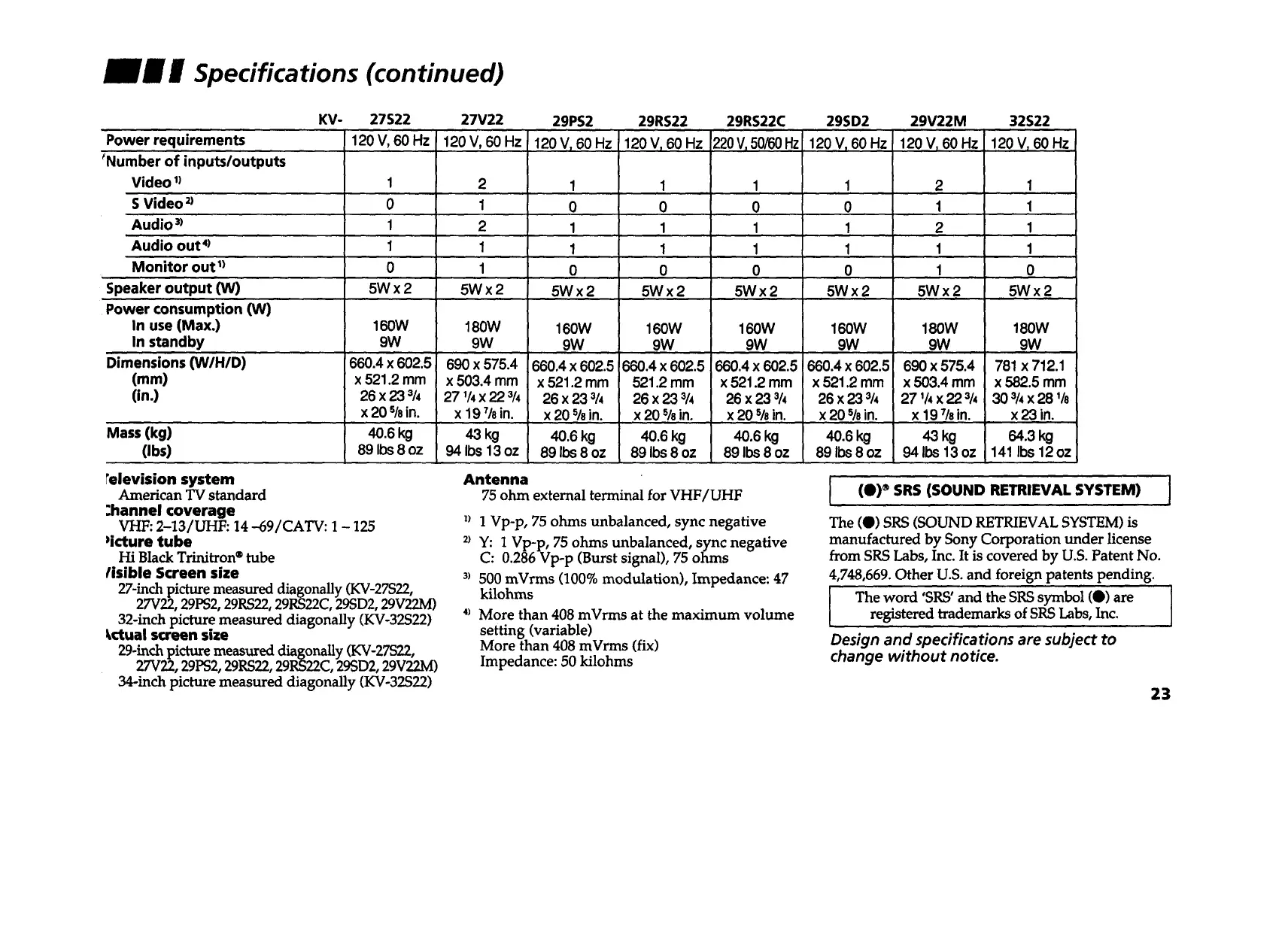

JJ W Specifications (continued)
Power requirements
_Number of inputs/outputs
Video 1)
S Video
Audi0 3)
Audio out 4)
Monitor out 1)
Speaker output ON)
Power consumption (W)
In use (Max.)
In standby
Dimensions (W/H/D)
(ram)
(in.)
KV-
27S22 27V22 29PS2 29RS22 29RS22C 29SD2 29V22M 32S22
120 V,60 Hz 120 V, 60 Hz 120 V, 60 Hz 120 V, 60 Hz 220V,50/60 Hz 120 V, 60 Hz 120 V, 60 Hz 120 V, 60 Hz
1 2 1 1 1 1 2 1
0 1 0 0 0 0 1 1
1 2 1 1 1 1 2 1
1 1 1 1 1 1 1 1
0 1 0 0 0 0 1 0
5Wx2 5Wx2 5Wx2 5Wx2 5Wx2 5Wx2 5Wx2 5Wx2
160W 180W 160W 160W 160W 160W 180W 180W
9W 9W 9W 9W 9W 9W 9W 9W
660.4x602.5 690x575.4 660.4 x 602.5 i660.4 x 602.5 660.4x602.5 !66o.4x6o2.5690x575.4 781 x712.1
x 521.2 mm x 503.4 mm x 521.2 mm 521.2 mm x 521.2 mm x521.2 mm x 503.4 mm x 582.5 mm
26 x 23 s/4 27 1/4x 22 3/4 26 x 23 3/4 26 x 23 s/4 26 x23 3/4 26 x 23 3/4 27 1/4x 22 3/4 30 3/4x 28 1/8
x20%in, x 19Thin. x20%in, x20%in, x20%in, x20%in, x 19_/8in. x23in.
Mass (kg) 40.6 kg 43 kg 40.6 kg 40.6 kg 40.6 kg 40.6 kg 43 kg 64.3 kg
(Ibs) 891bs8oz 941bs13oz 891bs8oz 891bs8oz 891bs8oz 891bs8oz 941bs13oz 1411bs12oz
_elevision system
American TVstandard
:hannel coverage
VHF: 2-13/UHF: 14 -69/CATV: 1 - 125
qcture tube
Hi Black Trinitron ®tube
lisible Screen size
27-inch picture measured diagonally (KV-27S22,
27V22, 29PS2, 29RS22, 29RS22C, 29SD2, 29V22M)
32-inch picture measured diagonally (KV-32S22)
actual screen size
29-inch picture measured diagonally (KV-27S22,
27V22, 29PS2, 29RS22, 29RS22C, 29SD2, 29V22M)
34-inch picture measured diagonally (KV-32S22)
Antenna
75 ohm external terminal for VHF/UHF
1) 1 Vp-p, 75 ohms unbalanced, sync negative
2) y: 1 Vp-p, 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
3) 500 mVrms (100% modulation), Impedance: 47
kilohms
_ More than 408 mVrms at the maximum volume
setting (variable)
More than 408 mVrms (fix)
Impedance: 50 kilohms
(O) ® SRS (SOUND RETRIEVAL SYSTEM)
The (e) SRS (SOUND RETRIEVAL SYSTEM) is
manufactured by Sony Corporation under license
from SRS Labs, Inc. It is covered by U.S. Patent No.
4,748,669. Other U.S. and foreign patents pending.
I The word 'SRS' and the SRS symbol (@) are
registered trademarks of SRS Labs, Inc.
Design and specifications are subject to
change without notice.
