Sony TRINITRON KV-34DRC430 - Page 18

KV-34DRC430/36DRC430
18
KV-34DRC430/36DRC430

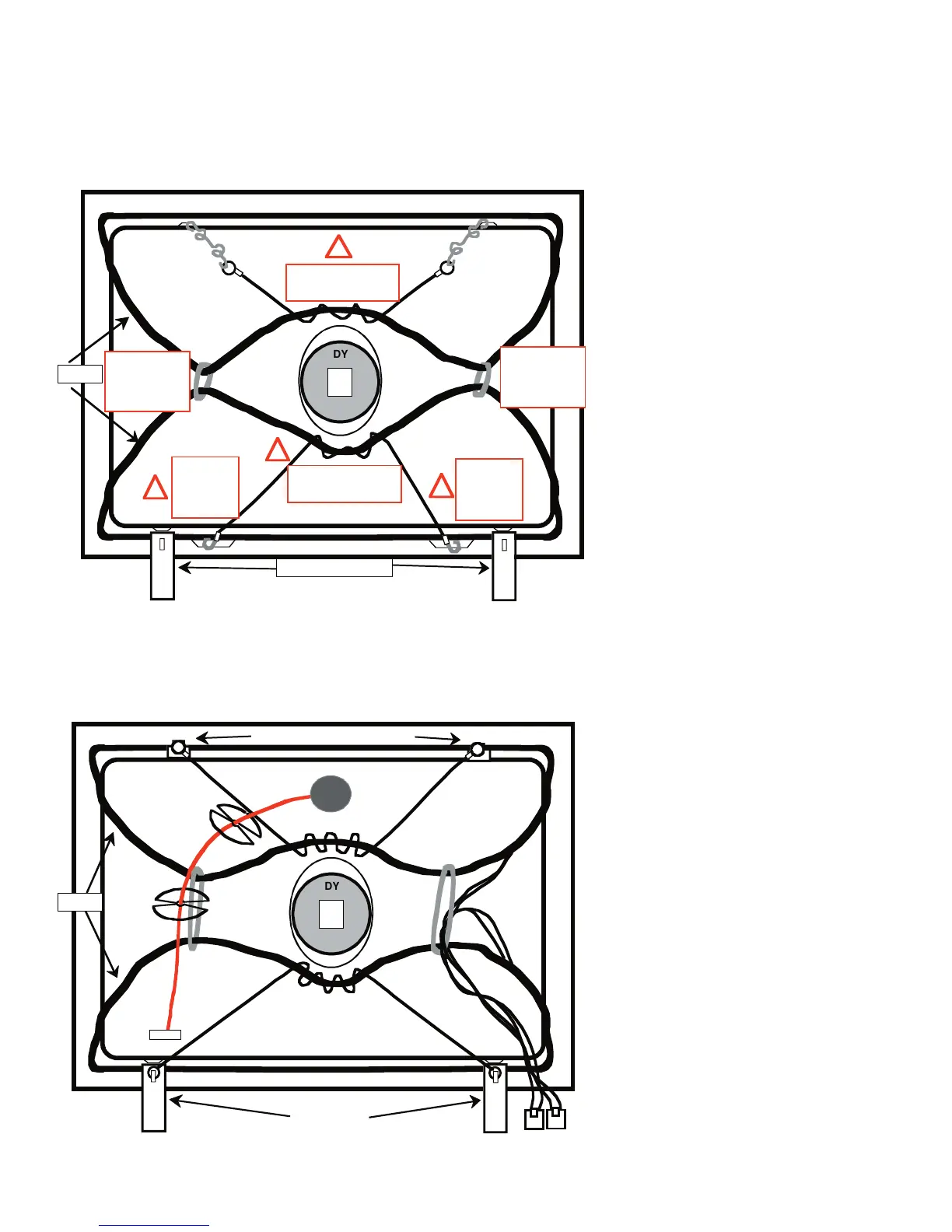

DGC ASSEMBLY CAUTION POINT (KV-36DRC430 ONLY)
DGC
DY
CRT BRACKET
1-910-000-13
DGC Restraint Cable
1-900-803-55
DGC Restraint Cable
!
Wrap x4 LOOP (for 30W)
Wrap x2 LOOP (for 34W)
NO SLACK ON WIRE!
!
Caution:
Make sure
hook is
secure on CRT
pierce!
Caution:
Make sure
hook is
secure on CRT
pierce!
!
!
Wrap x4 LOOP (for 30W)
Wrap x2 LOOP (for 34W)
NO SLACK ON WIRE!
Caution:
Make sure Cable
Tie is TIGHTENED
once CRT is in
Vertical postion.
Caution:
Make sure Cable
Tie is TIGHTENED
once CRT is in
Vertical postion.
2-022-978-01
Wire Clip (2 Places)
DY
Rotation
COIL
Cable Tie
4-041-041-02
DGC Clip (p/n: 4-102-284-01)
CRT BRKT
1-900-804-64
DGC Restraint Cable
(w/ x4 loops around DGC)
To FBT
1-900-804-64
DGC Restraint Cable
(w/ x4 loops around DGC)
DGC
Cable Tie
4-041-041-02
Cable Holder
4-084-918-01
x2
CRT WIRE DRESSING (KV-34DRC430 ONLY)
