KV-34DRC430/36DRC430
19
KV-34DRC430/36DRC430

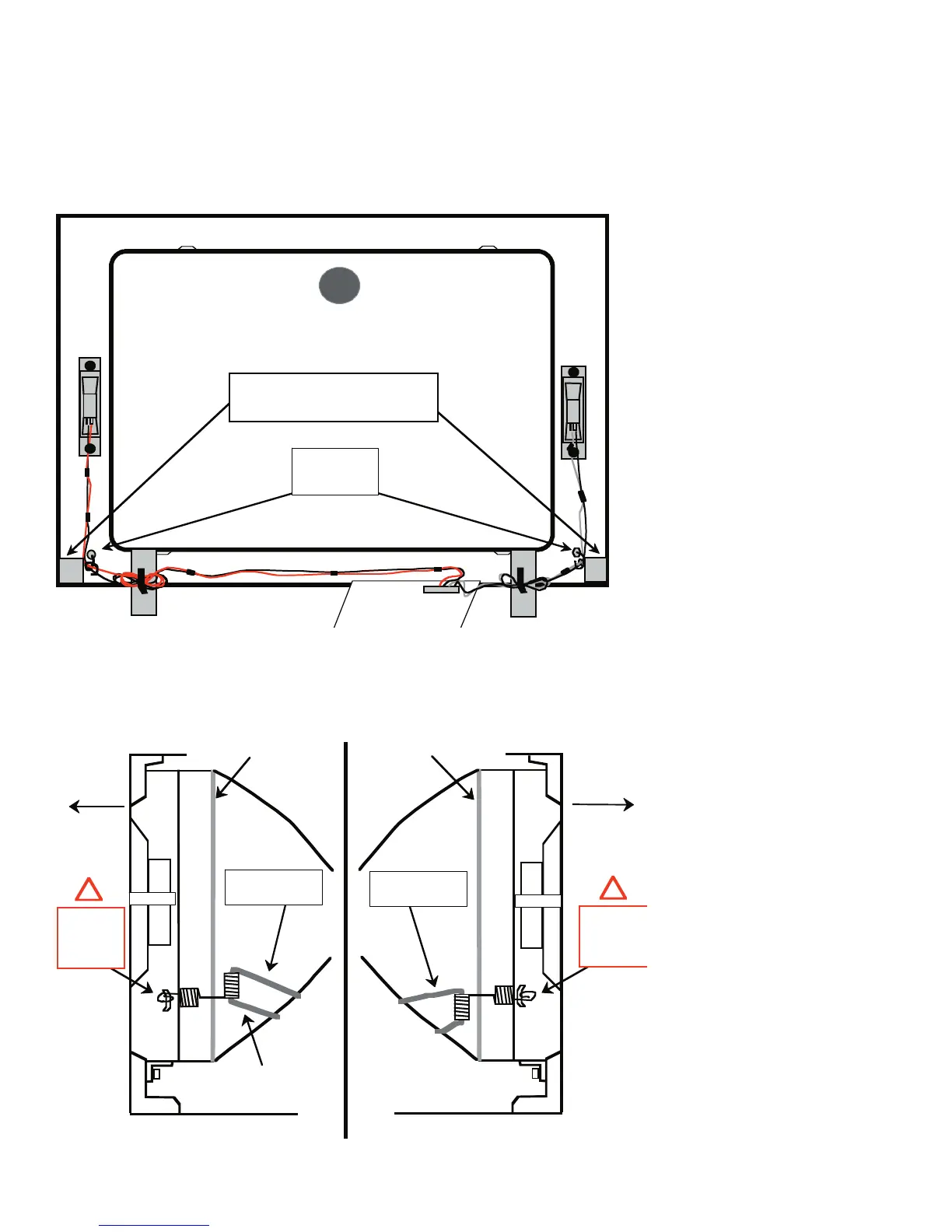

SPEAKER ASSEMBLY WIRE DRESSING
ECG ASSEMBLY CAUTION POINT
CRT Bracket
[AY]
CRT Bracket
CN527 8P
CLAMP
4-857-472-01
w/ 4x16mm screw
7-685-663-71
NOTE: Keep speaker wires away from pocket
in the beznet (gray area).
The wires can get pinched when installing
the rear cover (due to boss on the rear cover).
Caution:
Clip spring on
the OUTSIDE
of the CRT
pierce.
!
!
FRONT
FRONT
Earth Coating Groung
[ECG]
SPEAKER
SPEAKER
Make sure braided
wire does not twist or
sag on CRT surface.
Caution:
Clip spring on
the OUTSIDE
of the CRT
pierce.
CRT Frit-Line
CRT Frit-Line
Make sure braided
wire does not twist or
sag on CRT surface.
