– 11 –
KV-DR29M39/DR29M63/
KV-DR29M69/DR29M89
RM-991
SECTION 2
SERVICE JIG

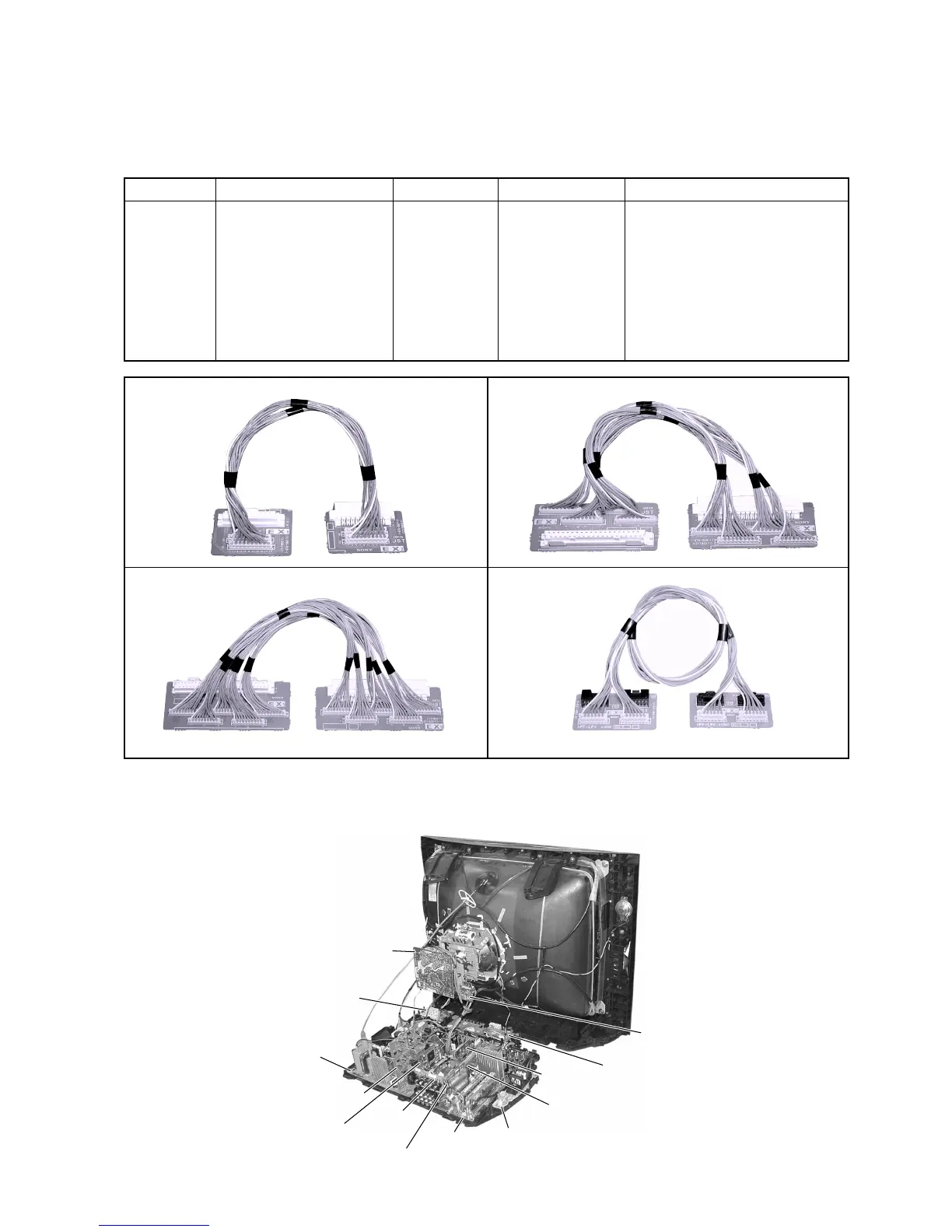

2-1. JIGS REQUIRED FOR SERVICING
REF NO. DESCRIPTION QUANTITY PART NO. REMARK
J-1 TOOL(20P),SERVICE 1 3-702-763-01 For A to BC1 board extension
1 For A to P board extension
(except KV-DR29M63)
J-2 TOOL(40P),SERVICE 1 3-702-764-01 For A to B3 board extension
J-3 TOOL(50P-A),SERVICE 1 3-702-765-01 For D to D5 board extension
J-4 TOOL(7PX2),SERVICE 1 3-702-775-01 For A to V2 board extension
(except KV-DR29M63)
SECTION 3
CIRCUIT BOARDS LOCATION
J-1 J-2
J-3
J-4
D Board
D5 Board
B3 Board
J Board
P Board (except KV-DR29M63)
A Board
F1 Board
BC1 Board
V2 Board
(except KV-DR29M63)
H1 Board
VM Board
H2 Board
C Board
To Next Page
