KV-DR29M39/DR29M63/
KV-DR29M69/DR29M89
RM-991
SECTION 8
EXPLODED VIEWS
• Items marked " ∗ " are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
The components identified by
shading and mark ! are critical
for safety.
Replace only with part number
specified.
NOTE:
• Items with no part number and no
description are not stocked because
they are seldom required for routine
service.
• The construction parts of an assembled
part are indicated with a collation
number in the remark column.
REF. NO. PART NO. DESCRIPTION REMARK
1 4-302-404-03 SCREW (WASHER HEAD)(+P4 x 16)
2 1-825-163-11 SPEAKER (5CM)
3 1-825-164-11 SPEAKER (13 x 6CM)
4 * 4-086-708-01 BRACKET,SPEAKER
5 4-374-745-21 CUSHION (A)
6 X-4040-341-1 REAR COVER ( p 14 SCREWS)
7 * X-4039-979-1 BRACKET ASSY, WOOFER 5
(KV-DR29M39/DR29M69/DR29M89)
* 4-086-709-01 BRACKET , WOOFER (29) (KV-DR29M63)

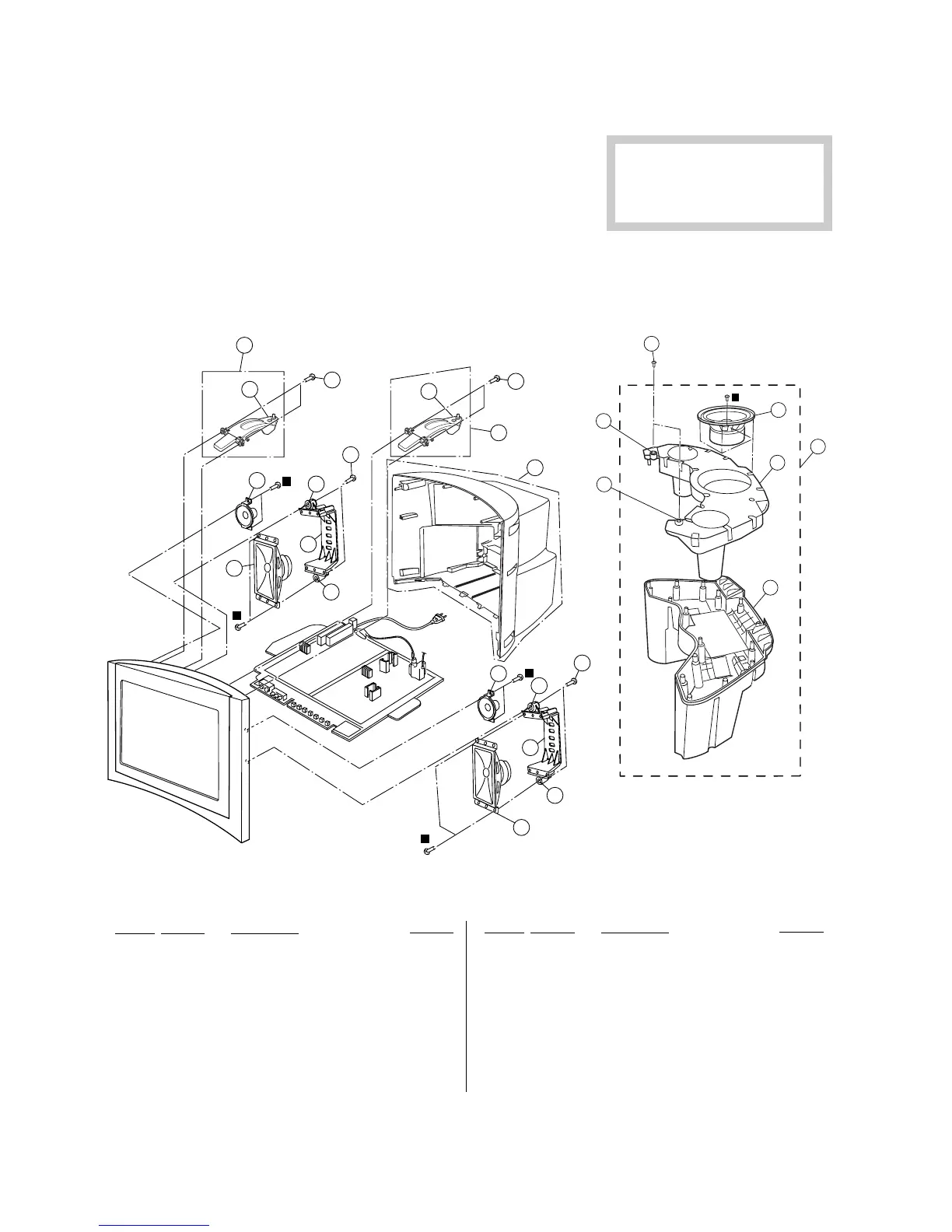

8-1. SPEAKER BRACKET
p : 7-685-663-71 SCREW +BVTP 4 × 16
6
2
1
3
4
5
5
2
1
1
3
5
5
5
7
7
1
5
4
8-2. 3D SPEAKER
p : 7-685-663-71 SCREW +BVTP 4 × 16
REF. NO. PART NO. DESCRIPTION REMARK
51 * 4-087-460-01 3D BOX, TOP ( p 20 SCREWS)
52 * 4-087-461-01 3D BOX, BOTTOM
53 1-825-162-11 SPEAKER (16CM)
54 4-064-929-02 SCREW, TP+TWH 4x25
55 A-1601-923-A 3D BOX ASSY 51-53
51
52
55
54
5
5
53
