– 39 –
KV-DR29M39/DR29M63/
KV-DR29M69/DR29M89
RM-991
GEO 4 HSZ (H SIZE)
GEO 0E PPH (V TRAPEZOID ADJUSTMENT)
GEO 07 UPN (UPPER CORNER PIN)
GEO 08 LPN (LOWER CORNER PIN)
GEO 0 VSZ (V SIZE)
GEO 5 HPS (H POSITION)
GEO 0F AGL (AFC.ANGLE)
GEO 10 BOW (AFC.BOW)
GEO 6 PAP (PIN AMP)
GEO 1 VPS (V POSITION)
GEO 2 VLN (V LINEARITY)
GEO 3 SCO (VERTICAL S-Correction)
PICTURE DISTORTION ADJUSTMENT (2)
V SAWO WAVE LEVEL GAIN CONTROL (GEO 11 HTR)

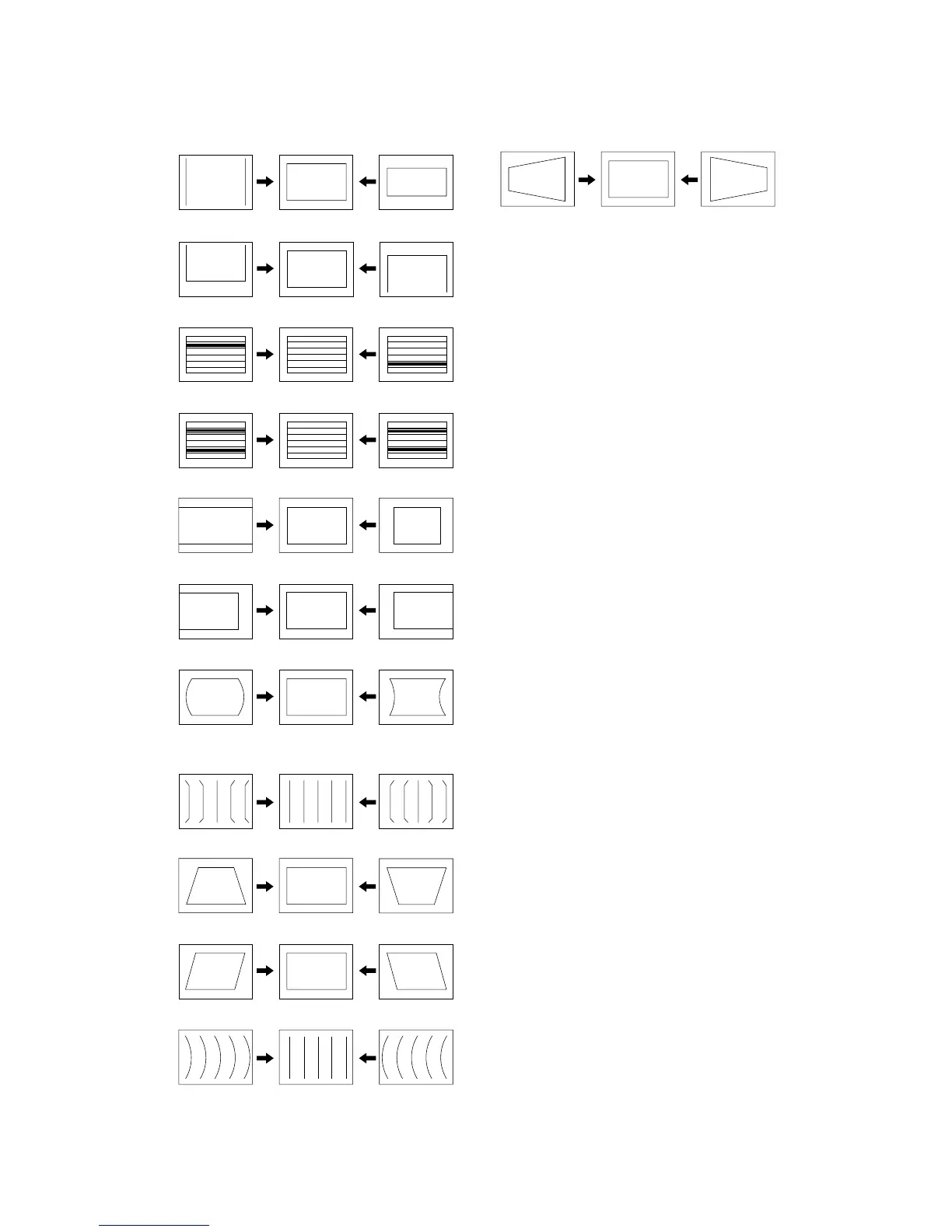

6-7. PICTURE DISTORTION ADJUSTMENT (1)
Item Number 00 – 0B
To Next Page
