Sony TRINITRON KV-DR29M39 - 1 Disassembly; Rear Cover Removal; Speaker Box Removal; Speaker Removal

– 7 –
KV-DR29M39/DR29M63/
KV-DR29M69/DR29M89
RM-991
SECTION 1
DISASSEMBLY

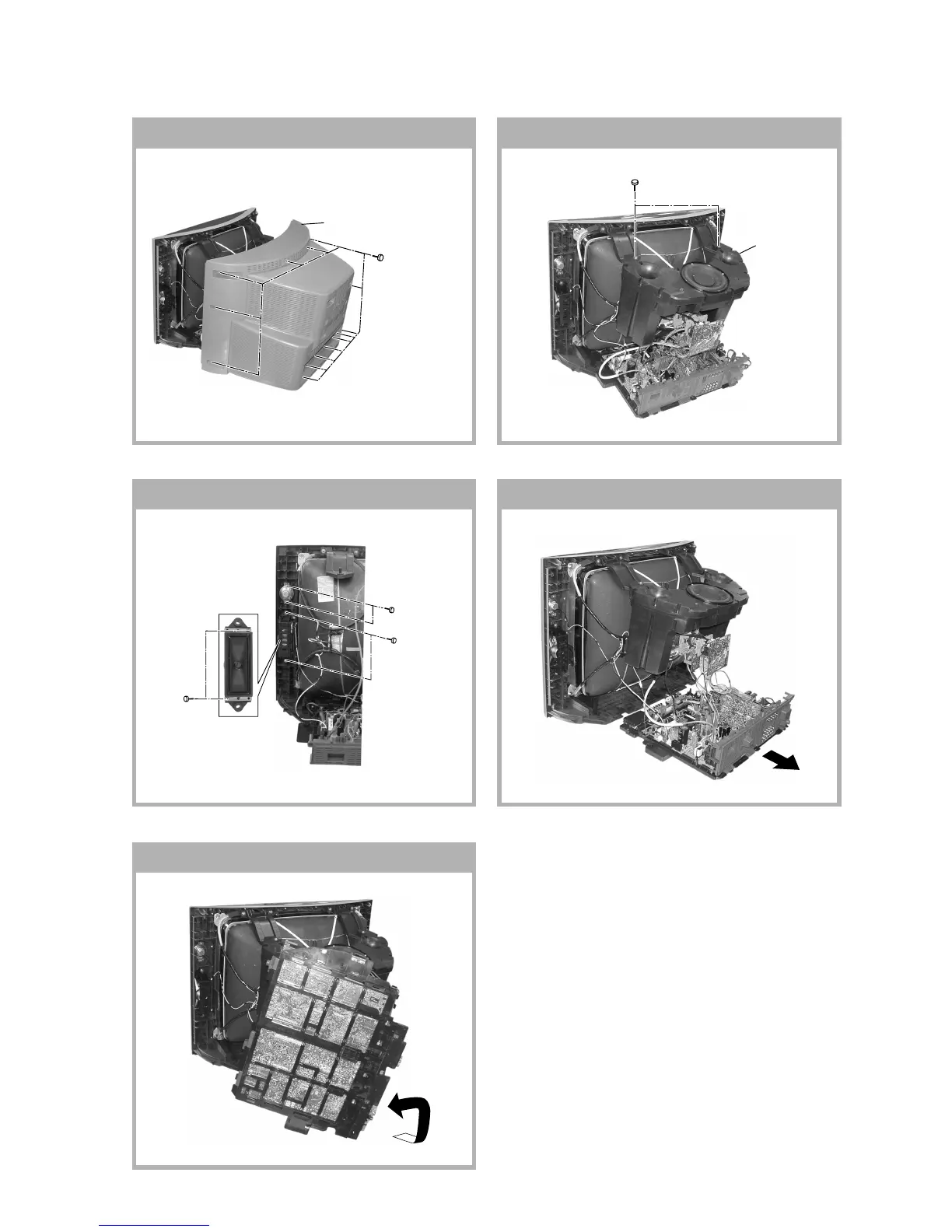

1-1. REAR COVER REMOVAL
1-2. 3D SPEAKER BOX REMOVAL
1-3. SPEAKER REMOVAL 1-4. CHASSIS ASSY REMOVAL
1-5. SERVICE POSITION
1 Fourteen screws
(+BVTP 4 × 16)
2 Rear cover
1 Two screws
(TP+TWH 4 × 25)
2 3D Speaker
box assy
1 Two screws
(+BVTP 4 × 16)
3 Two screws
(+BVTP 4 × 16)
2 Two screws
(Washer Head)
(+P4x16)
