– 146 –
SUBJECT : BEZEL ASSY AND CABINET ASSY
SUFFIX CHANGE
SUPPLEMENT-2
MODEL COMMANDER DEST. CHASSIS NO.
KV-DR29M39 RM-991 Oceania SCC-U81A-A
KV-DR29M63 RM-991 Thailand SCC-U82C-A
KV-DR29M69 RM-991 GE SCC-U84A-A
KV-DR29M89 RM-991 ME SCC-U83A-A
AG3E CHASSIS
MODEL COMMANDER DEST. CHASSIS NO.
Note : The changes apply to all the models above.

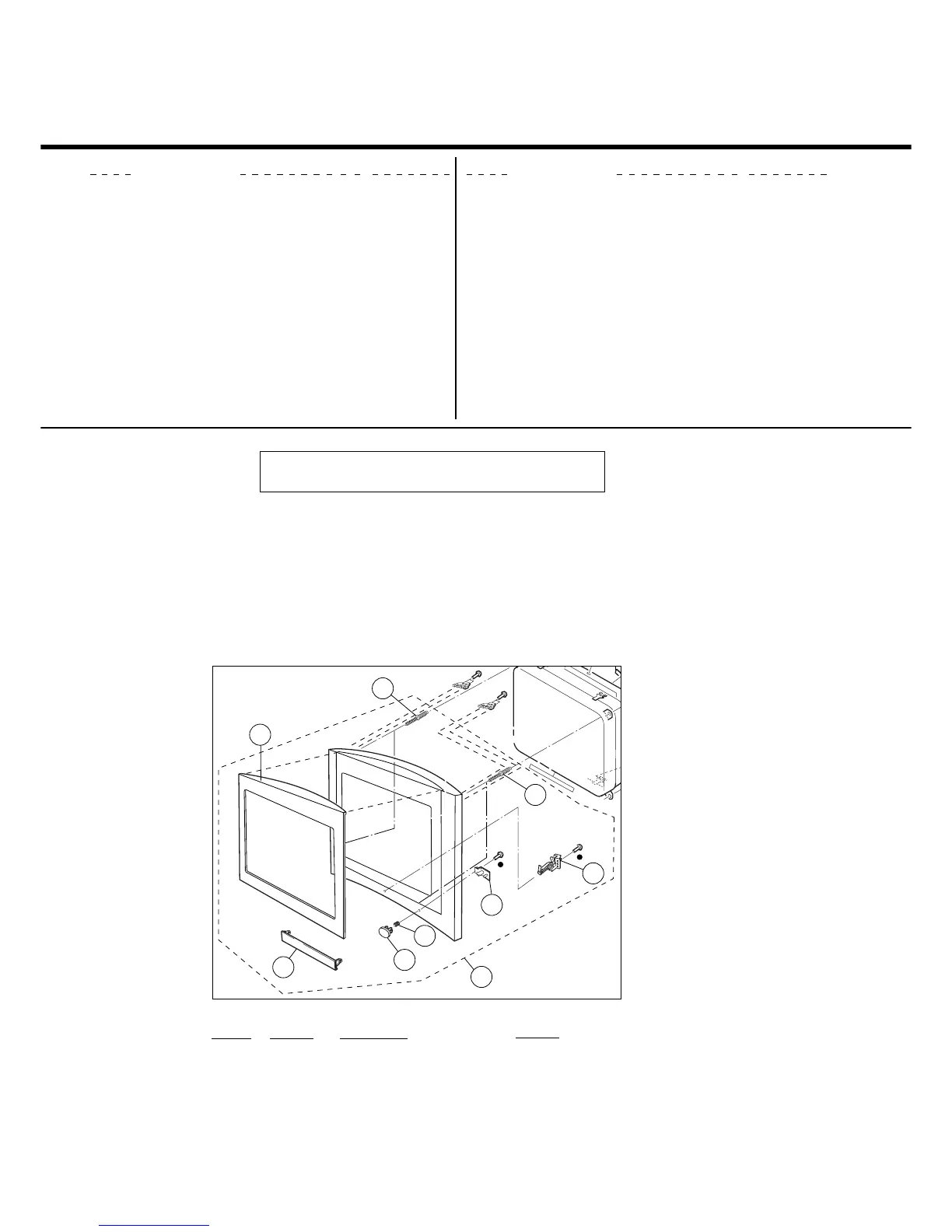

SECTION 8. EXPLODED VIEWS
8-4. PICTURE TUBE
(see page 111 ~ 112)
173
173
172
175
153
152
151
154
174
☛
☛
REF. NO. PART NO. DESCRIPTION REMARK
151 X-4040-251-2 CABINET ASSY 152-154, 172-175
(KV-DR29M39/DR29M69)
X-4039-977-2 CABINET ASSY (KV-DR29M63)
175 X-4039-976-2 BEZEL ASSY (x 18 SCREWS)
(KV-DR29M63/DR29M69/DR29M89)
