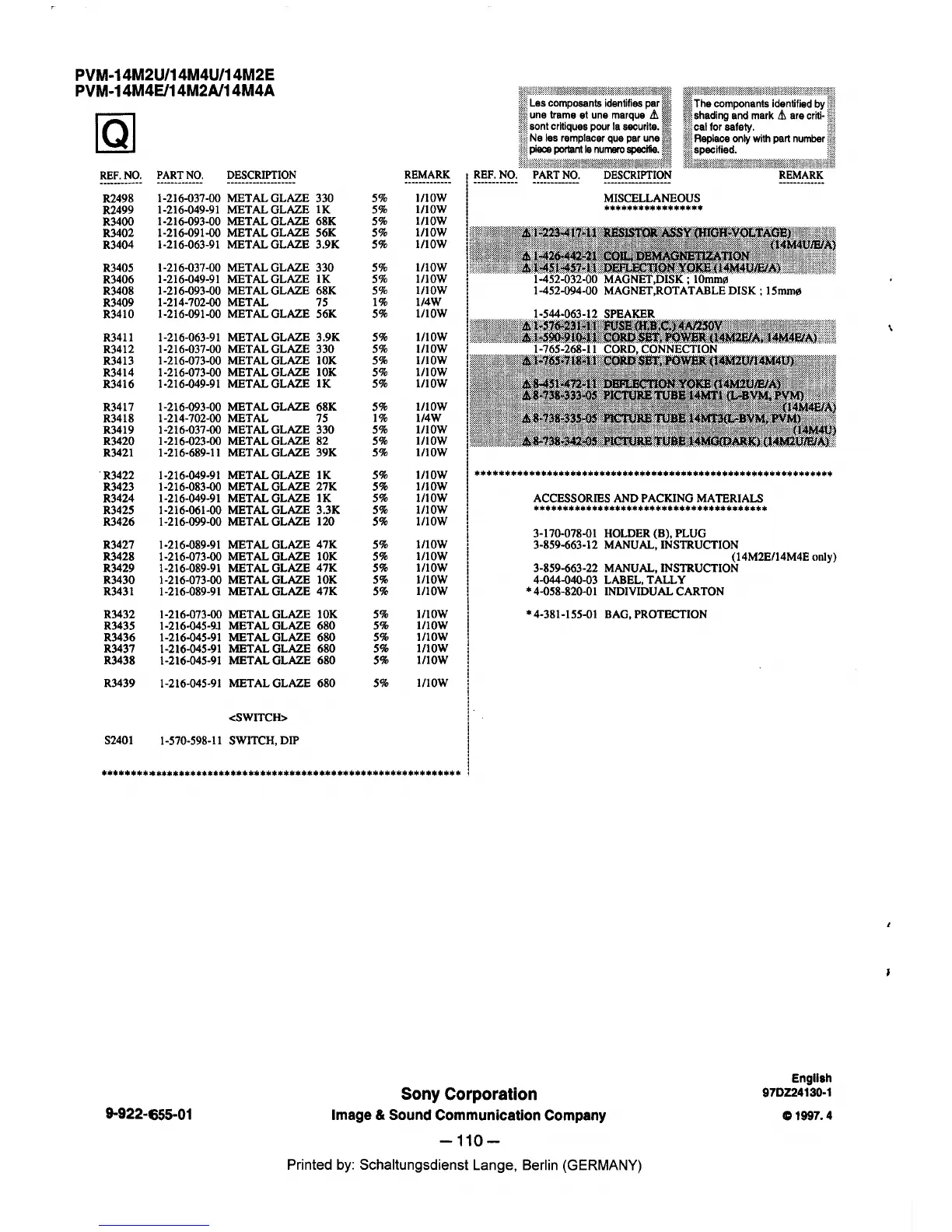

Sony Trinitron PVM-14M4A - Page 92

PVM-14M2U/14M4U/14M2E
PVM-14M4E/14M2A/14M4A
[g]
REF.NO.
PART NO. DESCRIPTION
R2498
1-216-037-00 METAL GLAZE 330
R2499
1-216-049-91 METAL GLAZE lK
R3400
1-216-093-00 METAL GLAZE 68K
R3402
1-216-091-00 METAL GLAZE 56K
R3404
1-216-063-91 METAL GLAZE 3.9K
R3405
1-216-037-00 METAL GLAZE 330
R3406
1-216-049-91 METAL GLAZE lK
R3408
1-216-093-00 METALGLAZE 68K
R3409
1-214-702-00 METAL
75
R3410
1-216-091-00 METAL GLAZE 56K
R3411
1-216-063-91 METAL GLAZE 3.9K
R3412
1-216-037-00 METAL GLAZE 330
R3413
1-216-073-00 METAL GLAZE IOK
R3414
1-216-073-00 METAL GLAZE l0K
R3416
1-216-049-91 METAL GLAZE lK
R3417
1-216-093-00 METAL GLAZE 68K
R3418
1-214-702-00 METAL
75
R3419
1-216-037-00 METAL GLAZE 330
R3420 1-216-023-00 METALGLAZE 82
R3421
1-216-689-11 METALGLAZE 39K
.R3422
1-216-049-91 METAL GLAZE lK
R3423
1-216-083-00 METAL GLAZE 27K
R3424 1-216-049-91 METAL GLAZE lK
R3425 1-216-061-00 METAL GLAZE 3.3K
R3426
1-216-099-00 METAL GLAZE 120
R3427 1-216-089-91 METAL GLAZE 47K
R3428 1-216-073-00 METAL GLAZE IOK
R3429 1-216-089-91 METAL GLAZE 47K
R3430 1-216-073-00 METALGLAZE IOK
R3431 1-216-089-91 METAL GLAZE 47K
R3432
1-216-073-00 METAL GLAZE IOK
R3435 1-216-045-91 METAL GLAZE 680
R3436 1-216-045-91 METALGLAZE 680
R3437 1-216-045-91 METALGLAZE 680
R3438 1-216-045-91 METALGLAZE 680
R3439 1-216-045-91 METAL GLAZE 680
<SWITCH>
S2401
1-570-598-11 SWITCH, DIP
REMARK
5% 1/I0W
5%
1/I0W
5%
1/I0W
5%
1/I0W
5%
1/IOW
5%
1/I0W
5%
1/l0W
5%
1/IOW
1%
l/4W
5%
1/l0W
5% 1/I0W
5% 1/I0W
5%
1/IOW
5% 1/IOW
5%
1/IOW
5% 1/I0W
1% l/4W
5% 1/I0W
5% 1/I0W
5% 1/IOW
5% 1/I0W
5% 1/IOW
5% 1/IOW
5%
1/I0W
5% 1/l0W
5%
1/I0W
5% 1/IOW
5%
1/I0W
5% 1/IOW
5%
1/IOW
5% 1/I0W
5% 1/IOW
5% 1/l0W
5%
1/l0W
5% 1/IOW
5%
1/IOW
Les composants identifies par
une trame et une marque hi
sont critiques pour la securite.
Ne les remplacer que par une
piece por1anl le numero specifie.
The components identified by
shading and mark hi are crlti-
cal for safety.
Replace only with part number
specified.
REF. NO. PART NO.
DESCRIPTION
MISCELLANEOUS
*****************
REMARK
*************************************************************
ACCESSORIES AND PACKING MATERIALS
****************************************
3-170-078-01 HOLDER (B), PLUG
3-859-663-12 MANUAL, INSTRUCTION
(14M2E/14M4E only)
3-859-663-22 MANUAL, INSTRUCTION
4-044-040-03 LABEL, TALLY
* 4-058-820-01 INDIVIDUAL CARTON
* 4-381-155-01 BAG, PROTECTION
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Sony Corporation
9-922-655-01
Image & Sound Communication Company
-110-
Printed by: Schaltungsdienst Lange, Berlin (GERMANY)
English
97DZ24130·1
01997.4
