833 User Guide
18
Outputs

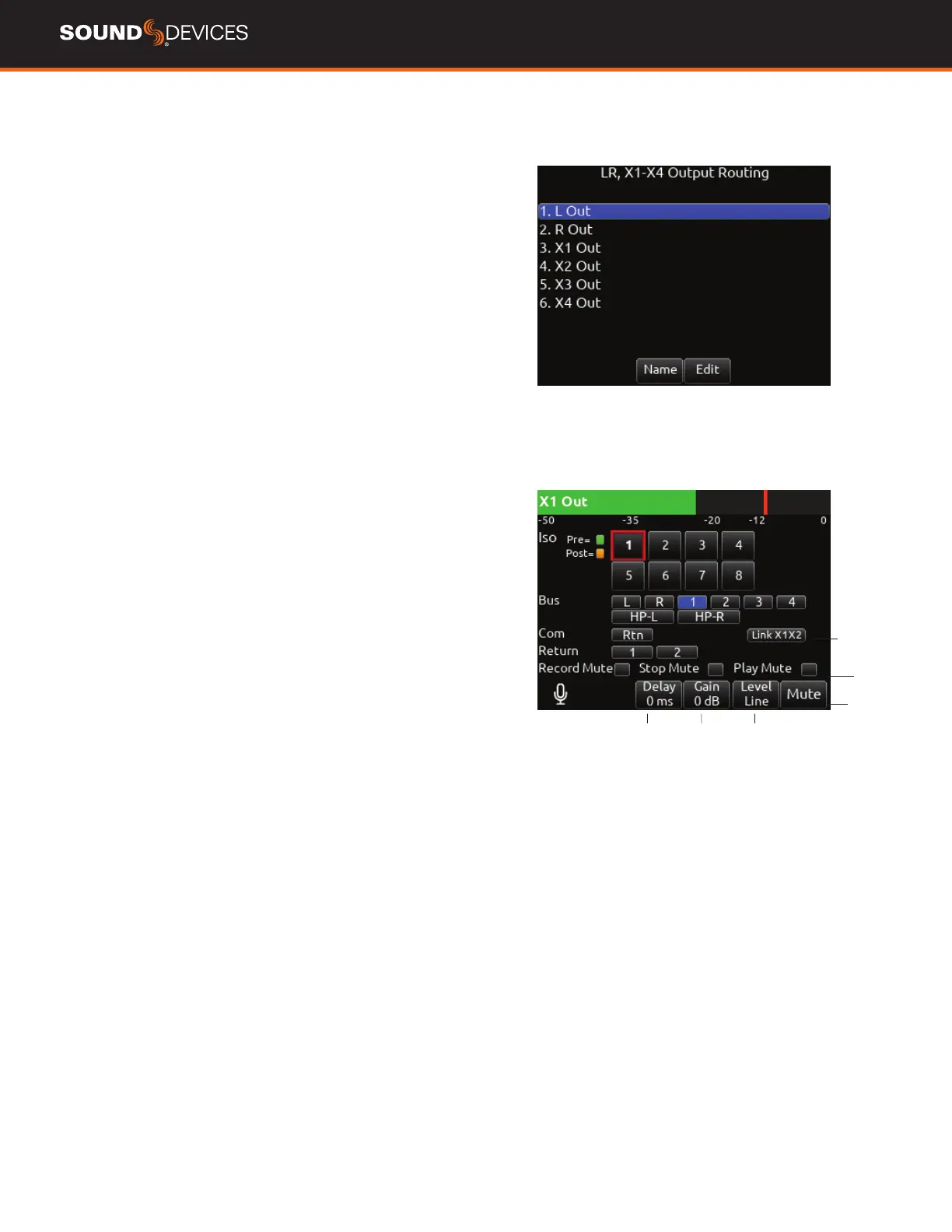

1. LR, X1-X4 OUTPUT ROUTING
Selects routing for L,R and X1-X4 outputs [L Out, R Out, X1, X2, X3,
and X4 Out]
Note:
Only a single source can be routed to an Output. If multiple
sources need to be routed, use a Bus.
NAME Opens a keyboard for naming the selected Output. Output
names appear in output meter views when a meter view preset has
Track Names enabled.
EDIT Enters the Output screen. The bus can also be entered by press-
ing the Sel or HP knob.
A. ISO Selected source will contribute to the Output. Green = Pre-
fade, Orange = Post-fade [1-8].
B. BUS [L,R, 1-4, HP-L, HP-R].
C. COM Routes Com Return directly to the output.
D. RETURN Routes Return 1 or 2 directly to the output.
E. RECORD MUTE Selects automatic muting of the output when in
Record mode. [Off*, On]
F. STOP MUTE Selects automatic muting of the output when in Stop
mode. [Off*, On]
G. PLAY MUTE Selects automatic muting of the output when in Play
mode. [Off*, On]
H. DELAY The output delay is continuously-variable in milliseconds
from 0-500 ms.
I. GAIN Selects amount of attenuation applied to the output. Toggle
the ** to select [0 dB to -50 dB and -inf]
J. LEVEL Selects output level type. [Line, -10, Mic]
K. MUTE Indicates mute status of output (Orange = muted) Toggle
Mute On/Off with the “Fav” toggle.
L. LINK *-* Selects linking for two even-to-odd numbered adjacent
outputs. Links gain, mutes, and delays.
2. USB
Selects routing for USB output.
A. ISO Selected source will contribute to the Output. Green = Pre-
fade, Orange = Post-fade [1-8].
B. BUS [L,R, 1-4].
C. OUTPUT [L,R,X1,X2,X3,X4].
Delay Attn Type
Mute
Auto Mute
Link
To Next Page
