Sound Devices 833 User Guide

833 User Guide
24

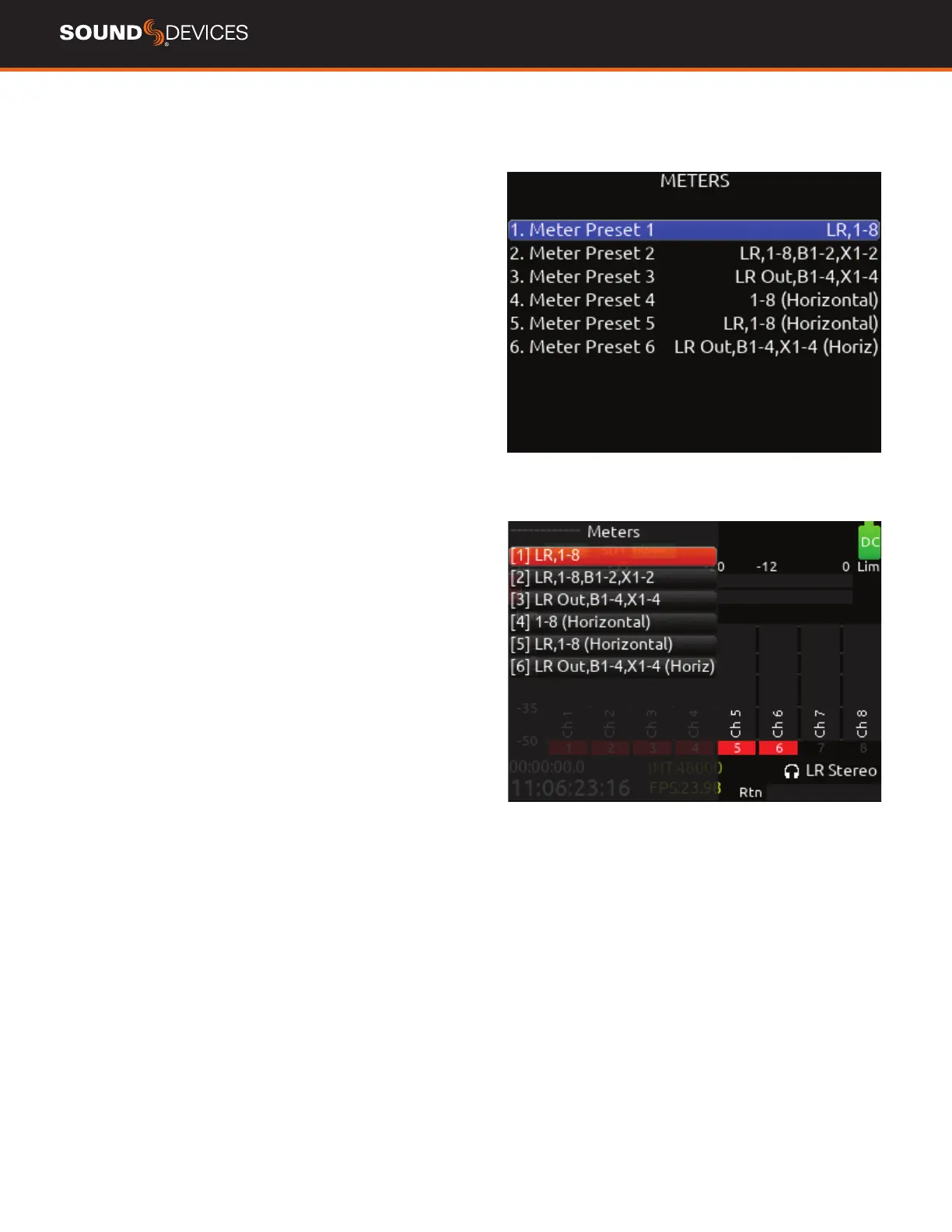

Meters
Selected Preset
METER PRESETS 1-6
SL-2 RECEIVER OVERVIEW Selects the Peak Hold Time and Meter
range for the SL-2 Receiver Overview audio level meters. Menu not
available unless an SL-2 is connected.
A. PEAK HOLD TIME Selects the peak hold time for the meter
preset. [Off, 1*-5s., Innity]
B. METER RANGE Selects the range of the meters from bottom to
top of scale. [50 dB*, 40 dB, 20 dB]
C. METER VIEW Selects the meters to be viewed in the current
preset. [LR,1-8*, LR 1-8,B1-2,X1-2, LR Out B1-4,X1-4, 1-8
(Horizontal), LR,1-8 (Horizontal), LR Out,B1-4,X1-4(Horiz).
D. TRACK NAMES Selects display of track name and/or output
name in meters. [Enabled*, Disabled]
E. GRAY METERS Selects gray meter when record track is disarmed.
[When disarmed*,Off]
Meter View Menu Shortcuts
WHEN IN LR, OUTPUTS AND LR, BUSES METER VIEWS Turn
the Select knob to scroll to an output or bus. Pressing select acts as a
shortcut to that outputs or bus routing screen.

Sound Devices 833 Specifications

General

Number of Channels	8
Mic Inputs	6
Main Outputs	2
Aux Outputs	4
Headphone Output	1
Bit Depth	24-bit
Timecode	Yes
Dynamic Range	120 dB
Microphone Preamps	6
Analog Outputs	4
Type	Portable Mixer-Recorder
Line Inputs	6
AES Inputs	2
Sampling Rate	up to 192 kHz
Recording Media	SD, SDHC, SDXC
Power	Battery or External DC
Frequency Response	10 Hz to 80 kHz
THD+N	0.005%
Digital Outputs	2
