833 User Guide
39

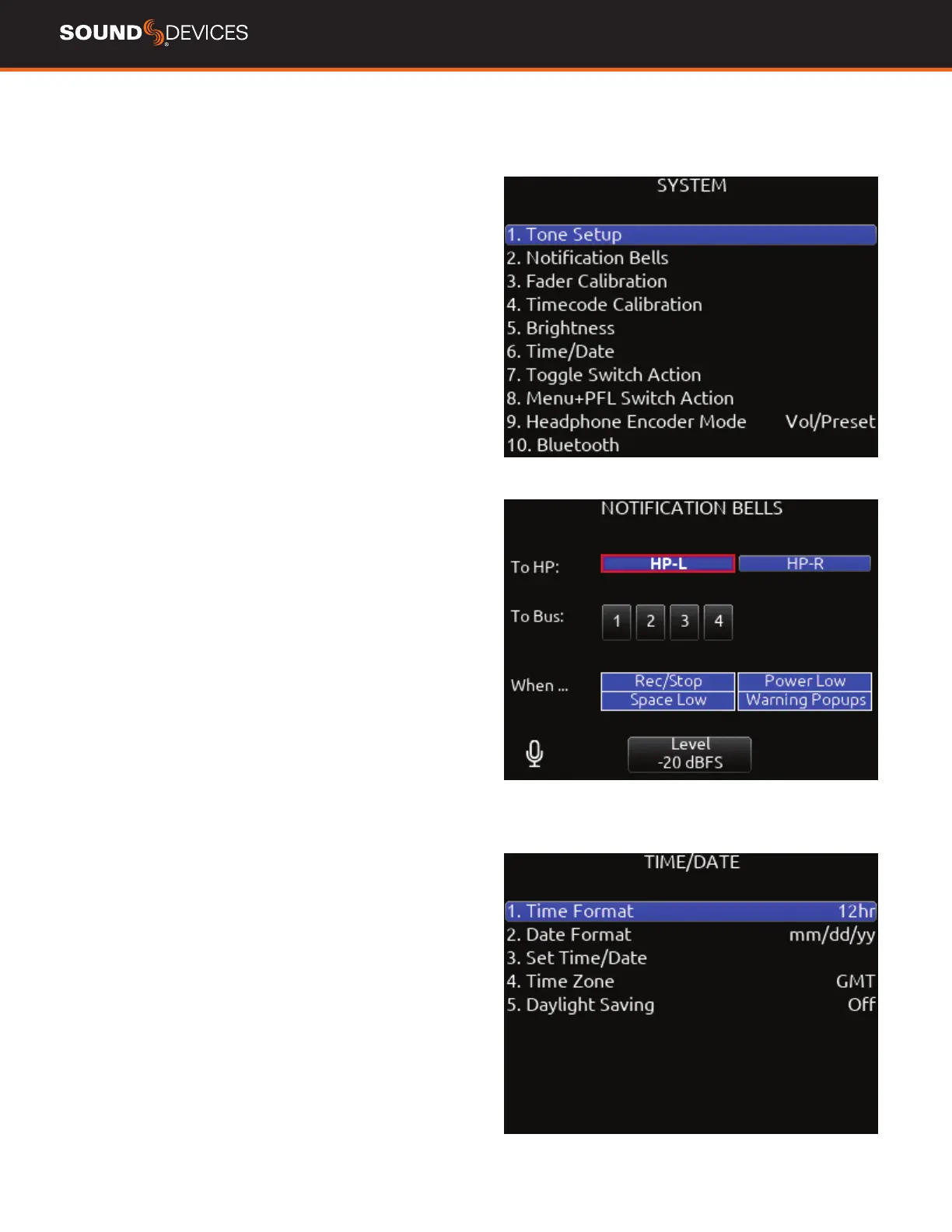

System
TONE SETUP Selects the level, frequency, and routing of the internal
tone generator.
a. Level- Selects the level of the tone generator from -20 - 0 dBFS in 1
dB increments. [-20 - 0 dBFS]
b. Frequency- Selects the frequency of the tone from 100 to 10 kHz in
10 Hz steps. [100-10 kHz]
c. Track- [1-8]
d. Output- [L,R, X1-X4]
e. Bus- [L,R, 1-4]
NOTIFICATION BELLS Selects settings for the notication bells.
a. To HP- Routes notication bell tones to the headphones. [HP-L,
HP-R]
b. To Bus- Routes notication bell tones to the buses. [L,R, 1-4]
c. When…- Selects when the notication bell tones are used. [Rec/
Stop, Space Low, Power Low, Warning Popup].
d. Level- Selects the level at which the notication bell tones will be
played in 1 dB increments. [Muted, -60 to -12dBFS]
FADER CALIBRATION Selects the option to manually calibrate all
faders.
TIMECODE CALIBRATION Tunes the 833 system clock to an
external LTC signal.
BRIGHTNESS
Selects the brightness of the LED display and front
panel LEDs.
a. LED Brightness- Selects the front panel LED brightness in 1% steps.
[1%-100%].
b. Selects the front panel LCD display brightness in 10% steps. [10%-
100%].
TIME/DATE Selects the current date and time.
a. Time Format [12*, 24 hr].
b. Date Format [mm/dd/yy*, dd/mm/yy, yy/mm/dd].
c. Set Time/Date Selects the current date and time.
d. Time Zone [-12 to +13 hours GMT].
e. Daylight Saving [On, Off*].
TOGGLE SWITCH ACTION
Chooses what function is assigned to
the toggle switches.
MENU + PFL SWITCH ACTION Chooses what menu is assigned to
a Menu + PFL Switch action.
HEADPHONE KNOB MODE Selects default operation of the HP
knob. [Vol/Preset*, Preset/Vol]
BLUETOOTH Enables or disables Bluetooth LE [On, Off]. Set to On to
connect to iPad or Android SD-Remote application. Setup a password
to protect against unauthorized remote control.
EXPANSION PORT Enables powering of accessories via the top
panel multi-pin port [On, Off]. Accessories include the XL-AES and
SL-2.
VERSION INFO Indicates current rmware version.
REGULATORY Displays relevant compliance information.
FIRMWARE UPDATE Selects any *PRG update les present on any
media.
PLUGINS Shows plugins installed on the 8-Series mixer-recorder.
Activates plugins on the SD card stored as LIC les. Plugins can be
purchased at store.sounddevices.com
