833 User Guide
6

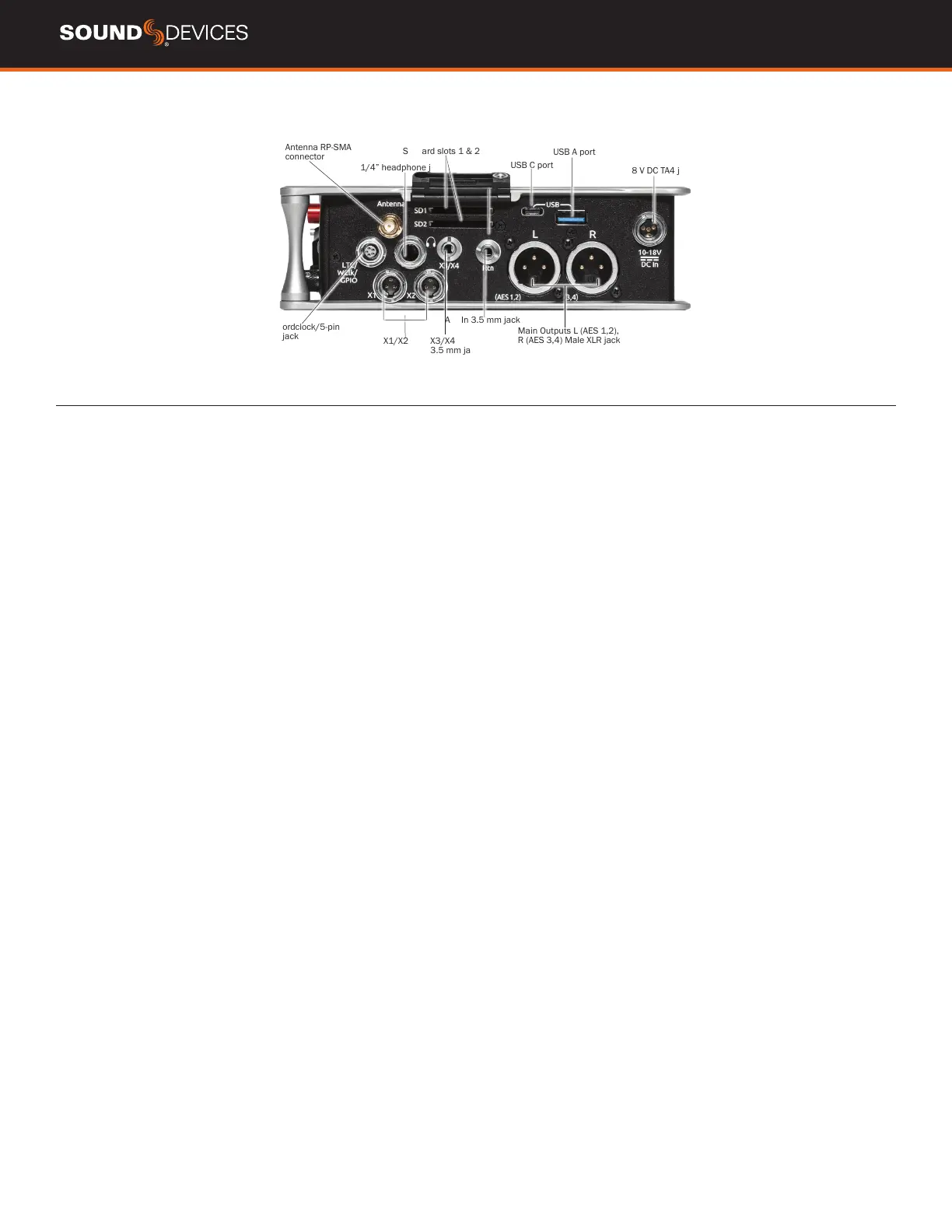

RIGHT SIDE PANEL
SD Card slots 1 & 2
USB C port
USB A port
10-18 V DC TA4 jack
LTC/Wordclock/5-pin
LEMO jack
1/4” headphone jack
X3/X4
3.5 mm jack
Antenna RP-SMA
connector
X1/X2
TA3 jacks
Aux In 3.5 mm jack
Main Outputs L (AES 1,2),
R (AES 3,4) Male XLR jacks
ANTENNA RP-SMA-MALE CONNECTOR Connects to included
external antenna for Bluetooth LE.
SD 1 AND 2 CARD SLOTS Insert SD card media for recording.
Insert label side down.
USB C PORT
1. File transfer.
2. 2-in/2-out USB audio streaming
USB A PORT
1. USB keyboard.
2. USB to SD-Remote Android app.
3. USB to the CL-12 and other approved 3rd party fader controllers.
4. Supports USB hubs.
10-18V DC TA4 JACK Accepts DC voltages from 10–18 V for
powering. [pin-1- GND, pin-2- Smart Battery DATA, pin-3- Smart
Battery CLOCK, pin-4- +10-18 VDC].
LTC/WORDCLOCK/5-PIN LEMO JACK Timecode I/O, Wordclock.
[pin-1- GND, pin-2- LTC or WORDCLOCK IN, pin-5- LTC or WORDCLOCK
OUT (Pins 2 and 5 are software selectable)].
¼” HEADPHONE JACK 1/4-inch TRS headphone output. Warning!
This output can drive headphones to potentially dangerous levels.
[Sleeve = ground, tip = left, ring = right].
X3/X4 3.5 MM JACK Unbalanced stereo 3.5 mm female connector.
Routing determined in the Outputs menu. [Sleeve = ground, tip = X3,
ring = X4].
X1/X2 TA3 JACKS Line, -10, or Mic level selected in Main menu
OUTPUTS section. Routing determined in the Outputs menu. [pin-1 =
Ground, pin-2 = hot (+), pin-3 = cold (-). Float pin-3 to un-balance].
AUX IN 3.5 MM JACK Auxilary input used for extra inputs or camera
return [Sleeve = ground, tip = left, ring = right].
MAIN OUTPUTS L (AES 1,2), R (AES 3,4) XLR JACKS Analog
outputs on standard 3-pin XLR-3M connectors. Analog Output levels
are selected between Line, -10, and Mic levels in Main menu >
OUTPUTS. Can be set to send AES3 digital signals (1,2 and 3,4 on L
and R respectively) in Main menu > OUTPUTS. Routing determined in
the Outputs menu. [pin-1 = Ground; pin-2 = hot (+); pin-3 = cold (-).
Unbalance by oating pin-3].
