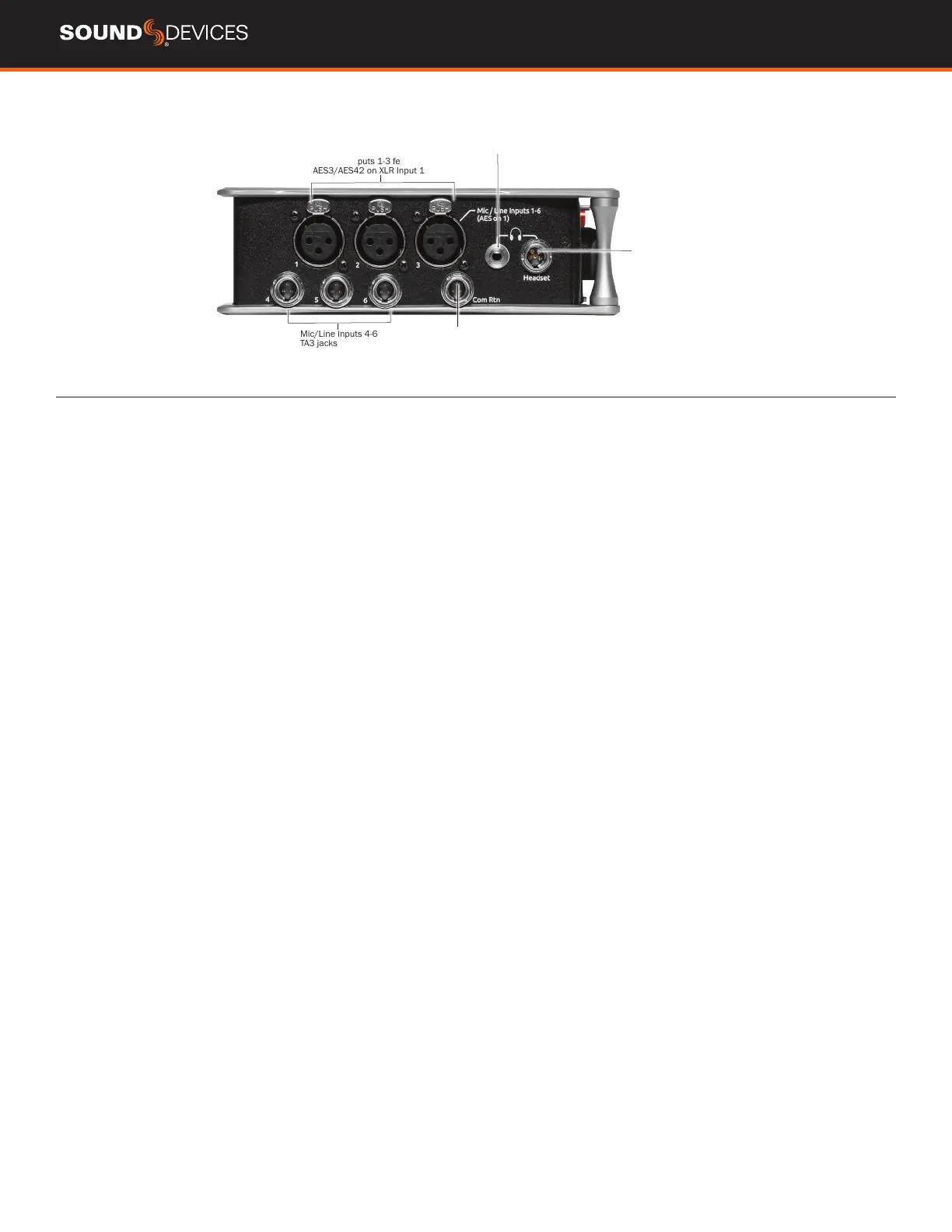

LEFT SIDE PANEL
Mic/Line Inputs 1-3 female XLR jacks
AES3/AES42 on XLR Input 1
Mic/Line Inputs 4-6
TA3 jacks
Com Rtn TA3 jack
Headphone 3.5mm jack
Headphone/
Headset/External Slate
Mic TA5 jack
INPUTS 1-3 FEMALE XLR JACKS Active-balanced analog
microphone or line-level inputs. Input 1 can also accept AES3 or
AES42 signal. [pin-1 = ground, pin-2 = hot (+), and pin-3 = cold (-)].
110 ohm cables should be used for AES3 or AES42 inputs.
MIC/LINE INPUTS 4-6 TA3 JACKS Active-balanced analog
microphone or line-level inputs. [pin-1 = ground, pin-2 = hot (+), pin 3
= cold (-)].
COM RTN TA3 JACK Balanced connection for Com Return audio
input. [pin-1 = Ground, pin-2 = hot (+), pin-3 = cold (-)].
HEADPHONE 3.5 MM JACK Unbalanced output and TRS
headphone output.
Warning! This output can drive headphones to
potentially dangerous levels.
Routing determined in the Outputs
menu. [Sleeve = ground, tip = left, ring = right].
HEADPHONE/HEADSET TA5 JACK Headphone and slate
microphone connections [pin-1 = HP right, pin-2 = HP left, pin-3 =
ground, pin-4 = mic -, pin-5 = mic+].

Sound Devices 833 Specifications

General

Number of Channels	8
Mic Inputs	6
Main Outputs	2
Aux Outputs	4
Headphone Output	1
Bit Depth	24-bit
Timecode	Yes
Dynamic Range	120 dB
Microphone Preamps	6
Analog Outputs	4
Type	Portable Mixer-Recorder
Line Inputs	6
AES Inputs	2
Sampling Rate	up to 192 kHz
Recording Media	SD, SDHC, SDXC
Power	Battery or External DC
Frequency Response	10 Hz to 80 kHz
THD+N	0.005%
Digital Outputs	2
