BLADES- The optional tool box is furnished with a number of different sizes and shapes of blades
for various size sewers and types of cleaning work. (Additional tools are listed on page 13)
Your Spartan blades can be attached to either a 2’ leader cable or a double male coupling. To attach
a cutter assembly the base of the blade holder assembly needs to be seated onto the hex part of the
leader or double male coupling. Next, the proper blade size is placed into the blade holder base.
After inserting the blade, secure with blade retainer, lock washer and nut. Draw up all blades
assemblies tightly with your T-wrench, otherwise vibrating may cause unnecessary loss of blades.
A T-wrench is furnished so you can quickly and conveniently assemble blades. With the blade assembly
attached, your now ready to operate your Spartan machine.
ASSEMBLY OF BLADES TO CABLE
WARNING: Always disconnect power cord before attaching or changing blades.

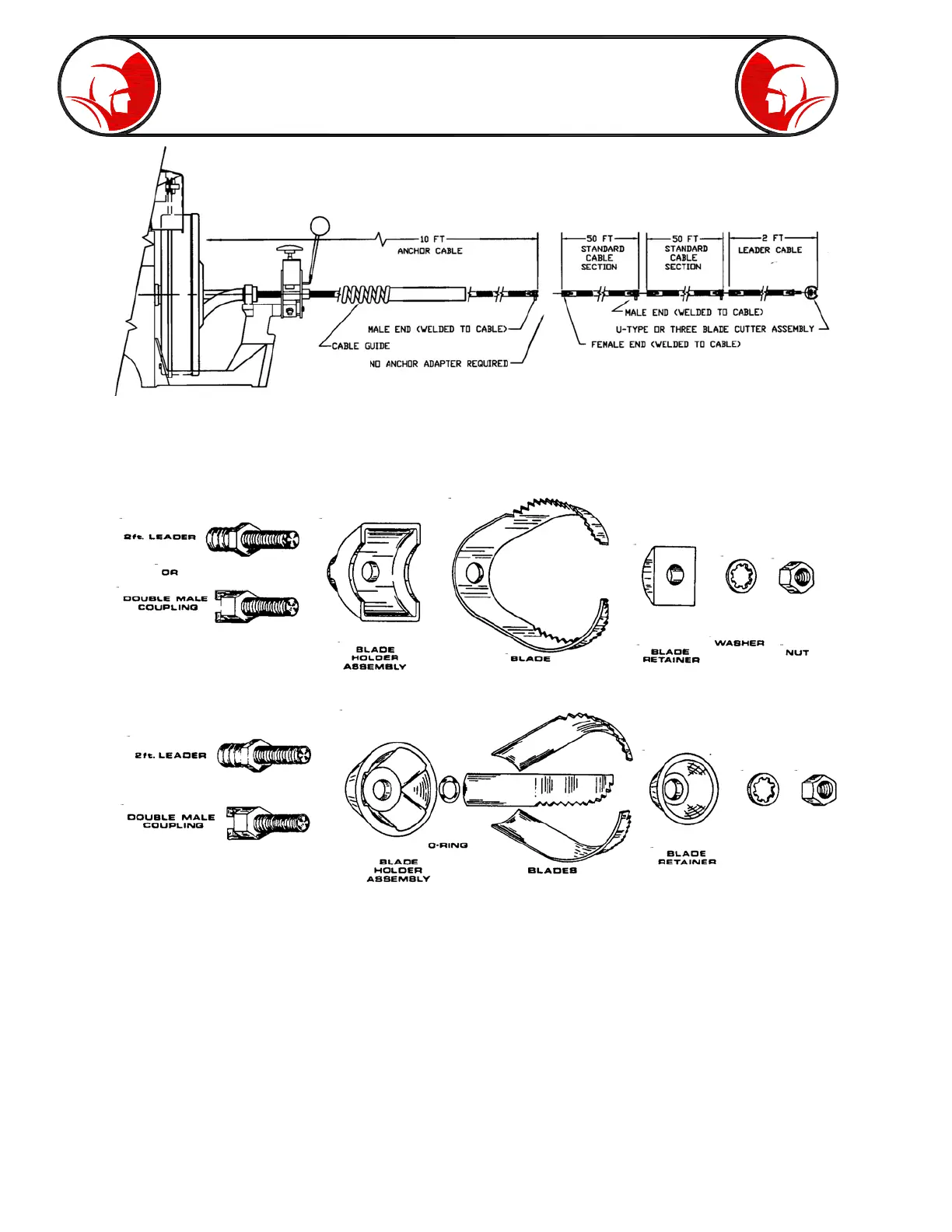

Each U-Type Cutting Assembly consists of:
Each Three-Blade Cutting Assembly consists of:
Figure 6
Figure 7
.66 Magnum Cable
Figure 5
Assembly Instructions (cont.)
To Next Page
