Spartan 1065 - 04217500 Power Feed Assembly

Page 48

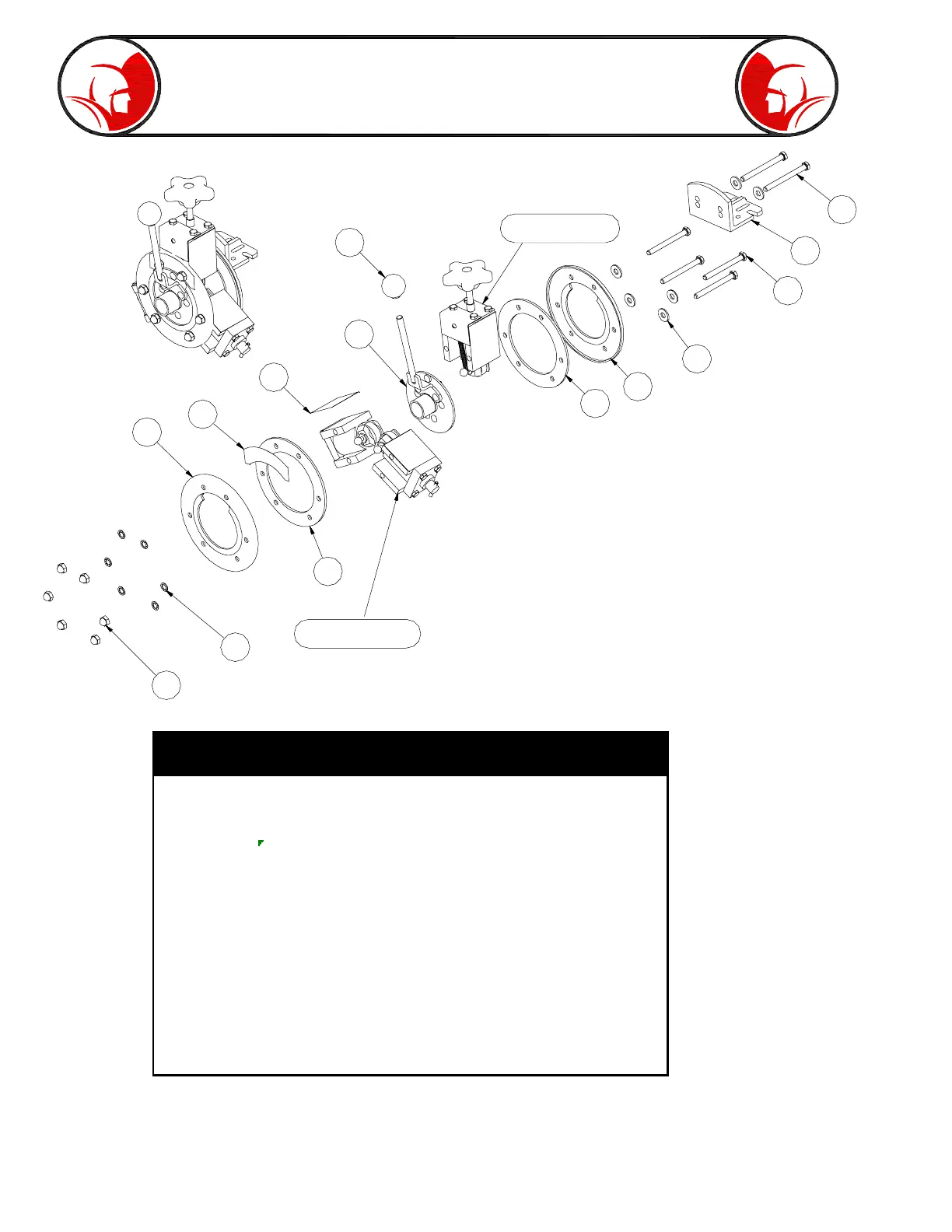

Fig. 4
04217500
Power Feed Assembly
ITEM QTY
PART
NUMBER DESCRIPTION
1 1 02856900 KNOB
3 6 04134900 NUT ACORN CAP 5/16-18
4 1 04220000 DECAL BRG PLATE MOD 75 FEED
5 2 44224100 BEARING PLATE
10 6 00162600 WASHER, FLAT 5/16 USS
12 1 44223900 2001 ACTURATOR ASSY
13 2 04218300 PLATE STATIONARY 75 FEED
14 6 00167100 INTERNAL TOOTH LOCKWASHER
15 2 00169500 SCREW, HEX HD CAP 5/16-18x3-1/2
16 1 44249900 MOUNTING PLATE, MODEL 300/1065
17 4 00480300 SCREW, HEX HD CAP 5/16-18x3-1/4
38 2 44220100 DIAL A CABLE LABEL
FIG 5 1 04224000 BEARING BLOCK ASSY - LONG
FIG 7 2 44219900 BEARING BLOCK ASSY - SHORT
10
17
16
15
FIG 5Reference:
1
38
4
5
14
3
13
FIG 7Reference:
12
13
5
