Disconnect the cable machine from its power source to avoid accidental starting. Pick up the Cable
Safety Guide and place the spring against the hub on the Power Cable Feed and turn it
counterclockwise until the spring rests against the plate behind the hub.
Reconnect the power by plugging in the machine. Insure the electrical switch on the machine is in the
forward position. Insure the adjusting knob on the feed has been tightened until it makes contact with
the cable. Place the lever (actuator assembly) midway between the “N” (Neutral) and “F” (Forward)
position to allow the cable to enter the Cable Safety Guide slowly. Depress the foot pedal to engage
the machine and allow the end of the cable to exit the Cable Safety Guide. Release the footpedal.
Disconnect the machine from its power source, and attach the selected tool to the cable. Move the
machine as close to the entry point of the pipe as possible. The end of the Cable Safety Guide and
attachment should be within inches of the pipe. Reconnect the power.
Warning: Unexpected machine start up can cause death or severe injury.
Disconnect the machine from its power source before installing, servicing or removing the Power
Cable Feed, Cable Safety Guide, cable tools and cutters, or other machine components.
Attaching the Cable Safety Guide
To The Power Cable Feed
!

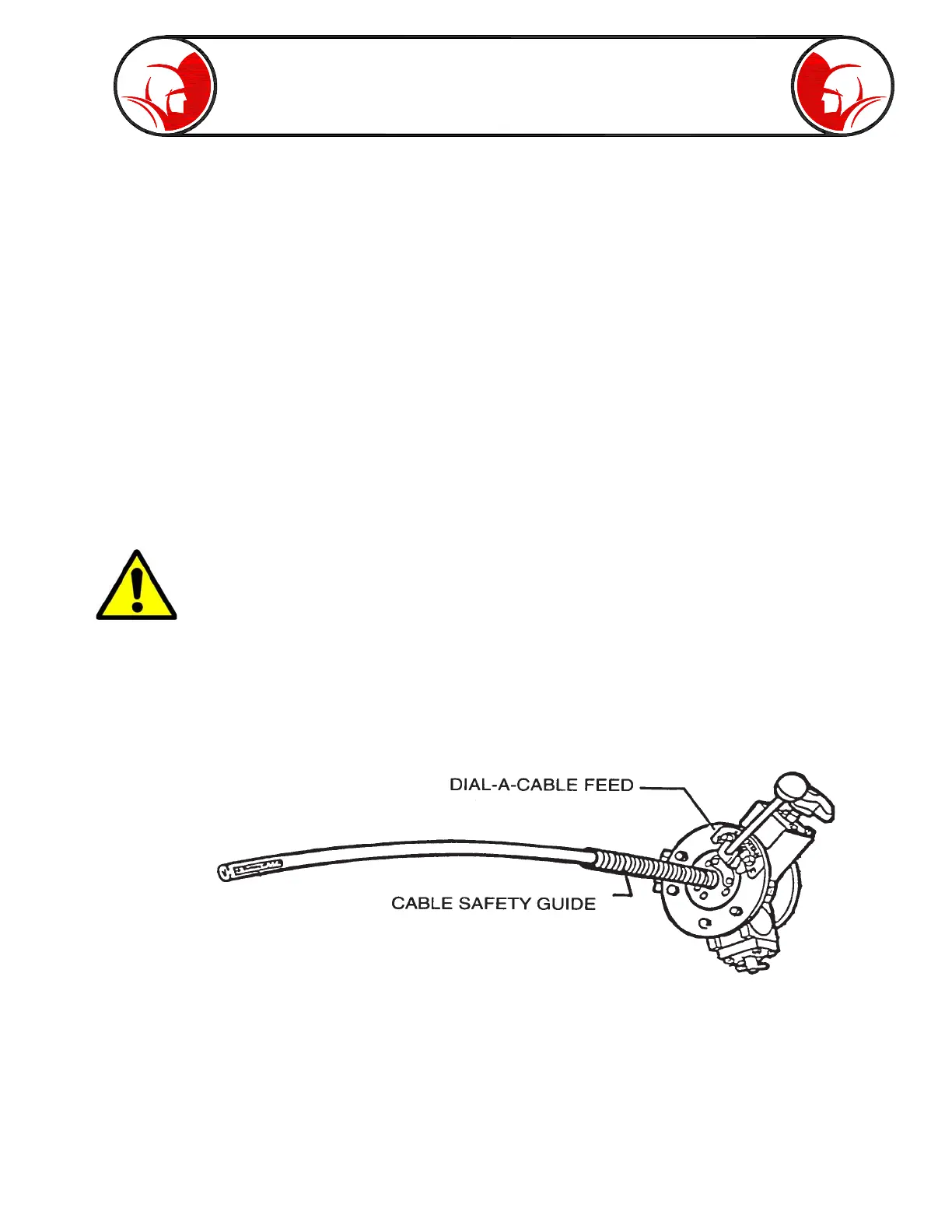

Fig. 1
