Page 53
Installation Instructions
For Model 300
(See: Fig. 4, Fig. 5 & Fig 14)
The following instructions are for manual machines, delete step 1 through 3 when replacing older
power feed units.
1. Remove upper front casting assembly.
2. Install new upper front casting assembly (04202700).

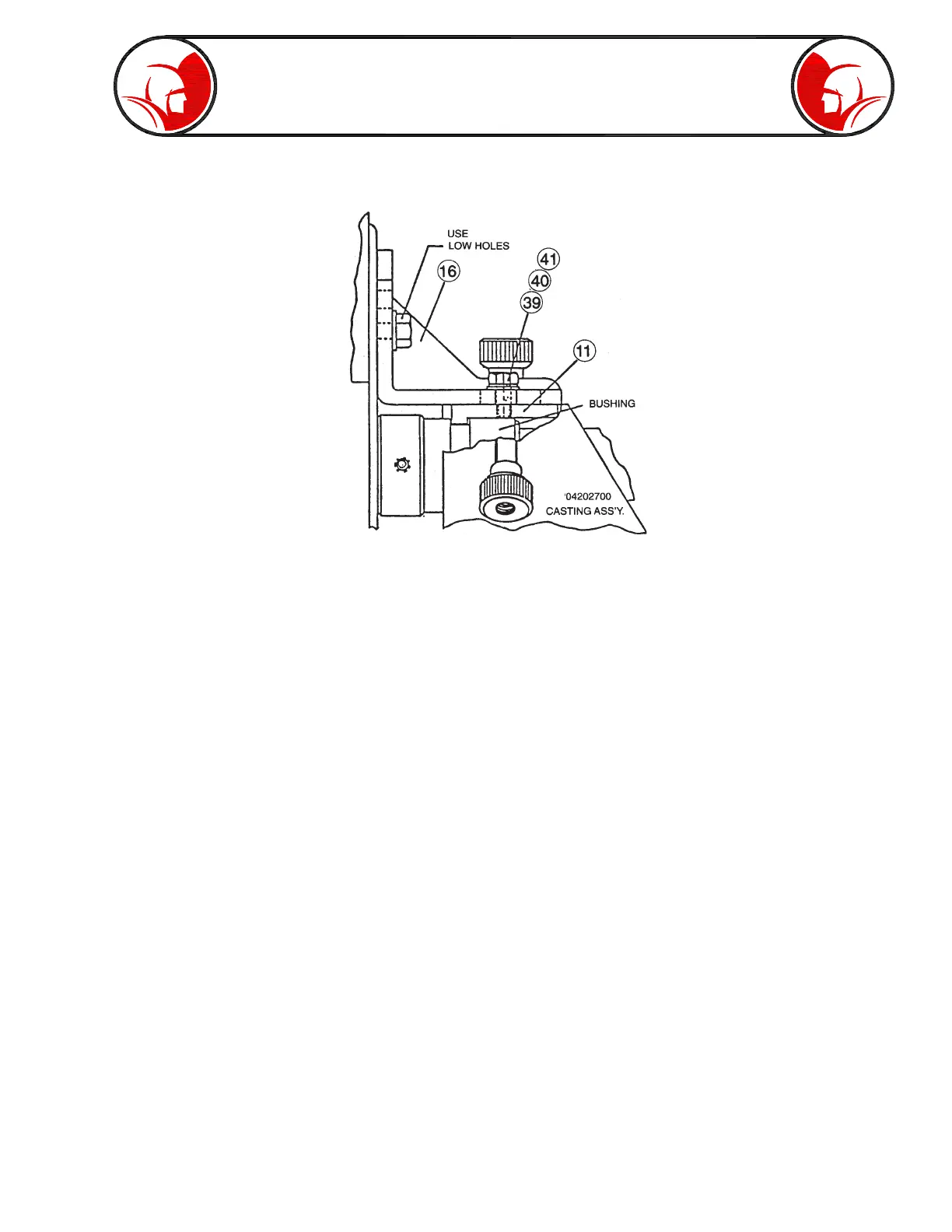

3. Install busing lock (#11) to mounting plate (#16) on drive unit. Use items #39, 40, and 41. Position
as per Fig. 5. Place screws in bushing lock finger tight only.
4. Set Dial-A-Cable adjusters for 3/4” cable size (full open) and turn knob (#18) counter clockwise
(left) to raise upper wheel carrier. Place actuator handle (#12) to “N” neutral position.
5. Place cable through back of power feed while sliding power feed unit over cable into proper
position on upper front casting assembly. Make certain lip of bushing lock engages slot in
distributor arm bushing (Fig. 9). Swing up clamps on upper front casting into slots provided on
mounting plate lock down tight. Now, tighten bushing lock screws.
6. Position cable forward to the point where the smallest diameter of cable will come in contact
with the drive bearings, adjust your Dial-A-Cable for your cable size. Turn knob (#18) clockwise
(right) until contact is made with drive bearing.
7. Installation is complete. Refer to operating instructions for safe operation.
Fig. 9
