Spartan 1065 - 04224000 Bearing Block Assy (Long)

Page 49
ITEM QTY
PART
NUMBER DESCRIPTION
6 1 03312001 Nut Kep #8-32 Zinc Plated
7 1 44221900 2001 Cover Spring
8 1 01921801 Screw, Mach Rd Hd Sl 8-32 x 1/2
9 1 44230100 2001 Spring Feed Ext
18 1 03415800 Knob and Screw Assy
19 1 04219000 Cap End Weld Assy 75
20 4 00113700 Screw, Hex Hd 1/4-20 X 3/4
22 1 04220100 Spring Hvy Duty Mod 75 Feed
23 1 04217900 Block Bearing Long Mod 75 Feed
25 1 03415700 Bushing & Ball Assembly
FIG 6 1 44119600 Wheel Carrier Body Comp (Long)
04224000

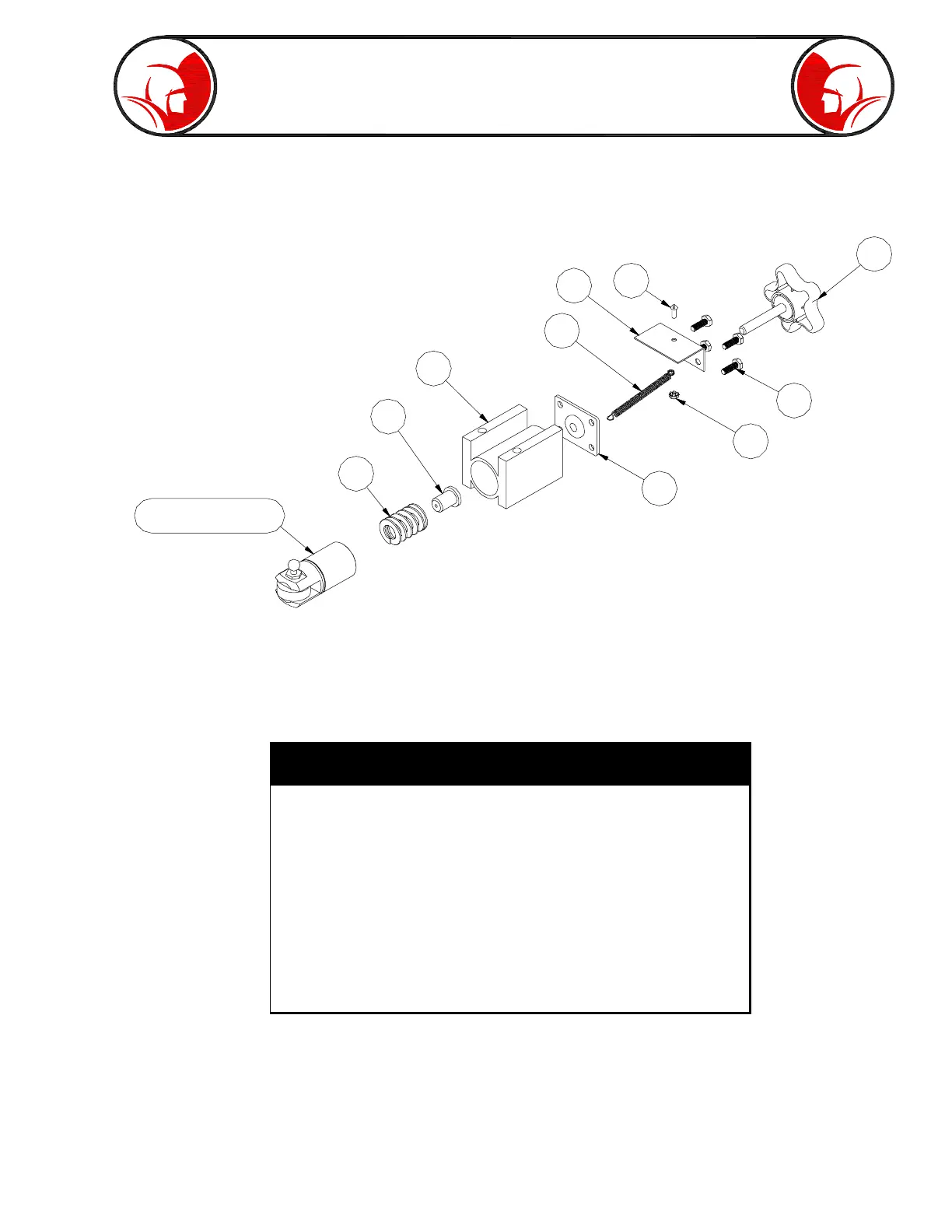

Bearing Block Assy (Long)
6
18
7
8
9
23
FIG 6Reference:
22
25
19
20
Fig. 5
