Spartan 1065 - Disassembly of Long Bearing Blocks

Page 58
1. Remove the two (2) screws #20 holding spring cover #7 to top of long bearing block #23. Leave
remaining two (2) screws.
2. Pull wheel carrier body #32 from block #23 with cove #7 and spring #9 attached.
3. Remove spring #22 and ball and bushing assembly #25 from long wheel carrier body.
4. Remove retaining ring #28 from drive pin #24 and pull pin from carrier body with feed spring and
cover attached. This will release the drive roller #26 and two (2) spacers #27. Remove “O” ring
#30 from carrier body groove, use care not to damage same.
5. Unscrew knob #18 and remove two (2) remaining screws #20 from end cap #19.

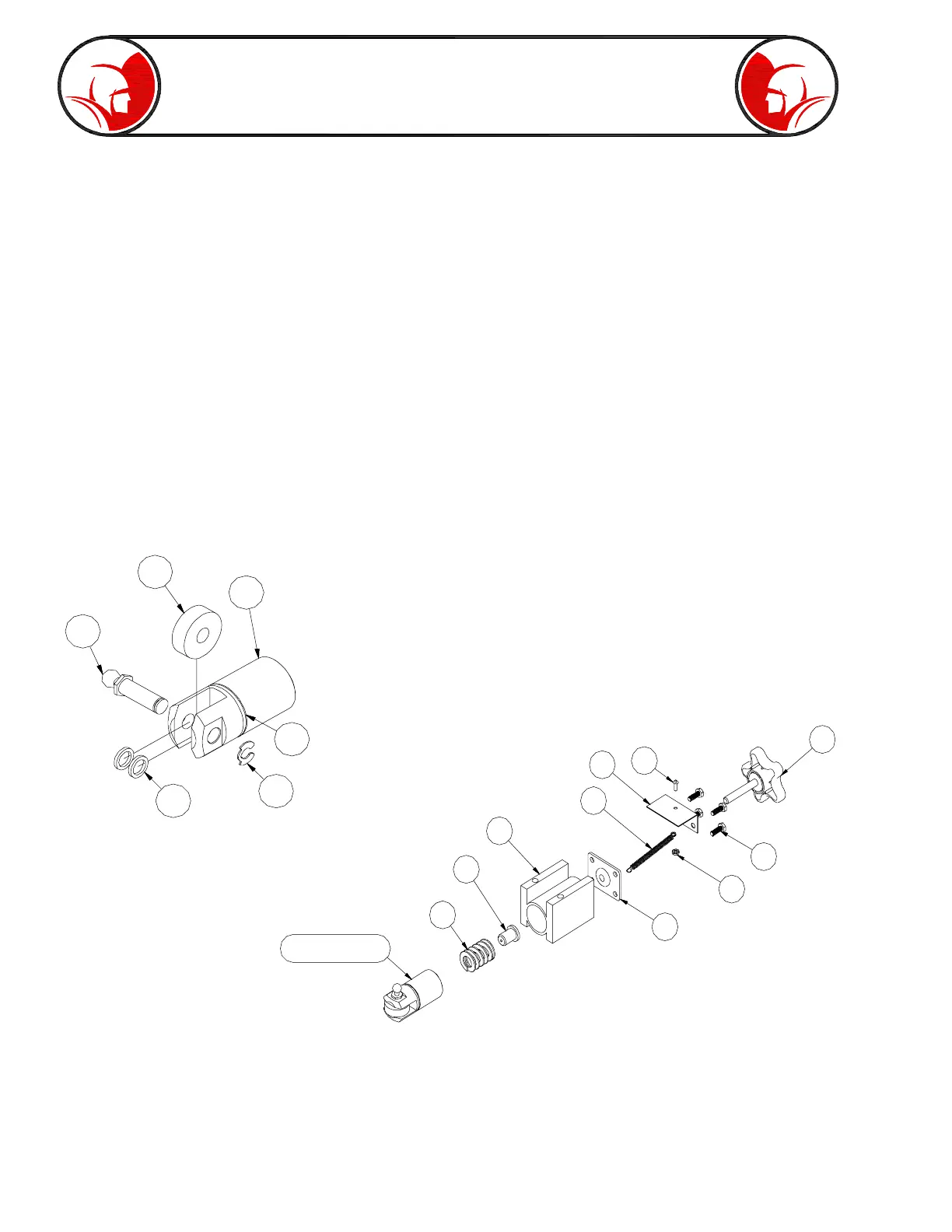

Disassembly of Long Bearing Blocks
Fig. 13
Fig. 12
(See: Fig.12 and Fig. 13)
21
26
24
27
28
30
6
18
7
8
9
23
FIG 6Reference:
22
25
19
20
