Spartan 1065 - Disassembly of Short Bearing Blocks

Page 57
Disassembly of Short Bearing Blocks

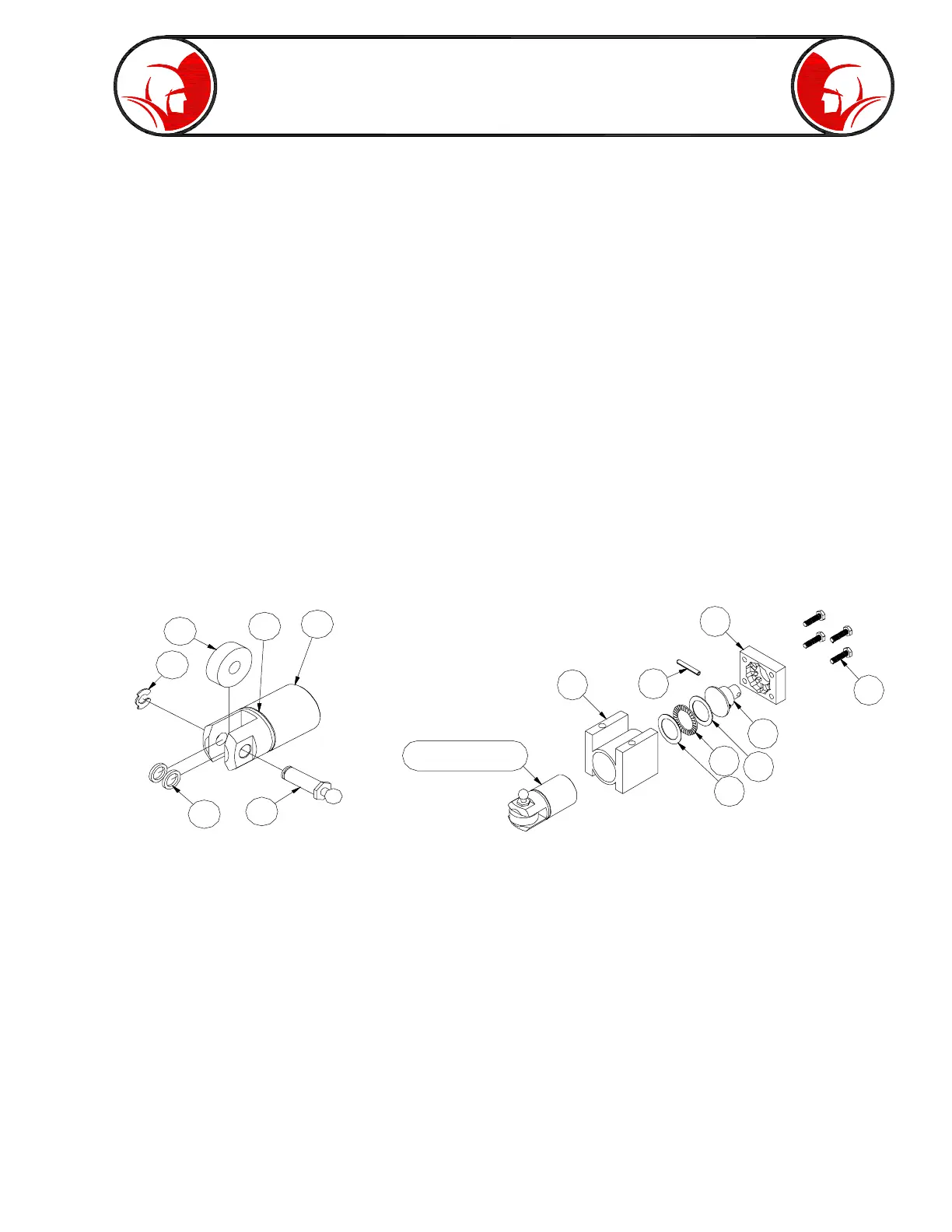

(See: Fig.10 and Fig. 11)
1. Pull wheel carrier bodies #21 from blocks #29.
2. Remove the two (2) thrust races #33 and one (1) thrust bearing #34 from each unit.
3. Remove four screws #31 holding Dial-A-Cable assembly #35, 36, and 37 to bearing block #29.
(Do not disassemble unit)
4. Remove retaining rings #28 from drive pins #24 and pull pins from carrier bodies #32. This will
release the drive roller #26 and two (2) spacers #27. Remove “O” ring #30 from carrier body
grooves, use care not to damage same.
Fig. 10
Fig. 11
32
26
28
27
24
30
33
36
35
37
FIG 8Reference:
29
34
33
31
