Specialized CHISEL - Main Pivot Bearings; Link Bearings; ICR Funnel and Mudguard

15

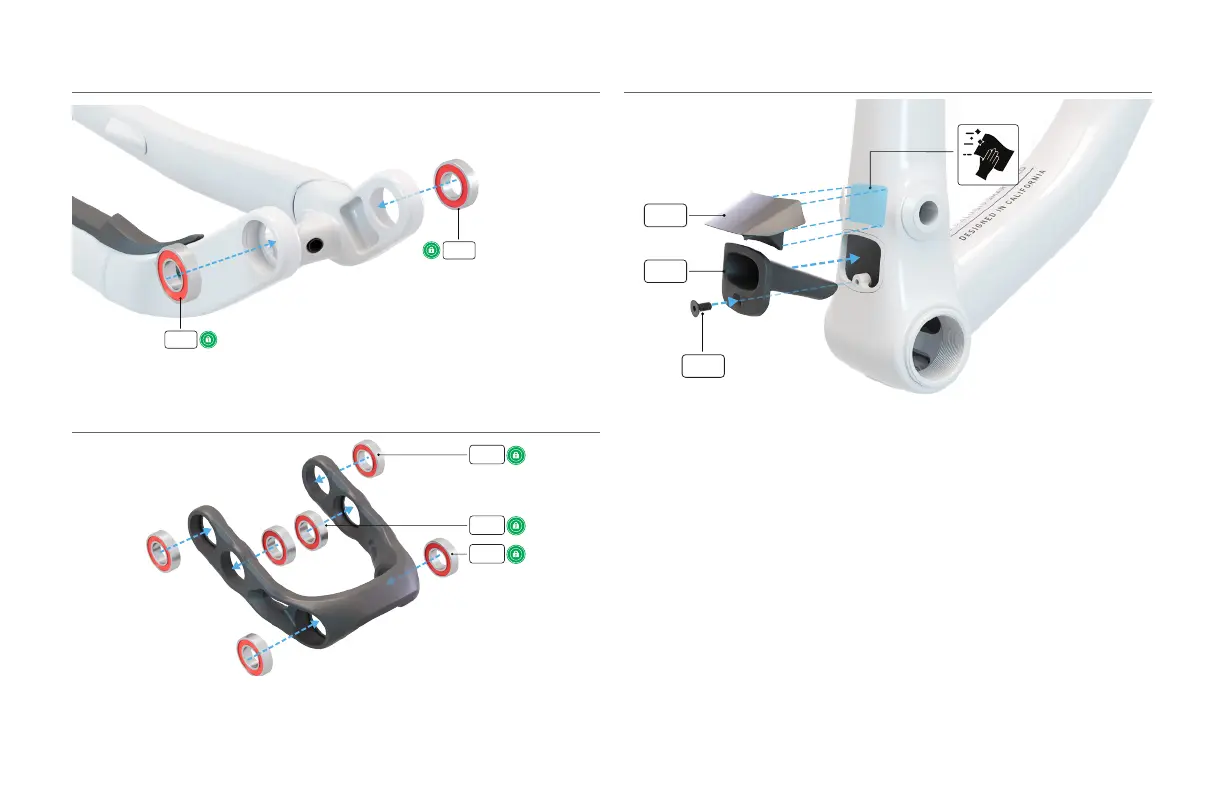

5.1.1 MAIN PIVOT BEARINGS
A
A
 Apply a thin layer of green Loctite 603 to the outside diameter of the
bearings (A), and press them into their respective bearing bores.
5.1.2 LINK BEARINGS
B
B
B
 Apply a thin layer of green Loctite 603 to the outside diameter of the
bearings (B), and press them into their respective bearing bores.
5.1.3 ICR FUNNEL AND MUDGUARD
C
A
B
 Insert the ICR funnel (A) into the frame.
 Thread the mounting bolt (B) into the frame. Using a torque wrench and
2.5 mm hex bit, torque the bolt to 1.5 Nm / 13 in-lbf.
 Make sure the area above the mounted ICR funnel is free of dirt.
 Peel the self adhesive backing from the mudguard (C). Position the
mudguard above the ICR funnel and then press firmly onto the seat
tube.
